G147 3-70
SM
4.

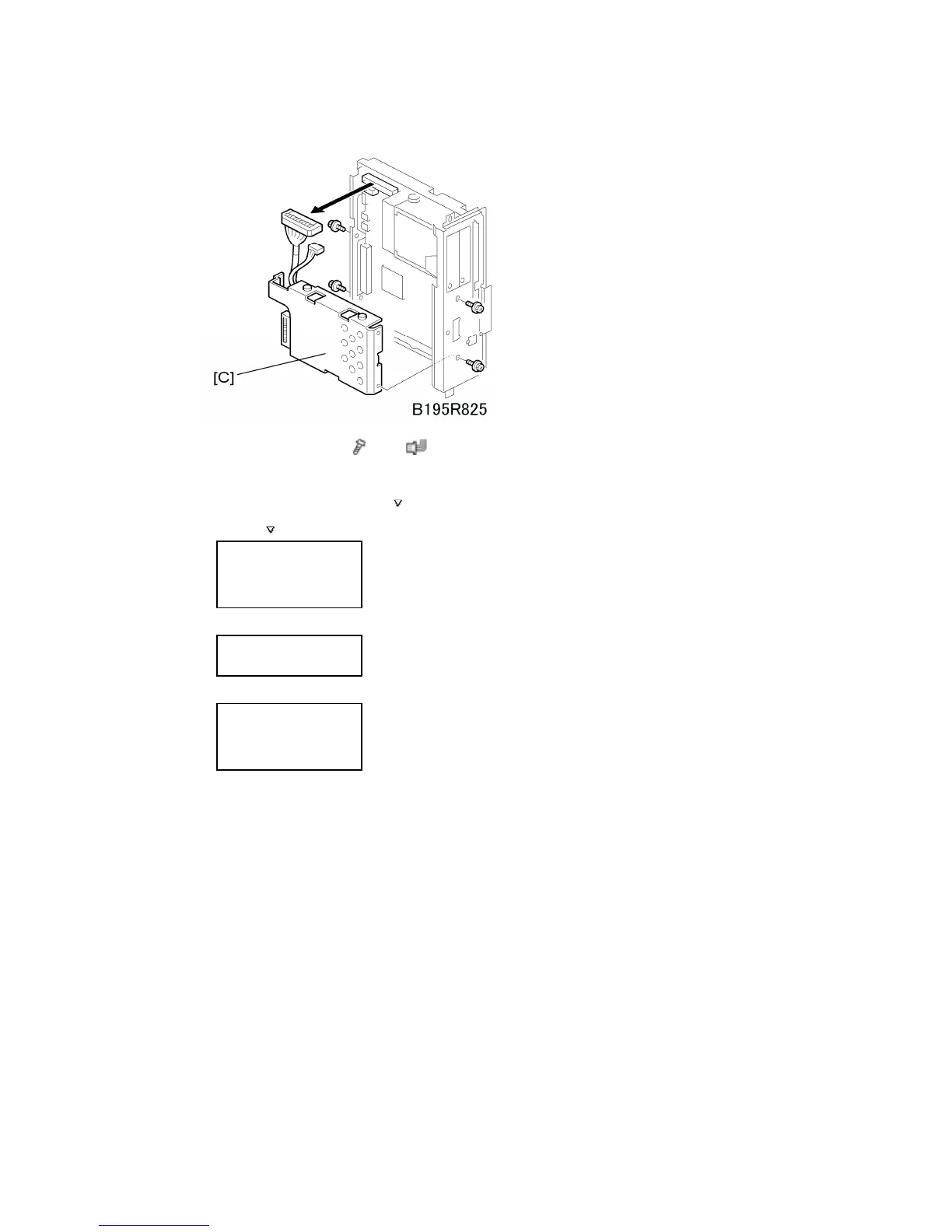

HDD unit bracket [C] (
x
4,
x
2)
5.
Format the HDD.

Push [Menu], then push
to select "Maintenance" and press [#Enter].

Push
to select "HD Format" then press [#Enter].
HD Format
Press # to start

Press
[#Enter].
Formatting…
Completed
Restart printer

Turn the main power switch off/on.
