SM 3-11 G147
Replacement
Adjustment

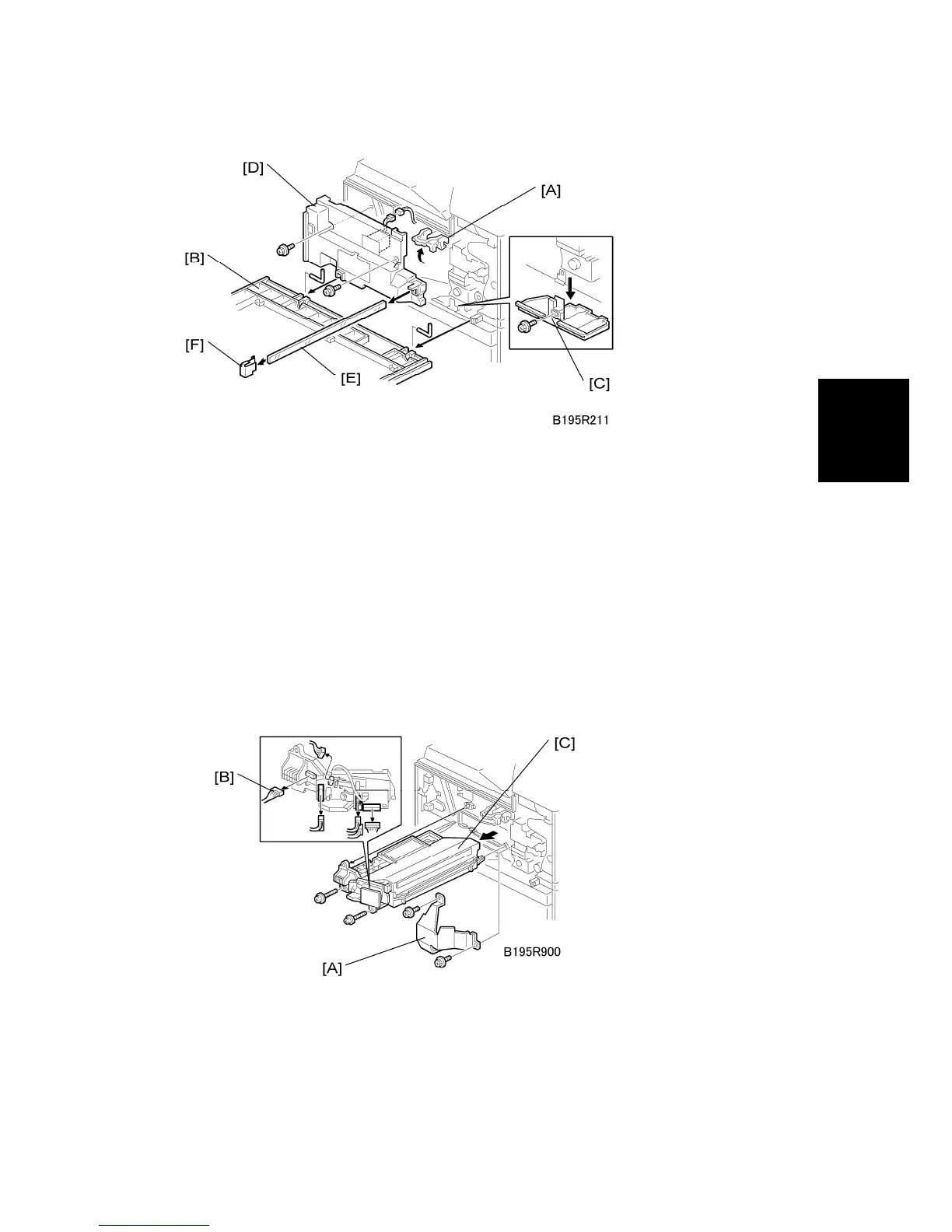

1. Open the front door.
2. Raise the toner bottle holder handle [A].
3. Remove front door [B] (Pins x2)
4. Remove toner collection plate [C] ( x).
5. Remove inner cover [D] ( x 2, x 1)
6. While pressing in the top leaf on the left side, remove the shield glass cover [E].
7. The shield glass cover holds the shield glass firmly in place and prevents it from
accidental removal.
8. When re-attaching the shield glass cover, the top leaf lies on top of the plastic
form.
9. Shield glass clip [F]
10. Shield plate [A] ( x 2)
11. While holding the LD board securely, disconnect the laser unit [B] ( x 6, Flat
film cable x1)
12. Hold the laser unit [C] by its casing, slide it out of the machine ( x 2)
To Next Page
