Scanner
D117/D118 4-38 SM
8. Carriage
 Wipe off oil adhered disproportionately to the carriage after the carriage is replaced.
 Never wipe off the oil on the shaft of the carriage.
Reinstalling the Carriage

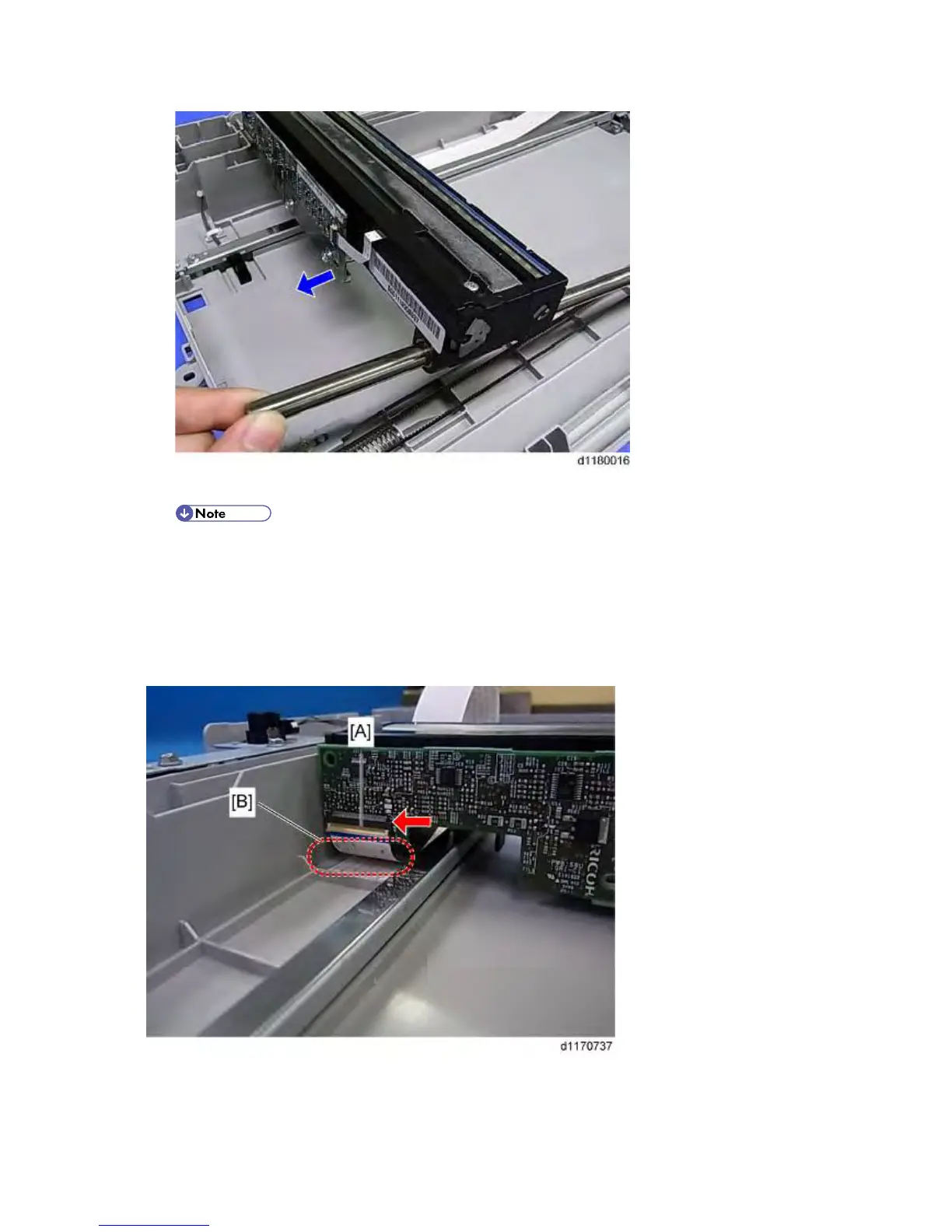

Make sure that the flat cable of the carriage is correctly connected and routed referring to the
following points.
 The flat cable [A] must be connected straight, and not at an angle.
 The flat cable is not sagging and does not drag on the bottom of the scanner unit [B].
