ARDF (D606)
D117/D118 2-40 SM
2.6.2 INSTALLATION PROCEDURE
 Unplug the copier power cord before starting the following procedure.

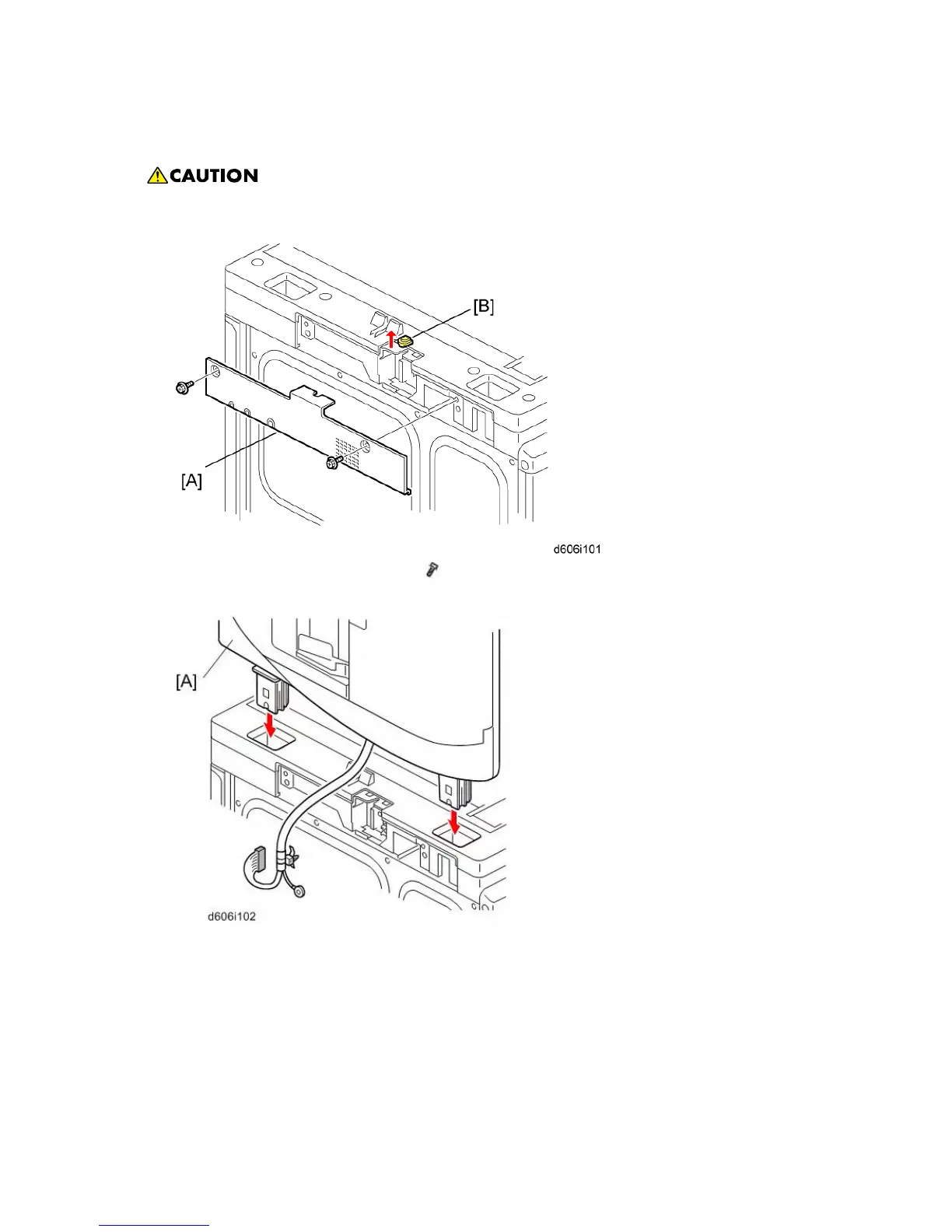

1. Remove the strips of tape on the ARDF.
2. Remove the scanner rear cover [A] (
x 2).
3. Remove the harness cap [B].
4. Mount the ARDF [A] on the copier as shown.
