CARRIAGE UNIT
J001/J003 6-8 SM

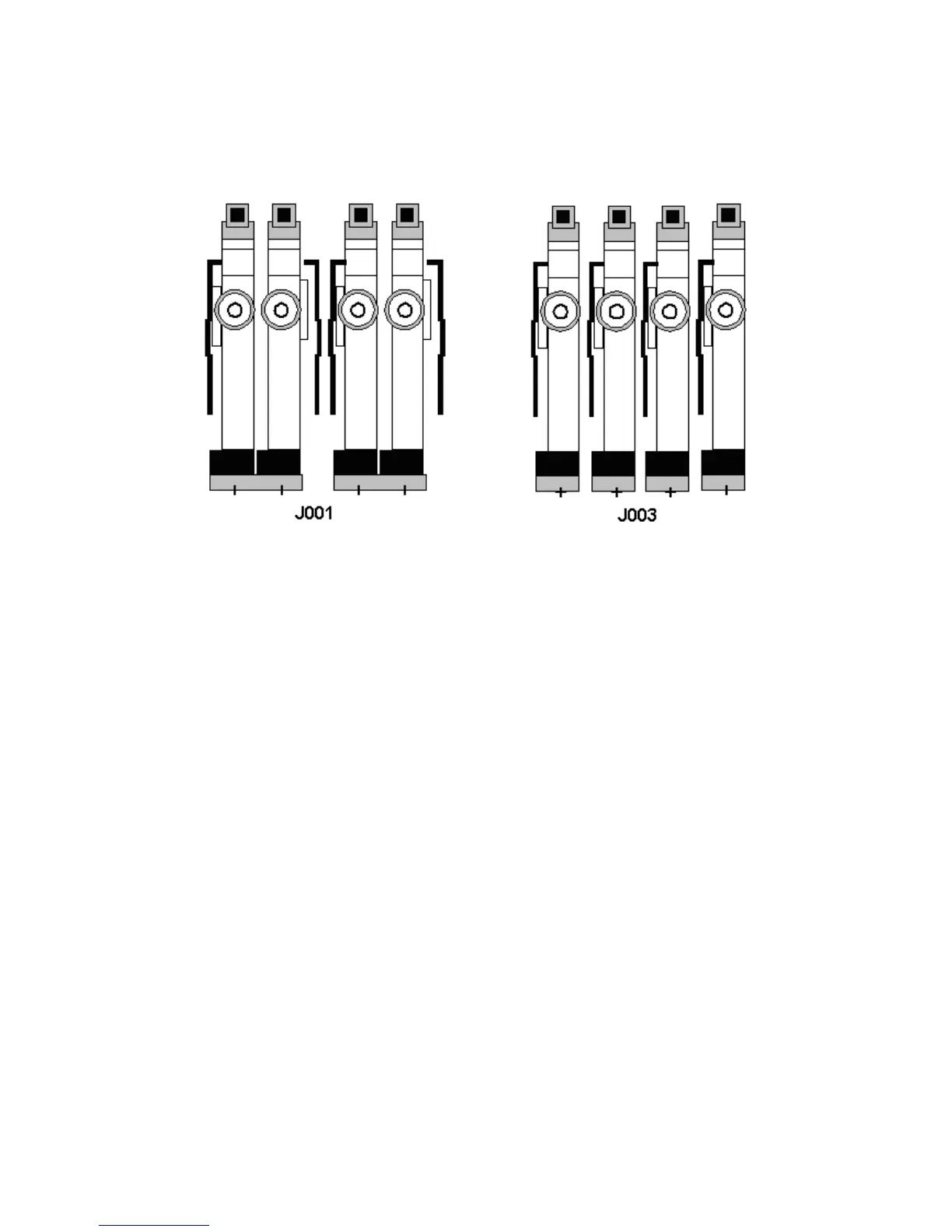

The basic operation of the print head tank is identical in the J001 and J003.
However, the design of the mechanism is different for these printers.
On the J001 there are two combined units.
• Two print head tanks [A] are mounted on one print head [B].
• Each print head tank unit feeds to its own nozzle array [C] and [D] (one for each
color.
• Each print head tank holds 4.3 ml of ink.
On the J003 there are four independent units.
• Each print head tank [E] has an independent print head [F] with a nozzle array
[G].
• Each print head tank holds 4.6 ml of ink.
G707D909.WMF
[A]
[B]
[C] [D]
[E]
[F]
[G]
