Component Removal
SM 3-23 J007/J010/J011
J007/J010/
J011
Item
Case
1
Case
2
Related SP,
UP Settings
Reset
Procedure
Comment
Print Head Gap
Adjustment
YES NO
User Menu
"Maintenance"
Do some test
prints and
adjust.
This setting can be
done with one
execution of
SP5102 for all
print heads.
LF Adjustment YES NO
User Menu,
"Maintenance"
Do some test
prints and
adjust.
Registration
Adjustment
(Vertical/Horizontal)
YES NO
User Menu,
"Maintenance"
Do some test
prints and
adjust.
Print Gamma YES NO SP3300-3303
Enter the
number
recorded on the
print head cover.
This setting can be
done with one
execution of
SP5102 for all
print heads.
Ink Collection Tank
Replace
YES NO --- ---
Flushing Unit
Replace
YES NO --- ---
The software
counts for these
items are lost after
NVRAM
replacement and
cannot be reset.
Therefore, these
items must be
replaced.

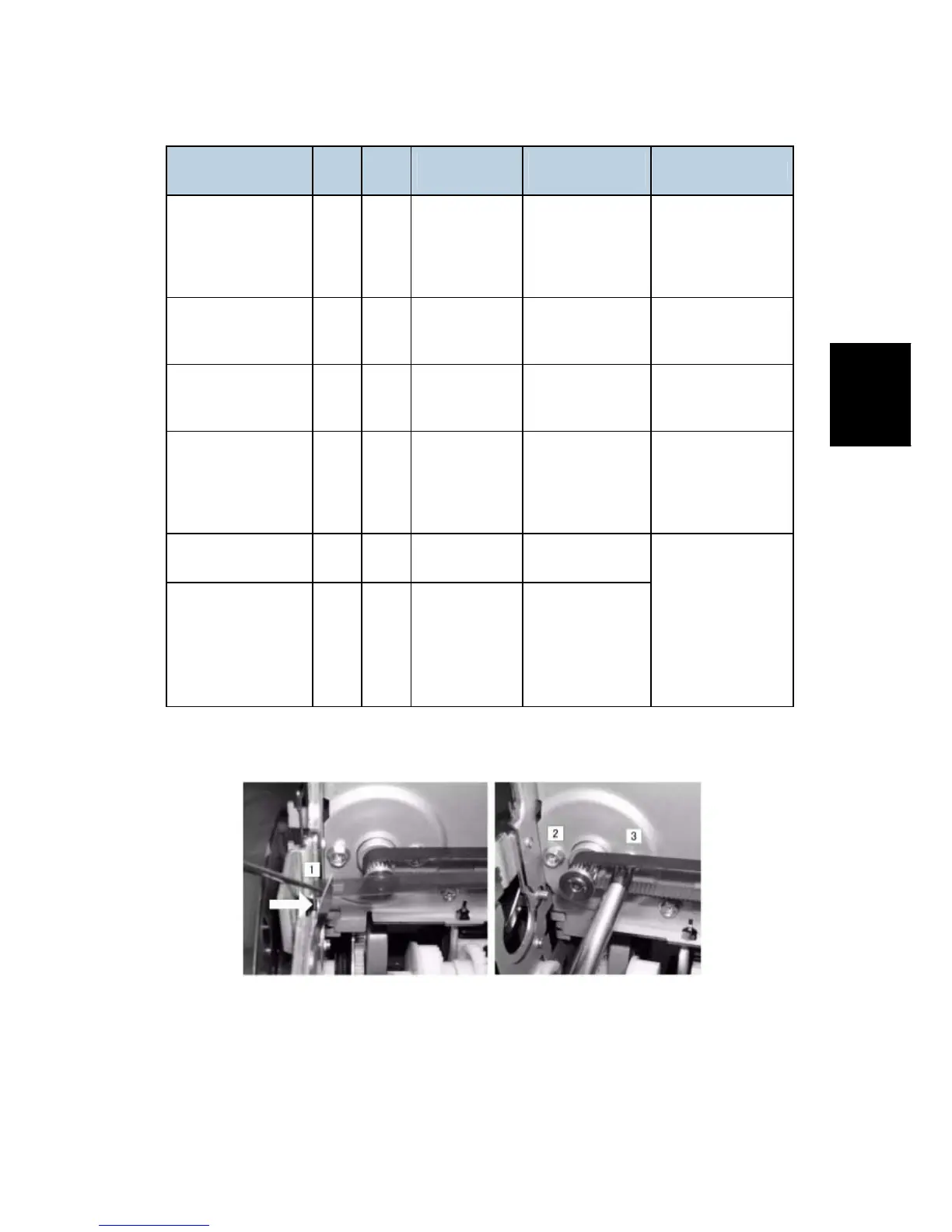

3.4.6 HORIZONTAL MOTOR
1. Push the leaf spring [1] to the right to release pressure on the horizontal
encoder strip, then disconnect both ends of the strip and remove it.
2. Remove screws [2] and [3].
