Component Removal
J007/J010/J01
1 3-28
SM

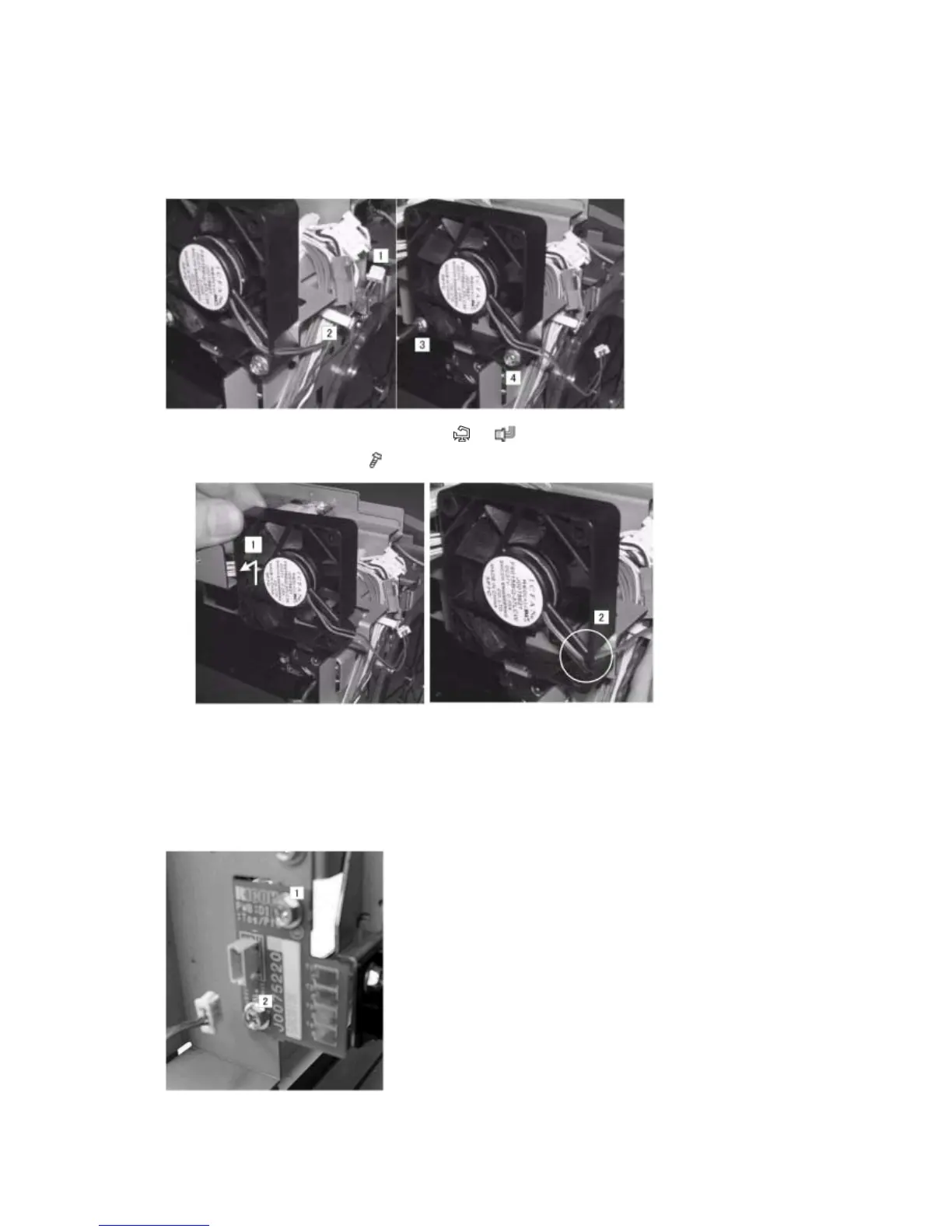

3.4.10 COOLING
FAN
1.
Disconnect the fan harness [1], [2] (
x1,
x1)
2.
Remove screws [3], [4] (
x2)
3.
Remove the cooling fan [1].
Reassembly
Make sure that the harness is set in th
e gap [2] before you reconnect the motor
.
3.4.11
DUPLEXER DETECTION BOARD
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
