DUPLEX UNIT (OPTION)
J001/J003 6-52 SM
6.11.5 BYPASS

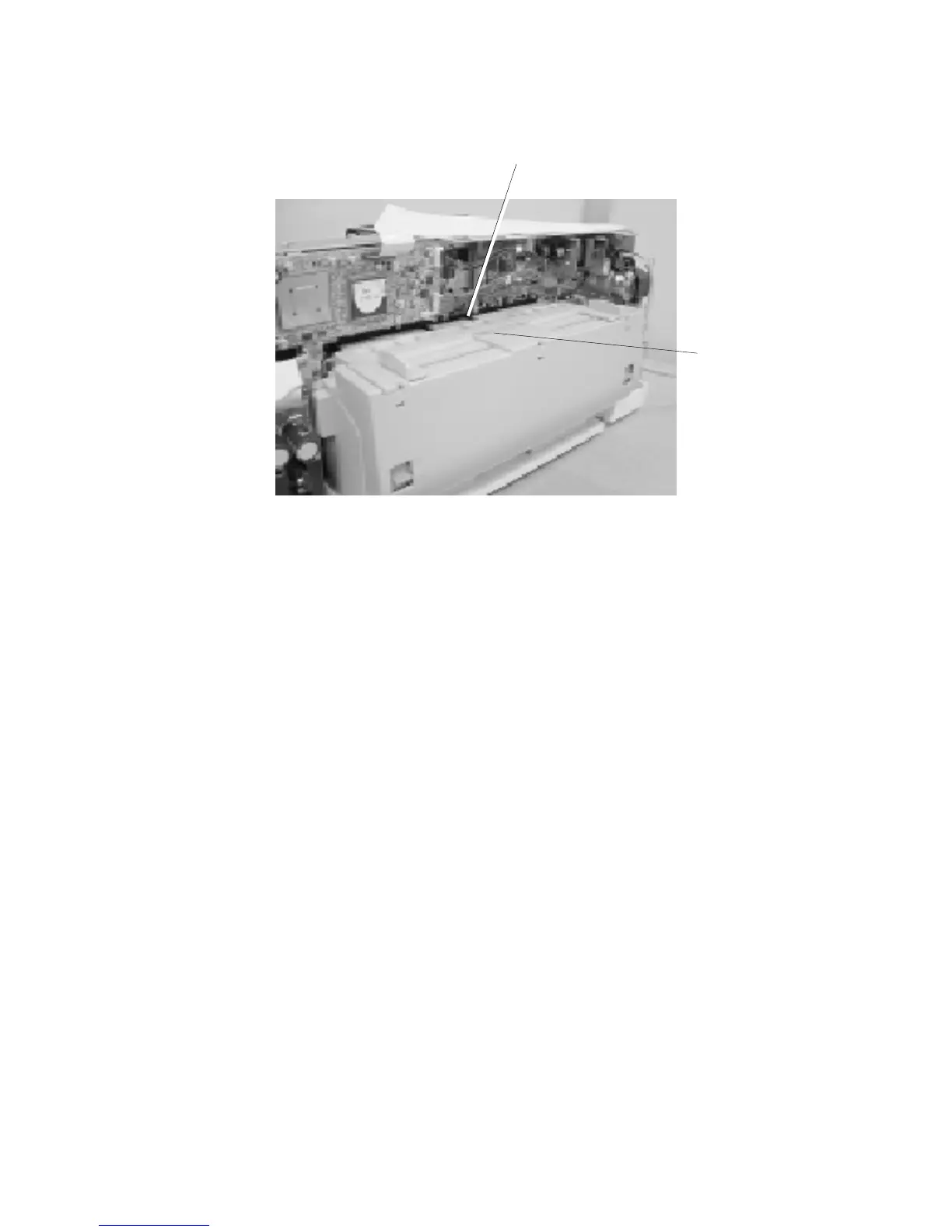

When the Duplex Unit is installed on the back of the printer (J001), the top of the
Duplex Unit [A] is used as the bypass tray.
The bypass tray cannot hold stacks of paper. Paper can only be fed one sheet at a
time.
You must wait for instructions from the printer drive to load paper when a print job
is set up to run from the bypass tray.
The bypass set sensor [B] detects the sheet and signals the printer to start the
paper feed from the bypass tray.
[A]
[B]
