REPLACEMENT AND ADJUSTMENT
SM 7 J006
J006

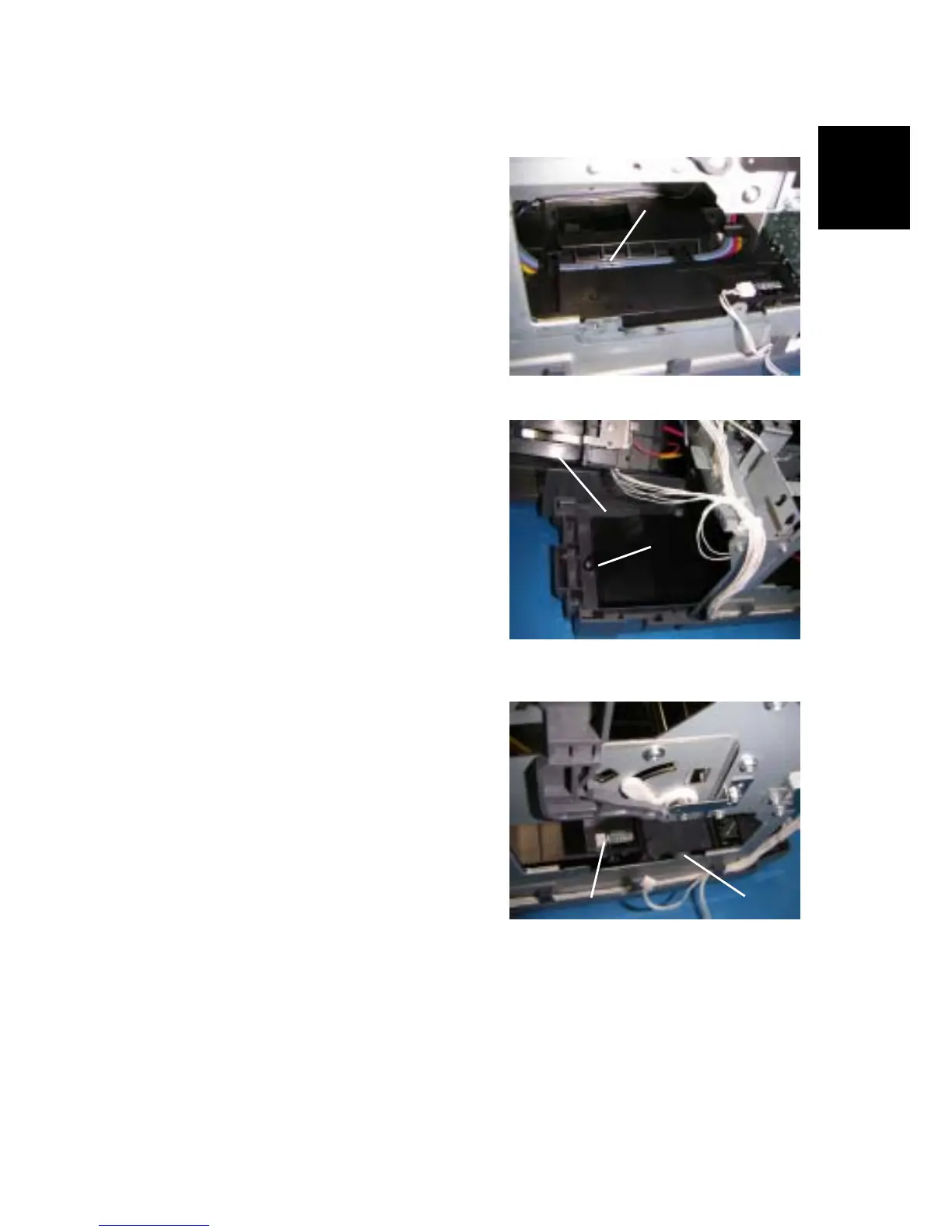

9. Release the ink supply tubes [A] from
the clamps on the back of the ink
supply unit.
Important: Reconnect the tubes in
order from left to right: K, C, M, Y
10. Pull out the ink supply unit [A].
11. Remove the screw [B] of the waste ink
collection unit.
12. Disconnect the full sensor [A] of the
waste ink tank.
13. Raise the waste ink suction unit above
the boss [B] on the frame. Then pull it
out of the printer.
[A]
[A]
[B]
[A]
[B]
To Next Page
