Removing the Covers
J007/J010/J011 3-12 SM

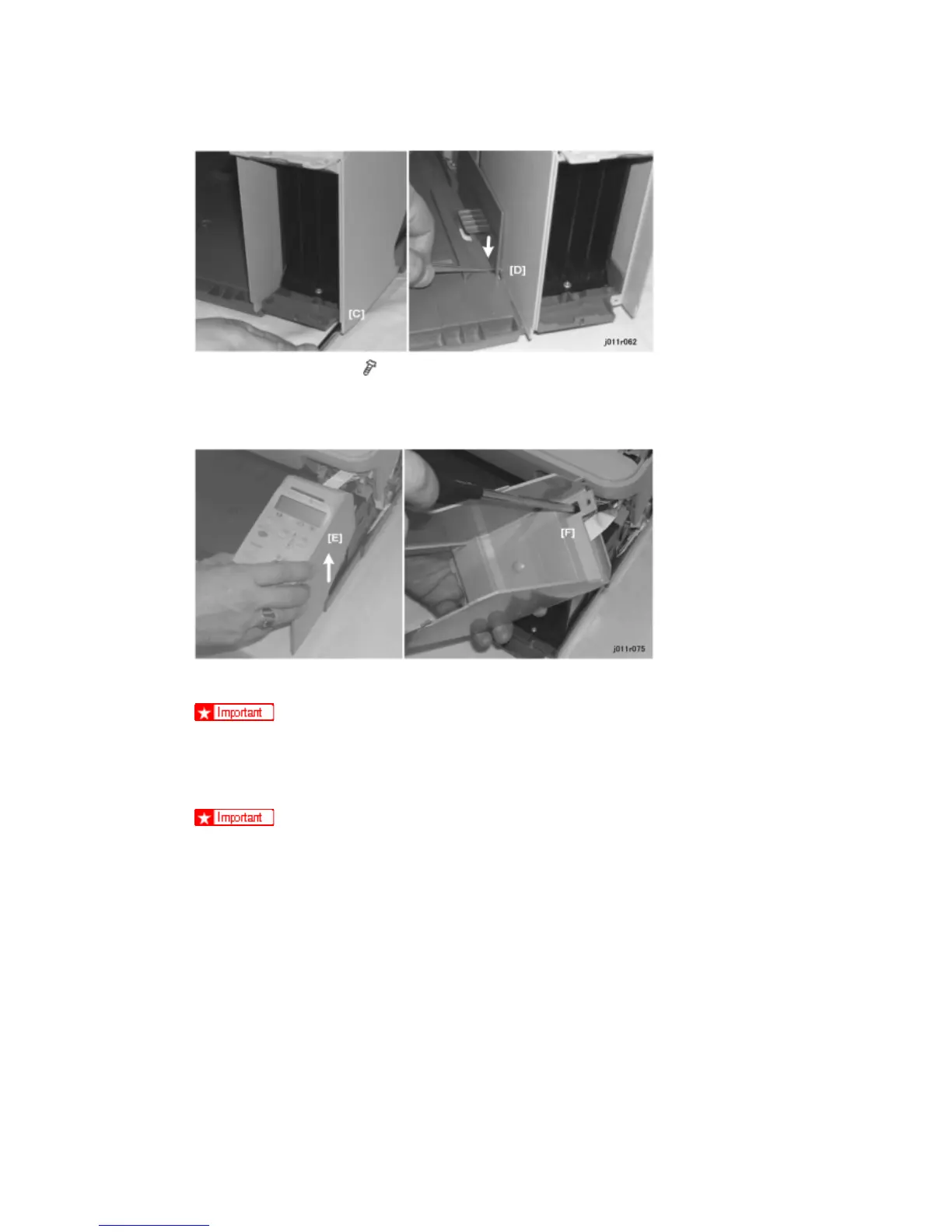

5. Remove the screw [C] (
x1)
6. Use a small screwdriver to depress the pawl [D] to release the left side of the
cover.
7. Lift up the ink cartridge compartment cover [E].
The operation panel is connected by a fragile FFC (flat film connector).
Do not disassemble the operation panel unless you are replacing it
8. Turn over the cover and remove the screw [F].
The operation panel of the J011 is fastened with two screws. Remove both
screws.
