RIGOL Chapter 14 Store and Recall
14-2 MSO2000A/DS2000A User’s Guide
Storage System
Press Storage to enter the store and recall setting interface.
This oscilloscope provides a USB Host interface at the front panel to connect USB
storage device for external storage. The USB storage device connected is marked as
“Disk D”. The internal memory (Local Disk) of the instrument can store 10 setting
files, 10 reference waveform files and 10 mask files of the Pass/Fail test. In addition,
for MSO2000A-S and DS2000A-S, the internal memory can also store 10 arbitrary
waveform files. Below is the disk management interface.

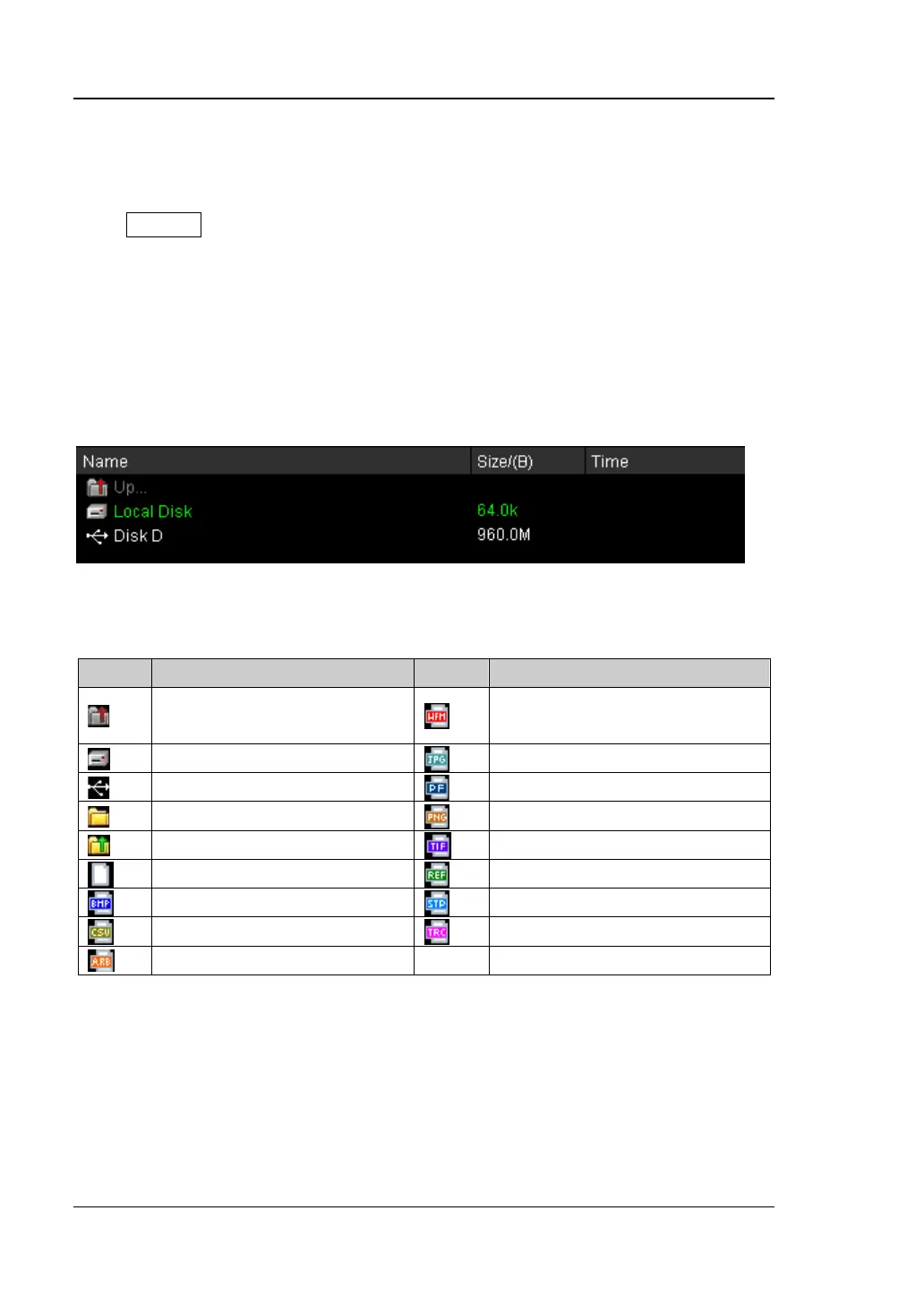

Figure 14-1 Disk Management Interface
Table 14-1 Probable Icons
Icon Description Icon Description
Return to the previous disk
management interface
Waveform File
Local Disk Memory
JPEG File
External USB Storage Device
Pass/Fail Mask File
Folder PNG File
Return to the previous folder TIFF file
Unknown File Reference Waveform File
Bitmap File Setting File
CSV File Trace File
ARB File -- --
