Rigol DS2302A User Manual

RIGOL Chapter 16 Remote Control
MSO2000A/DS2000A User’s Guide
16-8
Remote Control via GPIB
1. Connect the device
Use the USB to GPIB interface converter to extend a GPIB interface for the
oscilloscope. Then connect the oscilloscope to your PC using a GPIB cable.
2. Install the driver of GPIB card
Install the driver of the GPIB card which has been connected to the PC correctly.
3. Set the GPIB address
Set the GPIB address of the oscilloscope according to the description in “GPIB
Address”.
4. Search for device resource

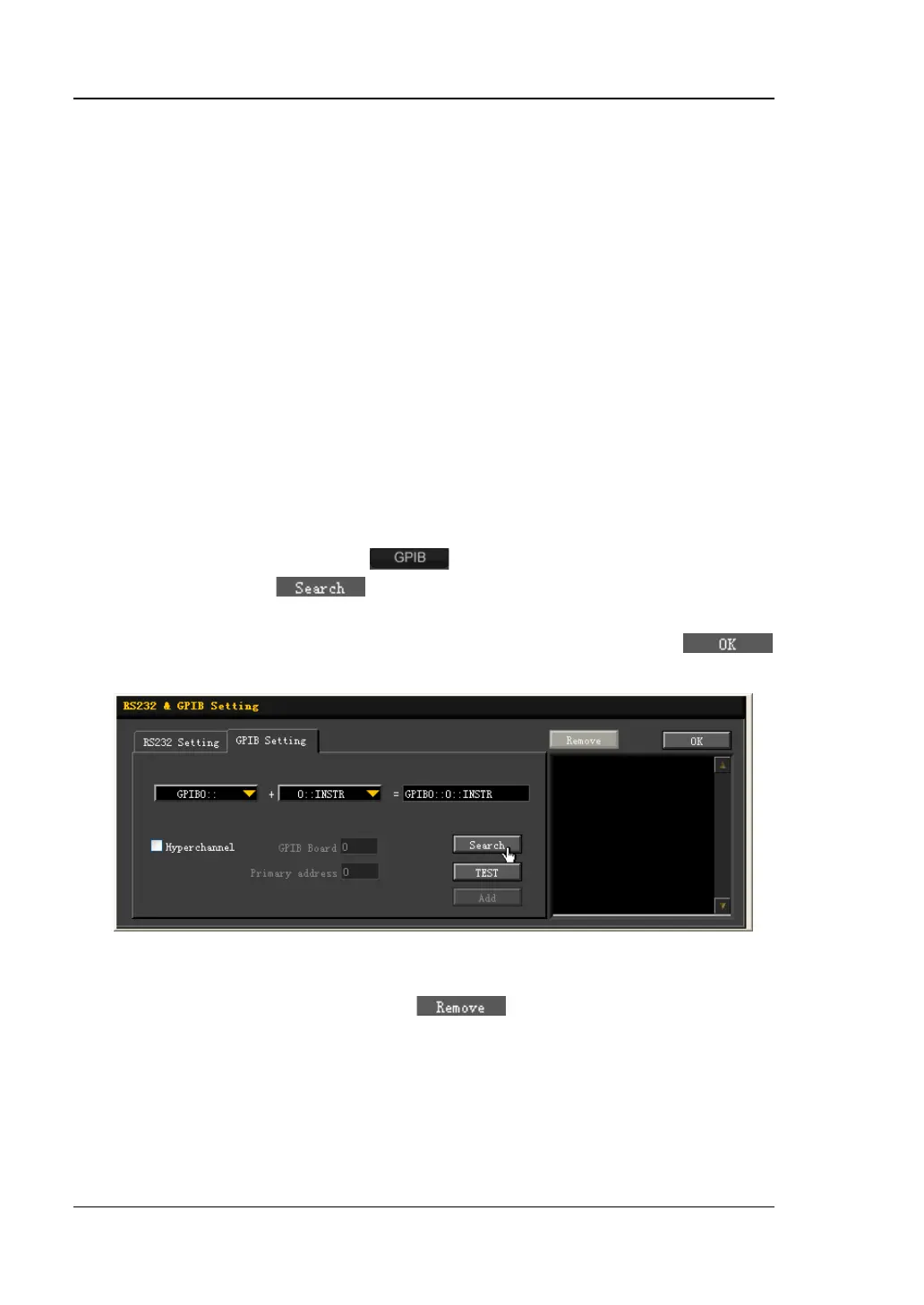

Start up Ultra Sigma and click
to open the panel as shown in the
figure below. Click
and the software will search for the instrument
resources currently connected to the PC via the GPIB interface. The instrument
resources found will be displayed on the right side of the panel. Click
to add the resource.
Note: If you want to remove the unwanted resource, click the corresponding
resource name to select it and click
.
If resources cannot be found automatically:
 Select the GPIB card address of the PC from the dropdown box of “GPIB0::”
and select the GPIB address set in the oscilloscope from the dropdown box
of “0::INSTR”.
