Chapter 1 Quick Start RIGOL
MSO2000A/DS2000A User’s Guide 1-11
Rear Panel Overview

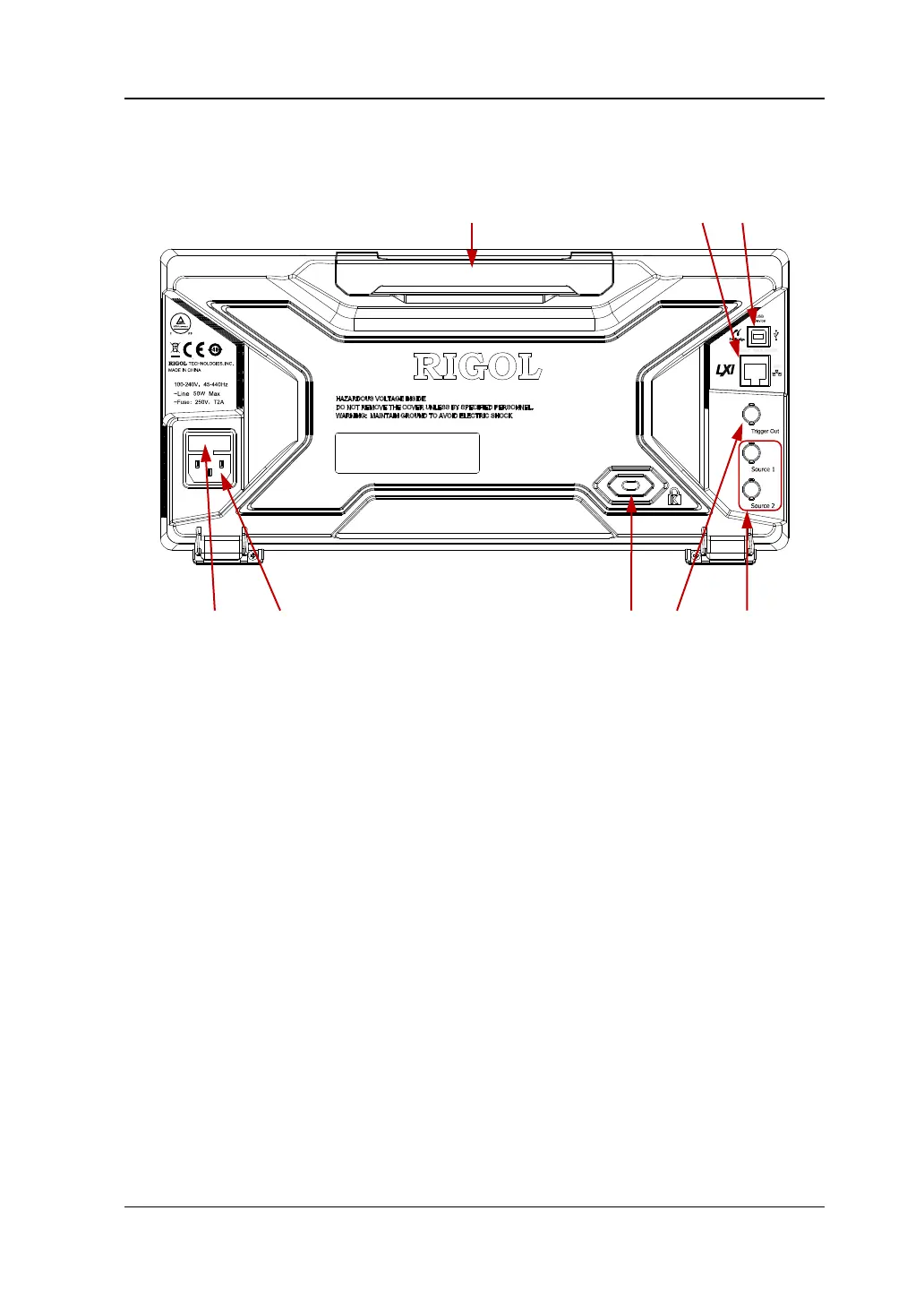

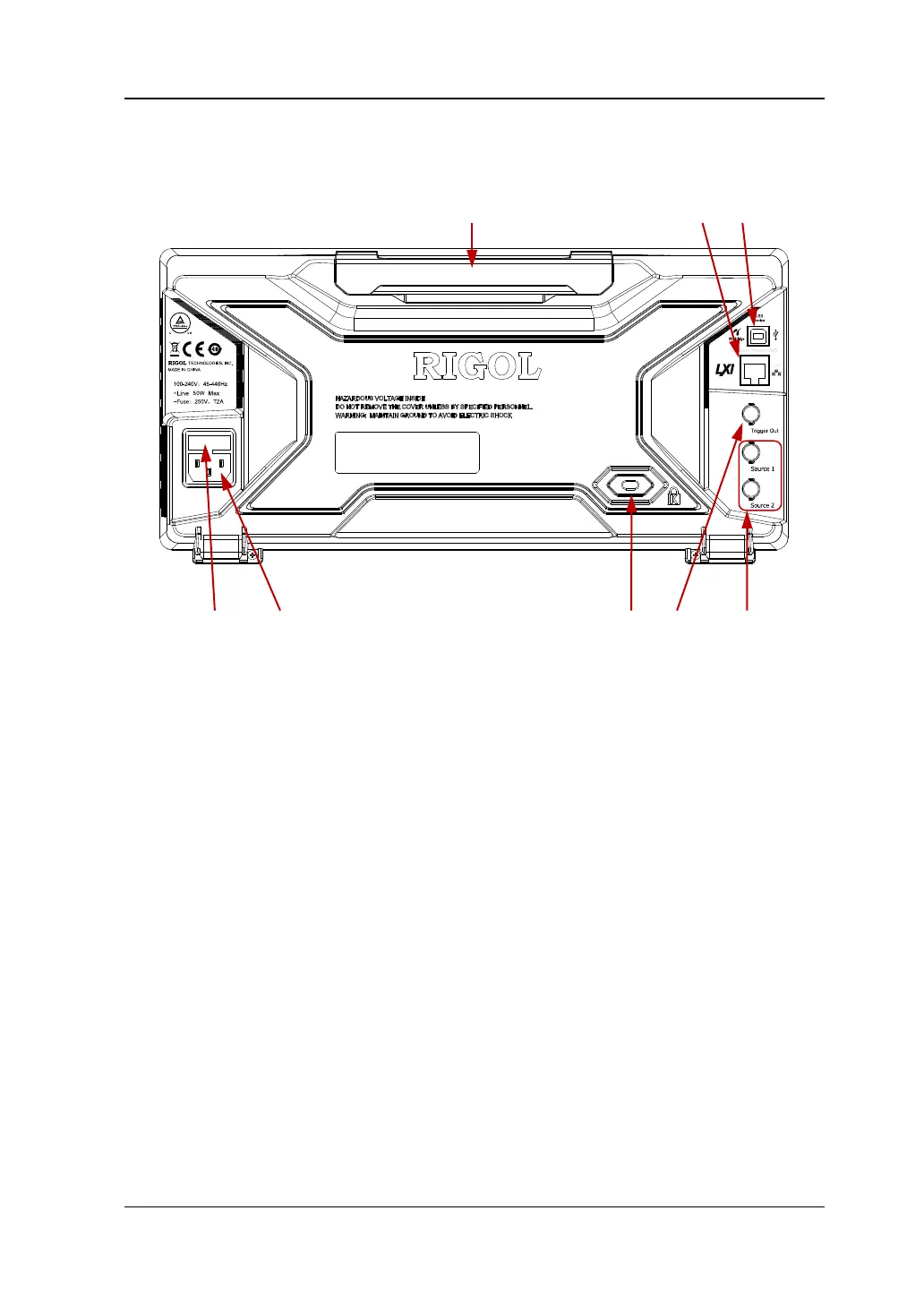

Figure 1-11 Rear Panel Overview
1． Handle
Pull up the handle vertically for easy carrying of the instrument. When you do
not need the handle, press it down.
2． LAN
Connect the instrument to the network via this interface for remote control. This
oscilloscope conforms to the LXI-C class instrument standards and you can
quickly build test system using it with other instruments.
3． USB DEVICE
PictBridge printer or PC can be connected via this interface to perform the print
operation or control the instrument using PC software.
4． Fuse
If a new fuse is required, please use the specified fuse (250V, T2A). The
replacing method is as follows.
(1) Turn off the instrument and remove the power cord.
1 2 3
4 5 6 7 8
