Rigol DS2302A User Manual

RIGOL Chapter 15 System Function Setting
MSO2000A/DS2000A User’s Guide
15-2
Remote Interface Configuration
MSO2000A/DS2000A can communicate with PC via LAN, USB or GPIB (with the
USB-GPIB interface converter provided by RIGOL) bus. Please refer to the
introduction below to configure the corresponding interface before using the remote
interfaces.
LAN Setting
Press Utility  IO Setting  LAN Set to turn on the LAN setting interface. You
can view the network connection status and configure the network parameters.

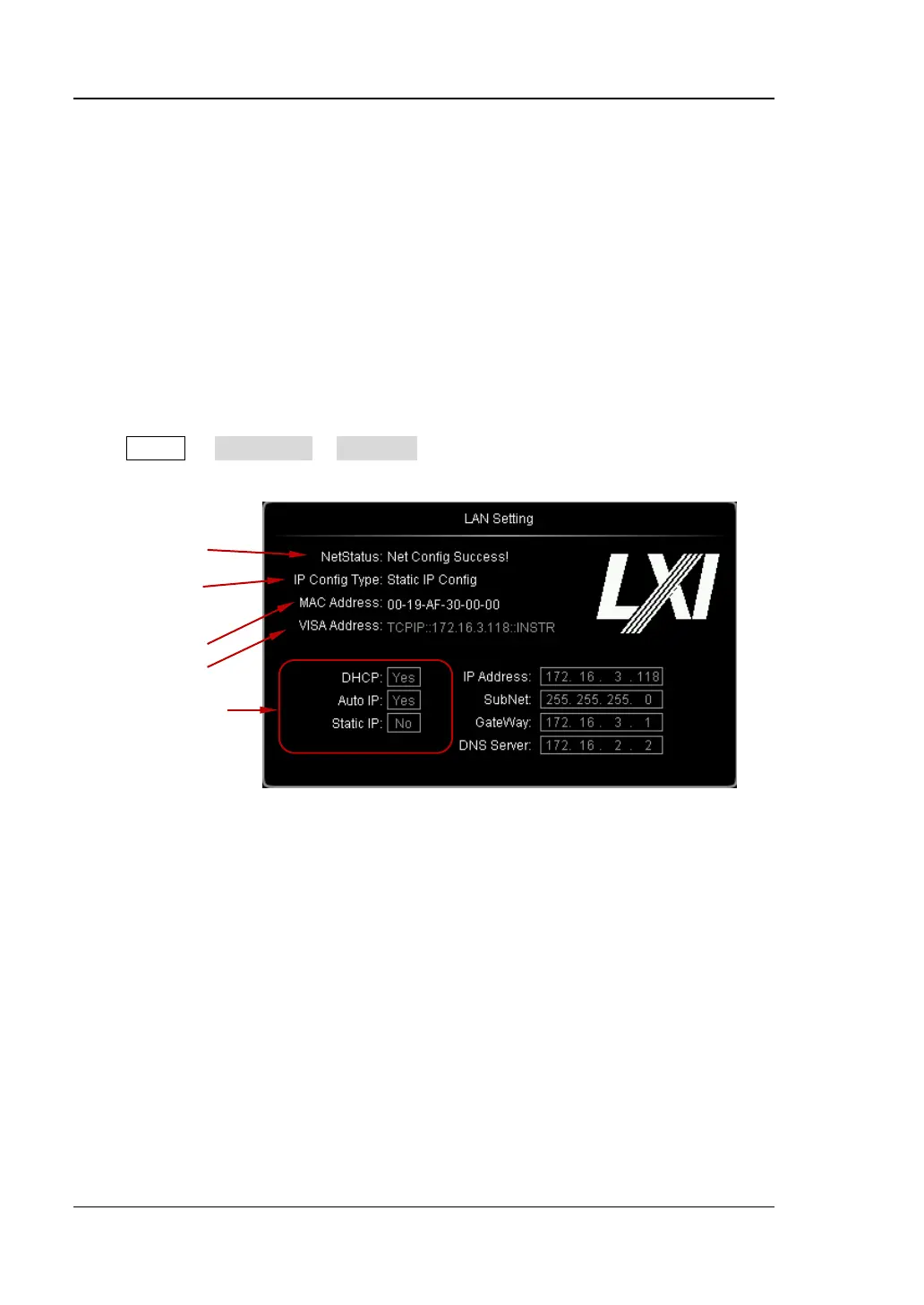

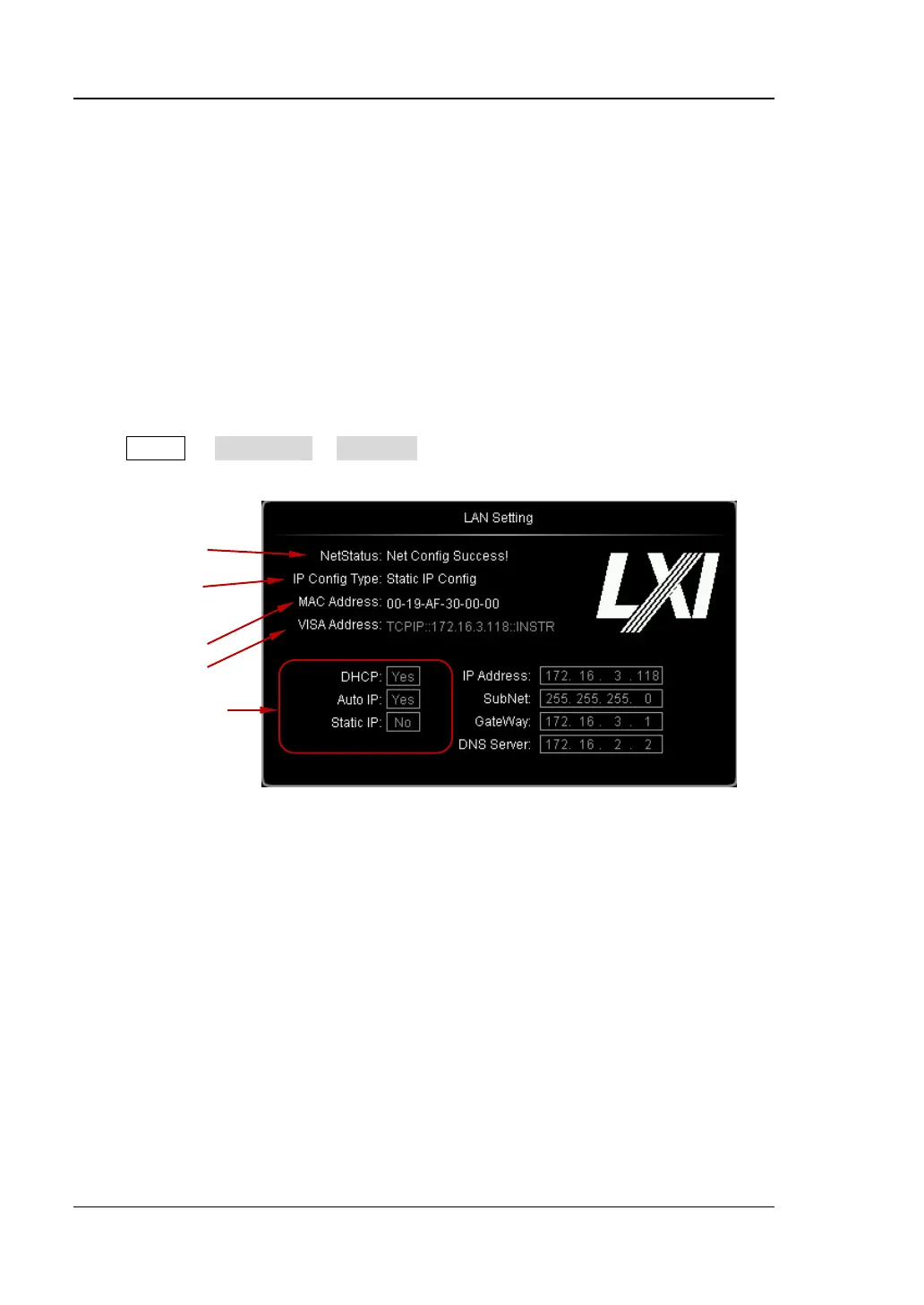

Figure 15-1 LAN Setting Interface
Network Status
Connect the oscilloscope to your local area network using the network cable. The
network interface of the oscilloscope is at the rear panel. The oscilloscope will give
different prompts according to the current network connection status.
 Net Config Success!
 Acquire IP…
 IP Conflict!
 Unconnected!
 DHCP Fail!
 Read Status Fail!
Network Status
Current IP
Config Type
MAC Address
VISA Address
IP Config Type
Status
