Chapter 1 Quick Start RIGOL
MSO2000A/DS2000A User’s Guide 1-19

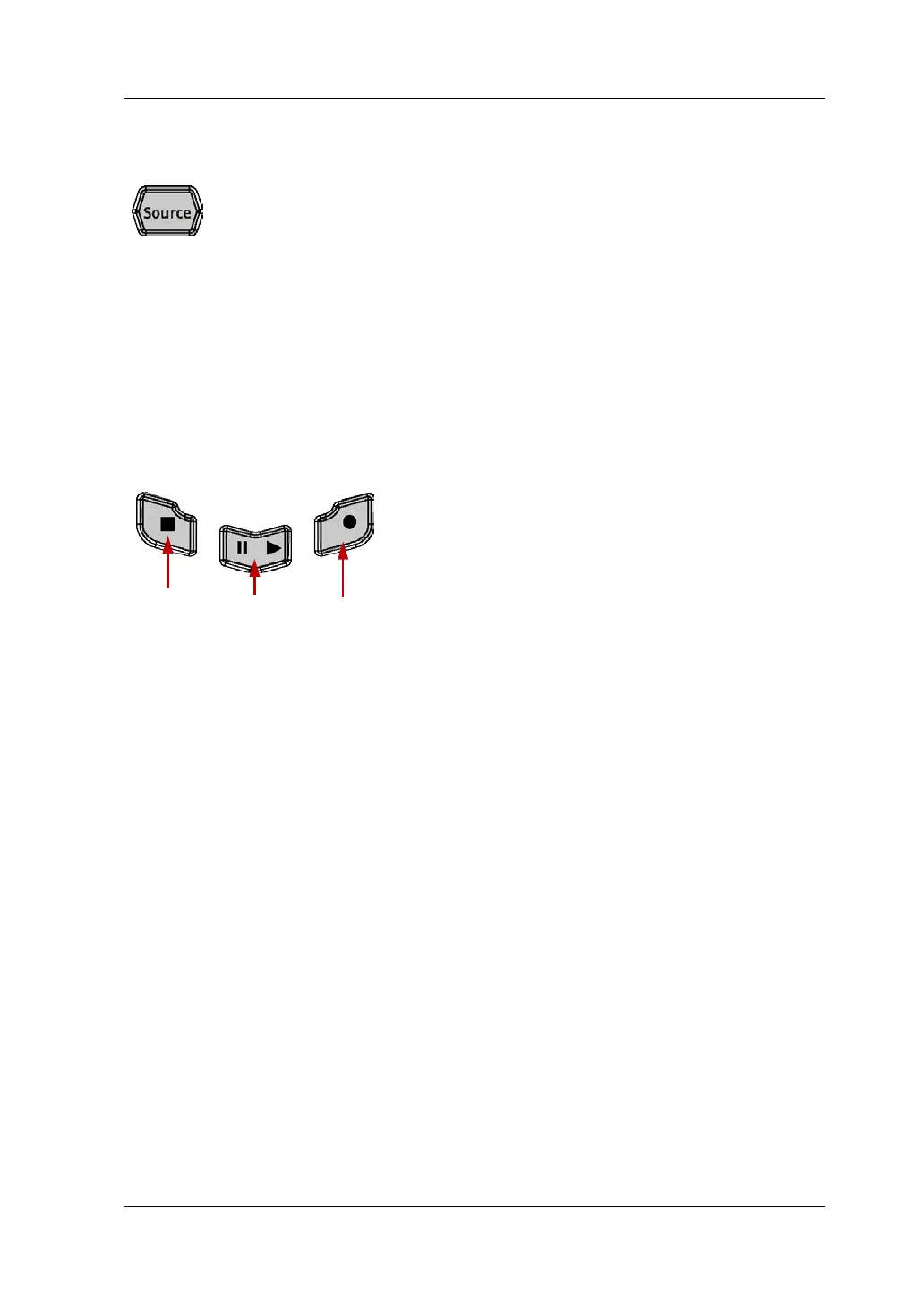

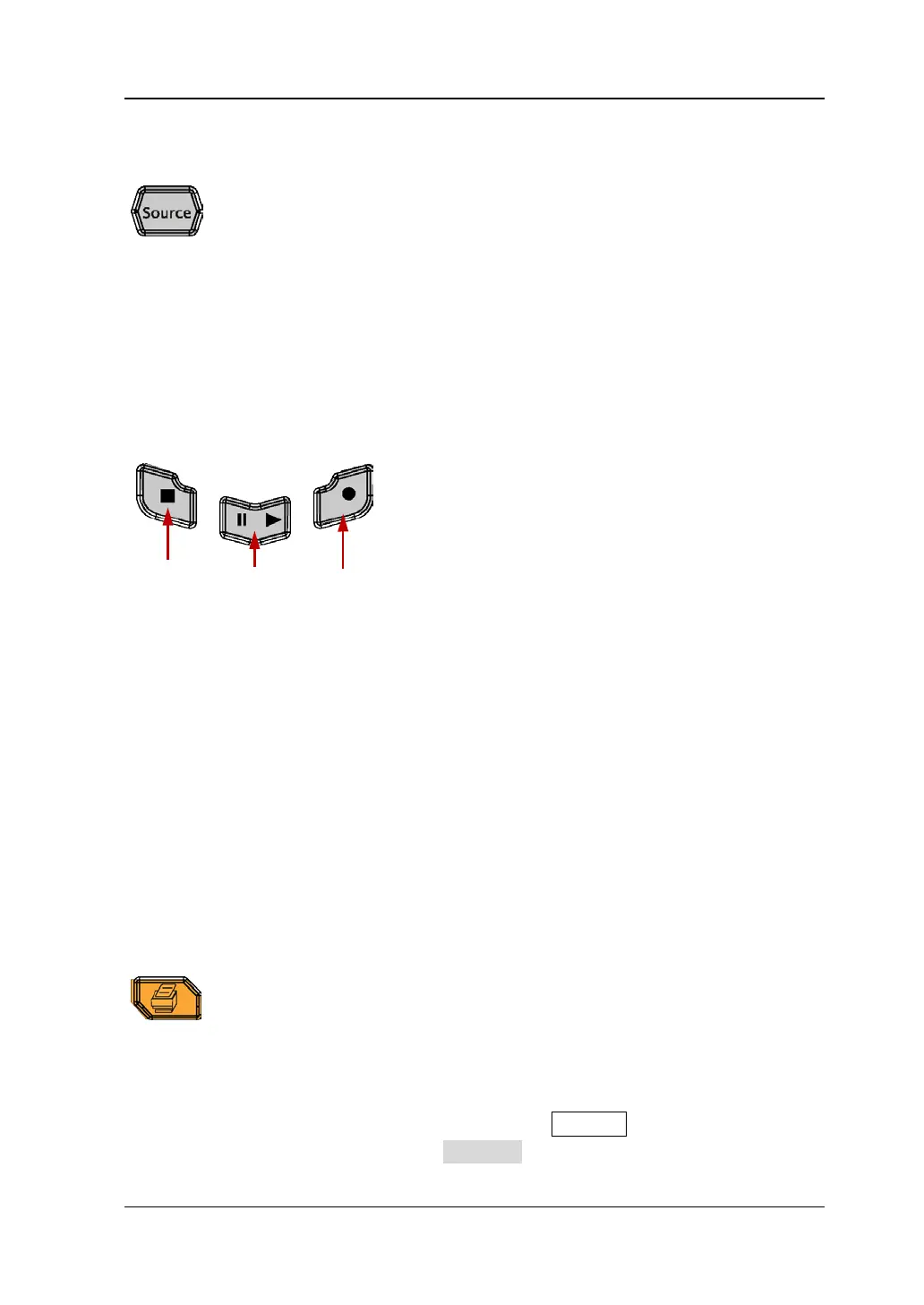

Signal Source
Press this key to enter the source setting interface. You can enable
or disable the output of the [Source1] or [Source2] connector at
the rear panel, set the output signal waveform and parameters,
turn on or off the state display of the current signal source.
Note: This function is only available for MSO2000A-S and DS2000A-S models
oscilloscopes.
Record
Record: press this key to start recording the waveform. The backlight is illuminated
in red and flashes. Besides, when the record constant on (Open) is enabled, the
backlight will also be illuminated in red and flashes.
Play/Pause: in the stop or pause state, press this key to play back the waveform
and press again to pause the play. The backlight is illuminated in yellow.
Stop: press this key to stop the waveform being recorded or being played back. The
backlight is illuminated in orange.
Stop Play/Pause Record
