Chapter 3 Operator Interface

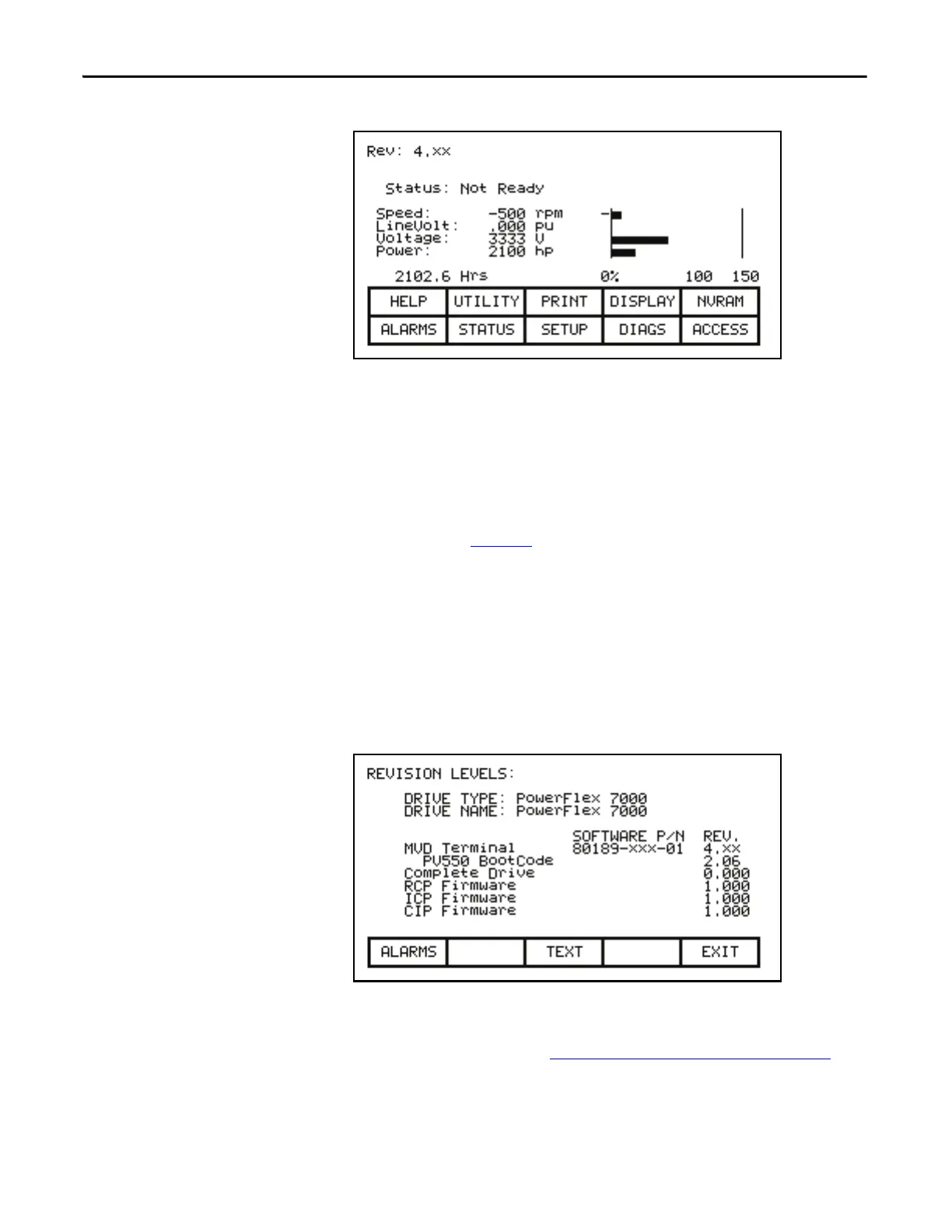

Figure 90 - Top Level Meter Modified
Viewing Revision Levels
For the purpose of maintenance or upgrading of software, the revision levels of all
the software contained in the terminal and the drive may be viewed. To access this
screen, press the [F9] key.
A screen typical of Figure 91
shows:
• the type of drive
• a 16-character, user definable string to uniquely identify a drive
• revision level of the terminal software and its part number
• revision level of the bootcode contained in the terminal
• revision level of various boards contained in the drive
These are identified by name.
Figure 91 - Utility Rev Level
To modify the user definable text string, press the [F8] key. (If nothing happens
then you have not gained the required access to make changes. Exit to the Top
Level Menu screen and refer to
Enter/Modify an Access Level on page 116.)
