Overview of Drive Chapter 1
Operator Interface

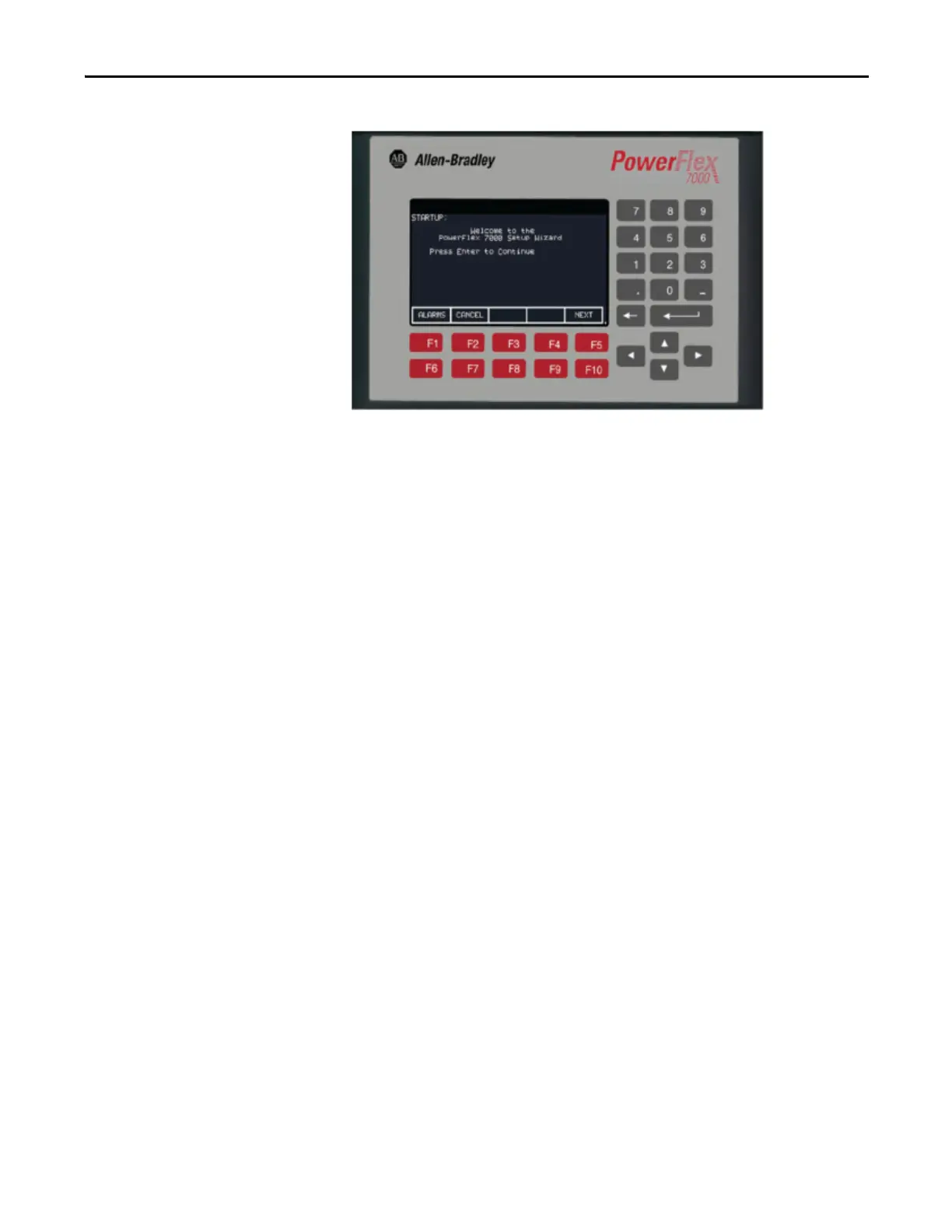

Figure 12 - PowerFlex 7000L Operator interface terminal
The operator interface terminal features a 16-line, 40-character, pixel based LCD
display that makes text and graphics easy to read. Bar chart meters are
configurable for common process variables including speed, voltage and load.
Everything is user friendly about the PowerFlex 7000L operator interface
terminal including the greeting on the opening screen. The terminal is designed
for the greatest ease of use for start-up, monitoring and troubleshooting. The
setup wizard helps the user to set the required parameter menus by asking
questions or prompting selections for desired operation. Warnings and comments
appear complete with help text to keep the user on the right track. The setup
wizard combined with the auto-tuning feature allows the drive to be tuned to the
motor and load as quickly and accurately as possible, resulting in fast start-ups,
smooth operation, and less down time.
Up to five test modes are available including low voltage gate check, and running
at full current without motor connected.
Enhanced diagnostic functions are available on the operator interface terminal
including separate fault and warning queues in non-volatile RAM (NVRAM),
extended fault text strings and on line help, and trend buffers for 16 variables.
