About the Info Display
You can choose what you’d like to see on the Info Display using the PAGE and F buttons
(see Owner’s Manual Pages 69 and 68). You can press these buttons on the VS-2000 or
click them on the VGA display.
When the VGA is Designated as the Info Display

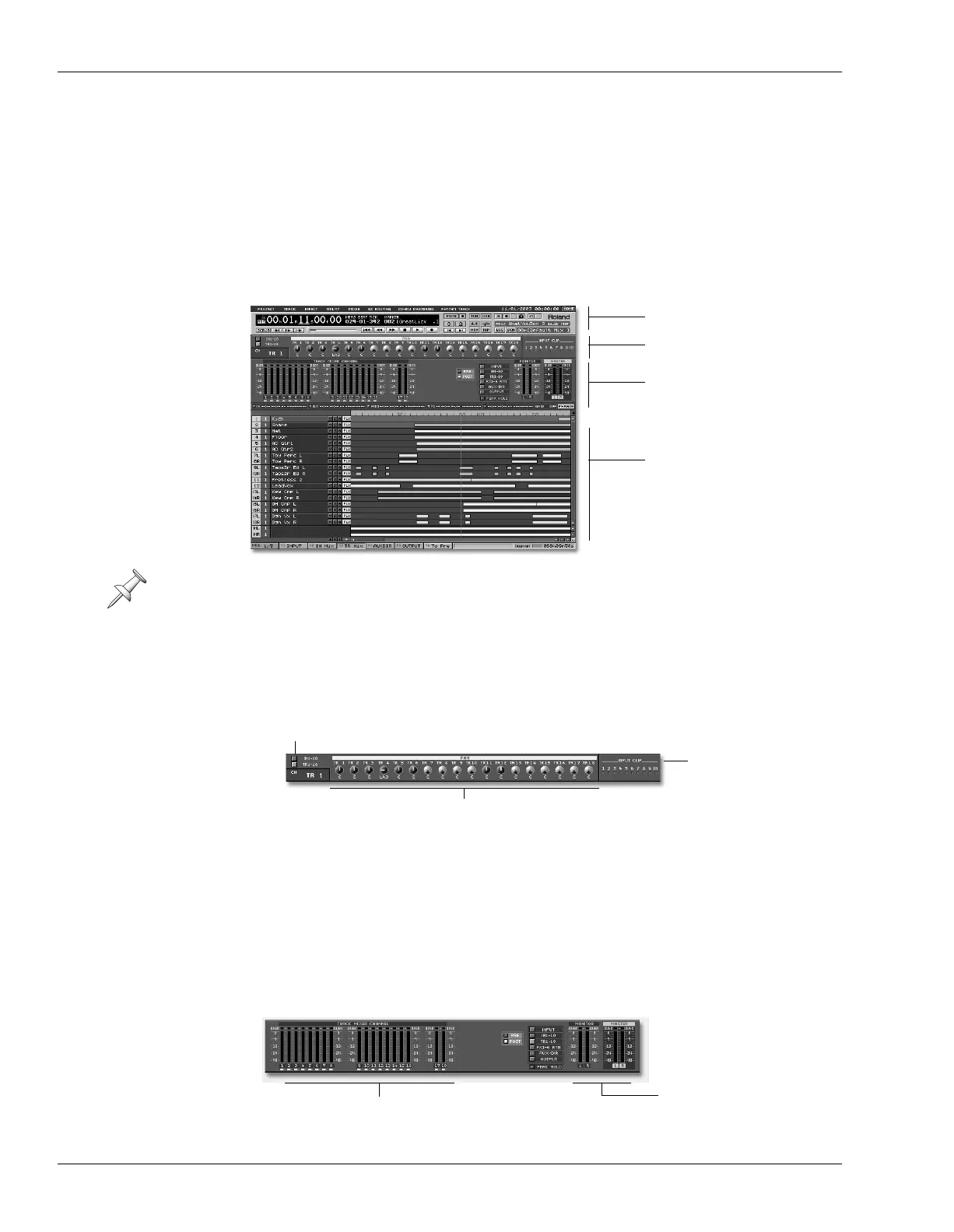

Most of the VGA Info Display’s screens are divided into four areas.
VGA Control Bar
The VGA control bar is described in Chapter 4, starting on Page 35.
PAN Knob Strip
This strip shows the input or track channels’ current PAN settings. Click one of the
PAN select buttons at upper left of the trip, you can switch display of the PAN
parameter. To the right of the strip are input clipping indicators that show when a
channel’s input signal level is too loud.
Meters Strip
In certain display modes—see “Selecting Info Displays Manually” below—the meters
strip shows the set of meters currently selected on the Home screen.
The Info Display also provides a date and time readout in its upper right-hand corner.
VGA control bar
PAN knob strip
Meters strip
Bottom pane
PAN select button
Clipping indicators
PAN knob settings
Currently selected meters
Meters for the
MONITOR and
MASTER busses
