Roland VS-2000 Owner's Manual Addendum

6—VGA Main Display CH VIEW Screens
58 www.Roland.com Roland VS-2000 Owner’s Manual, Version Two Addendum
Universal CH VIEW Elements
The CH VIEW screens for input, track and FX return channels differ slightly, though
they contain some common elements. The following section describes those elements.

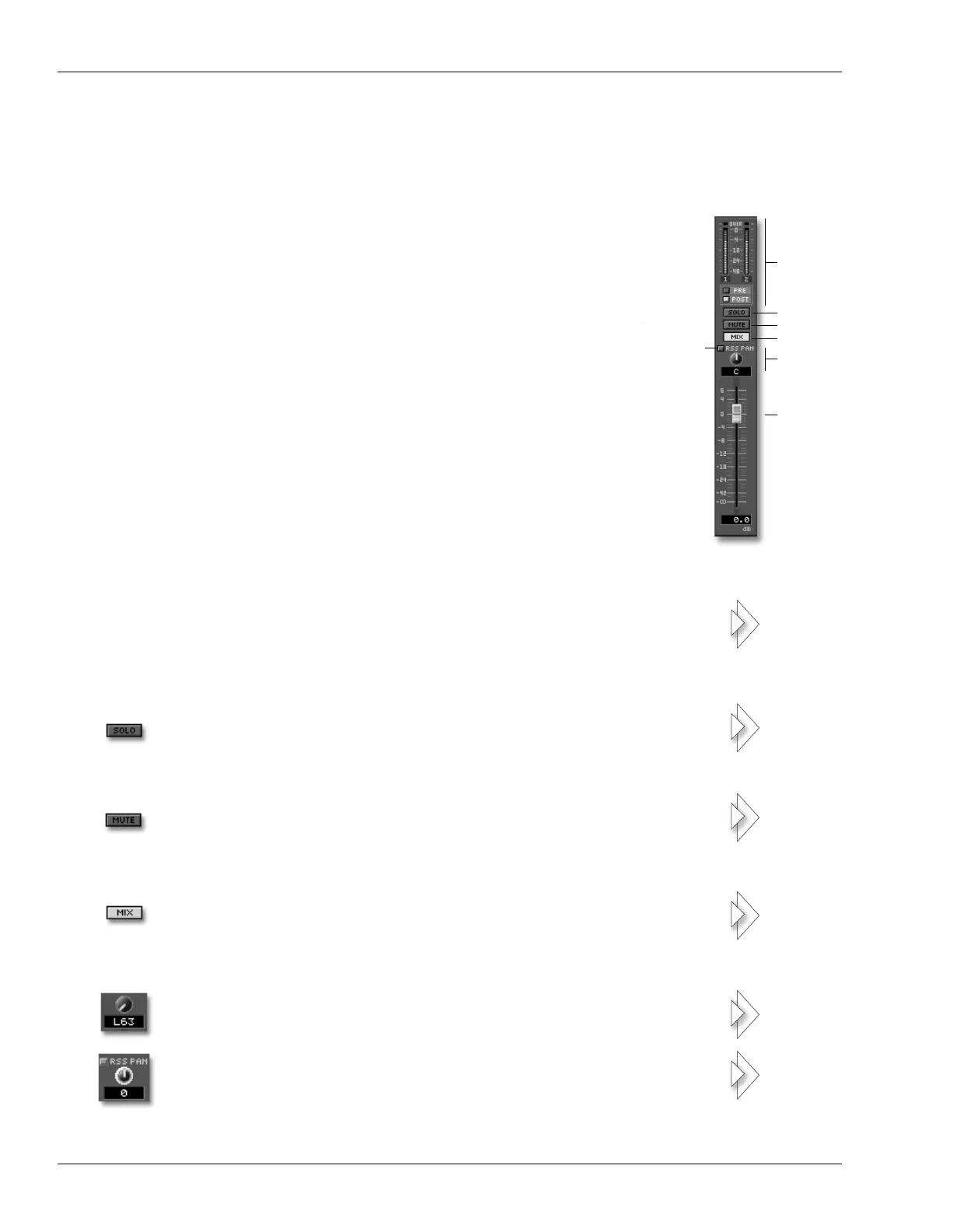

Input/Output Control Strip
The input/output control strip appears on the right side of all
of the VGA CH VIEW screens. This strip presents parameters
that allow you to control the output of the channel strip, and
meter its input or output. The following section describes how
the strip works with a single unlinked channel. Page 59
discusses how the strip works with linked channels.
Meters and PRE/POST Buttons
The meters allow you to view the level of signal coming into
or going out of the channel. The PRE and POST buttons
determine the signal level to be displayed. To view the level of
signal:
• coming into the channel —click PRE.
• going out of the channel —click POST.
SOLO Button
MUTE Button
MIX Button
PAN (RSS)/BAL Knob
The CH VIEW meters are presented in pairs. With input and track
channels, you can see the levels for the odd/even pair of channels to
which the currently selected channel belongs—there’s a number
beneath each meter to show the channel signal it represents. With
the stereo FX return channels, the two meters show the left- and
right-side signal levels.
To isolate the channel’s signal by silencing all un-soloed channels,
click SOLO so it lights. To un-solo the channel, click SOLO again.
To silence the channel’s signal, click MUTE so it lights. To un-mute
it, click the button again.
Click MIX so it lights to send the track channel’s signal into the
MASTER bus, the main stereo mix. Turn it off to remove the signal
from the mix.
Set the stereo placement of the channel’s output in the MASTER
stereo mix by dragging its PAN knob—or BAL knob in an FX return
channel—up or down.
Click square button on left of RSS PAN so it’s lit, the appearance of
the PAN parameter will be change. You can control the amount of
the channel’s signal being sent to the effect.
SOLO
MUTE
MIX
PAN
(RSS)
Meters
and PRE/
POST
buttons
FADER
RSS PAN
button
152, 230
142
141
152, 230
155, 229
155
