6—VGA Main Display CH VIEW Screens
60 www.Roland.com Roland VS-2000 Owner’s Manual, Version Two Addendum
DIR (DIRECT) 1-8 Selector
Channel-Specific Parameter Strips
At the left side of each CH VIEW screen is a strip that contains parameters specific to
the selected type of channel.

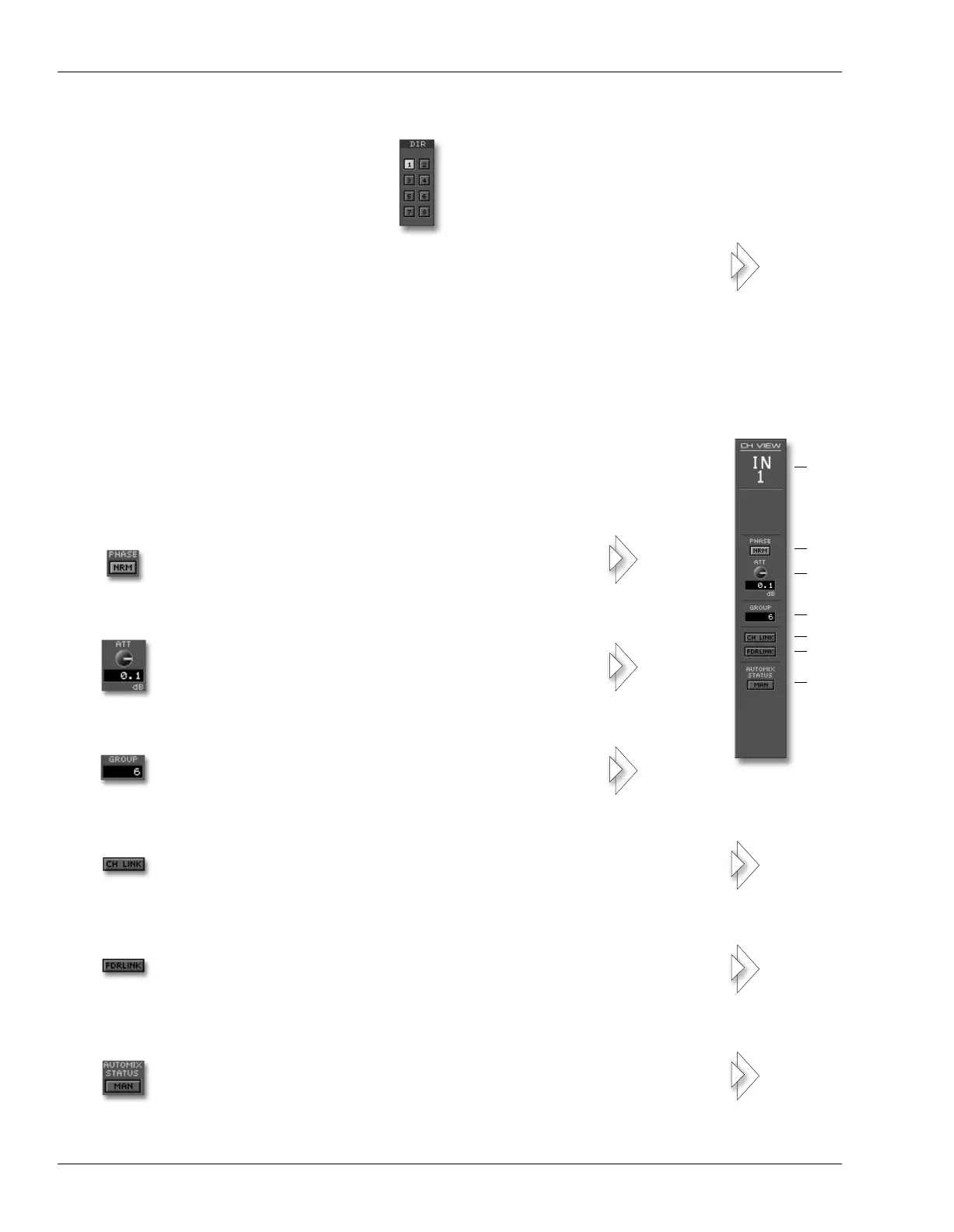

Input Channel Parameter Strip
1. Channel Name
2. PHASE Button
3. ATT Knob
7. GROUP Selector
5. CH LINK Button
6. FDRLINK Button
7. AUTOMIX STATUS Button
To assign an channel’s signal to one of the eight Direct paths, click
the desired path’s button in the DIR 1-8 selector.
Click PHASE—so it’s lit—to reverse the phase
polarity of the channel’s signal.
To adjust the level of the input signal coming into
the input channel, drag the ATT knob up or down
as desired—the readout beneath the knob shows
the current amount of attenuation.
To assign the input channel to a fader group, click
GROUP and select the desired fader group from
the pop-up menu.
To link the channel to its odd/even partner so that any changes
made to one channel affect both, click CH LINK to turn it on.
Click FDRLINK—so it’s lit—to link the current channel’s fader to its
odd/even partner so their levels can be set by moving either fader
while their other parameters remain independently controllable.
Click the AUTOMIX STATUS button to set the channel’s status
when Automix is turned on.
207
1.
7.
6.
5.
4.
3.
2.
153
151
153
150
154
343
