Roland VS-2000 Owner's Manual Addendum

7—Mixer Views
76 www.Roland.com Roland VS-2000 Owner’s Manual, Version Two Addendum

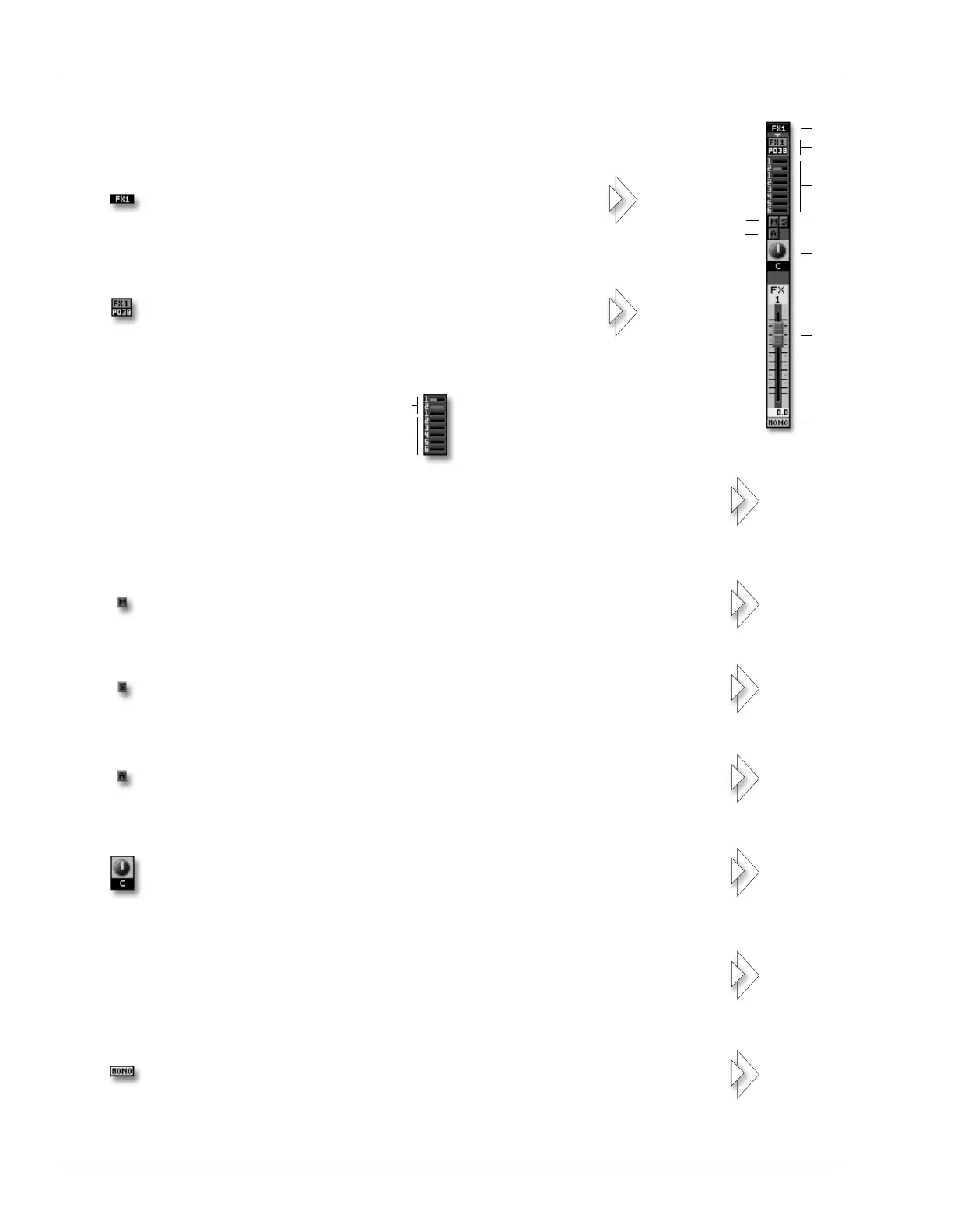

FX Return Channel Strips
1. FX Bus ASSIGN
2. Algorithm View Button
3. AUX and FX Send Sliders
4. MUTE (M) Button
5. SOLO (S) Button
6. AUTOMIX STATUS (A) Button
7. BAL (Balance) Knob
8. Channel Fader
9. MONO Switch
Each FX bus is routed to the input of its same-
numbered effect processor.
This button shows the name of the channel’s processor
and its currently selected effect patch. Click the button
to display the Algorithm View screen from which you
can select a new patch or edit the current patch.
Set the amount of the channel’s signal sent to an Aux and FX bus by
adjusting the corresponding AUX and FX send slider. With linked Aux
and FX busses, a panning handle replaces the even-numbered Aux and
FX bus’s slider (Page 73).
To mute the channel, click this button so it’s lit. To un-mute the channel,
click the button again.
To solo the channel, click the SOLO button to light it. To un-solo the
channel, click the button again.
When Automix is turned on, repeatedly click the AUTOMIX STATUS
button to set the channel’s Automix status.
Set the stereo position of the channel in the main MASTER bus mix by
dragging the BAL knob up or down as desired.
The position of the channel fader sets the level of signal coming out of
the channel.
Click this button—so it lights—to collapse the effect processor’s
stereo output to a mono signal.
1.
2.
3.
5.
7.
8.
9.
4.
6.
228
219
AUX Send
FX Send
230
141
142
343
229
230
228
