Roland VS-2000 Owner's Manual Addendum

6—VGA Main Display CH VIEW Screens
66 www.Roland.com Roland VS-2000 Owner’s Manual, Version Two Addendum

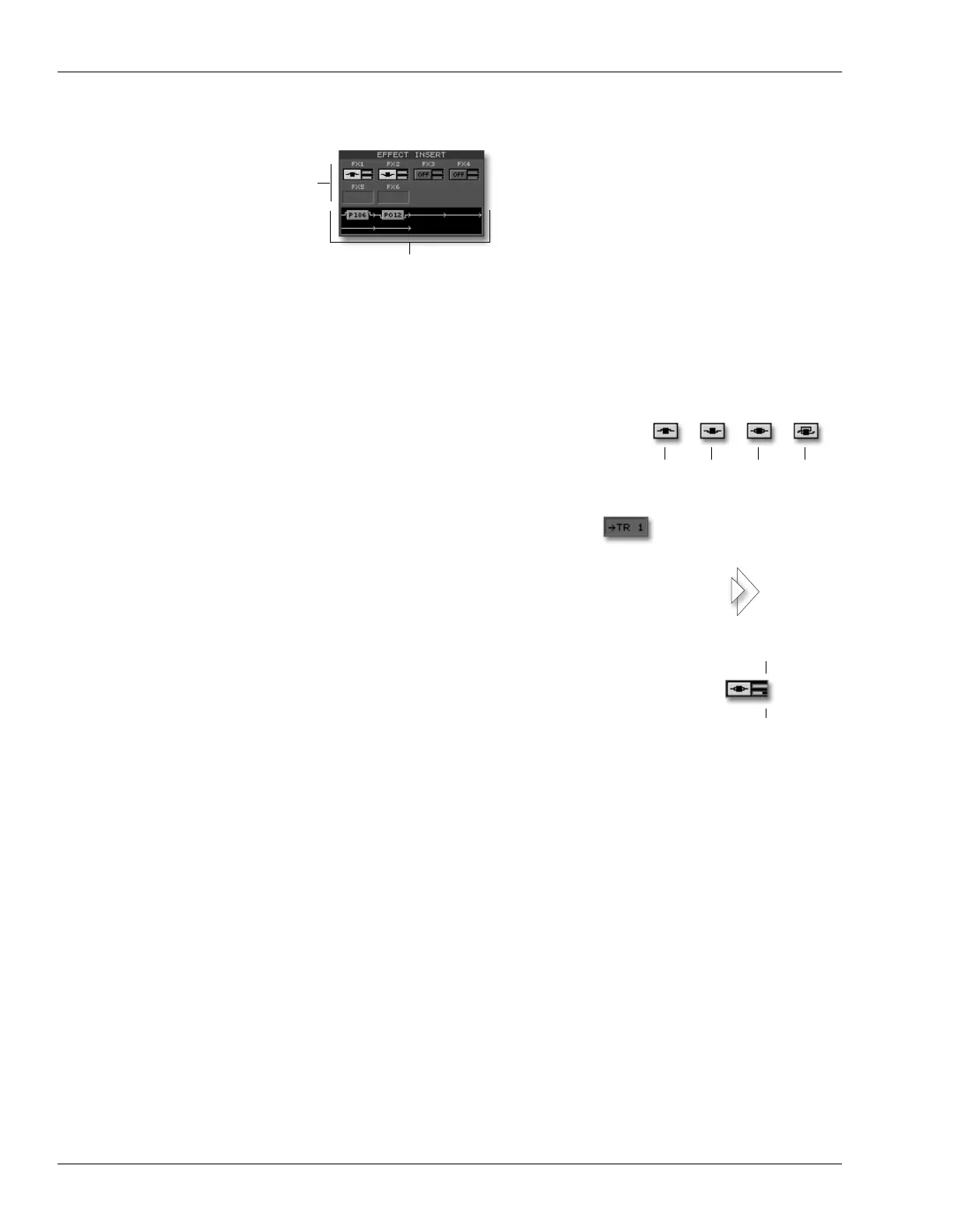

EFFECT INSERT Controls
Each input and track channel CH VIEW screen contains an EFFECT INSERT matrix in
which you can insert an available effect processor—or the left or right side of a
processor—into the channel’s signal flow. The insert effect matrix shows each effect
inserted on the channel, as well as the signal flowing from one insert effect to the next.
The number of each processor’s currently selected patch is shown in the matrix as well.
To insert an effect on a channel, click the desired processor
button repeatedly to select the type of insert routing you
want to use. To learn how each of the available routings
works, see Owner’s Manual Page 215.
If a processor is already inserted elsewhere, its
processor button displays where it’s being used.
You can adjust the send and return levels to the inserted effect
by dragging the blue insert send and return sliders—located
to the right of the processor button—up and/or down.
To select or edit an insert effect for a processor, click the effect in the
insert effect matrix—the processor’s Algorithm View screen appears
on which you can select a new patch or edit the current patch.
Processor
buttons
Each available effect processor has its own
processor button—in this illustration, only
one optional VS8F-2 and/or VS8F-3 effect
expansion boards have been installed, so
Effects 5 and 6 aren’t available.
Insert effect matrix
Ins InsL InsR InsS
This effect processor’s
already being used by
Track Channel 1.
221
I
nser
t
sen
d
Insert return slider
VS2000v2Add.book 66 ページ ２００５年４月８日 金曜日 午後２時２４分
