Switch Control Setup

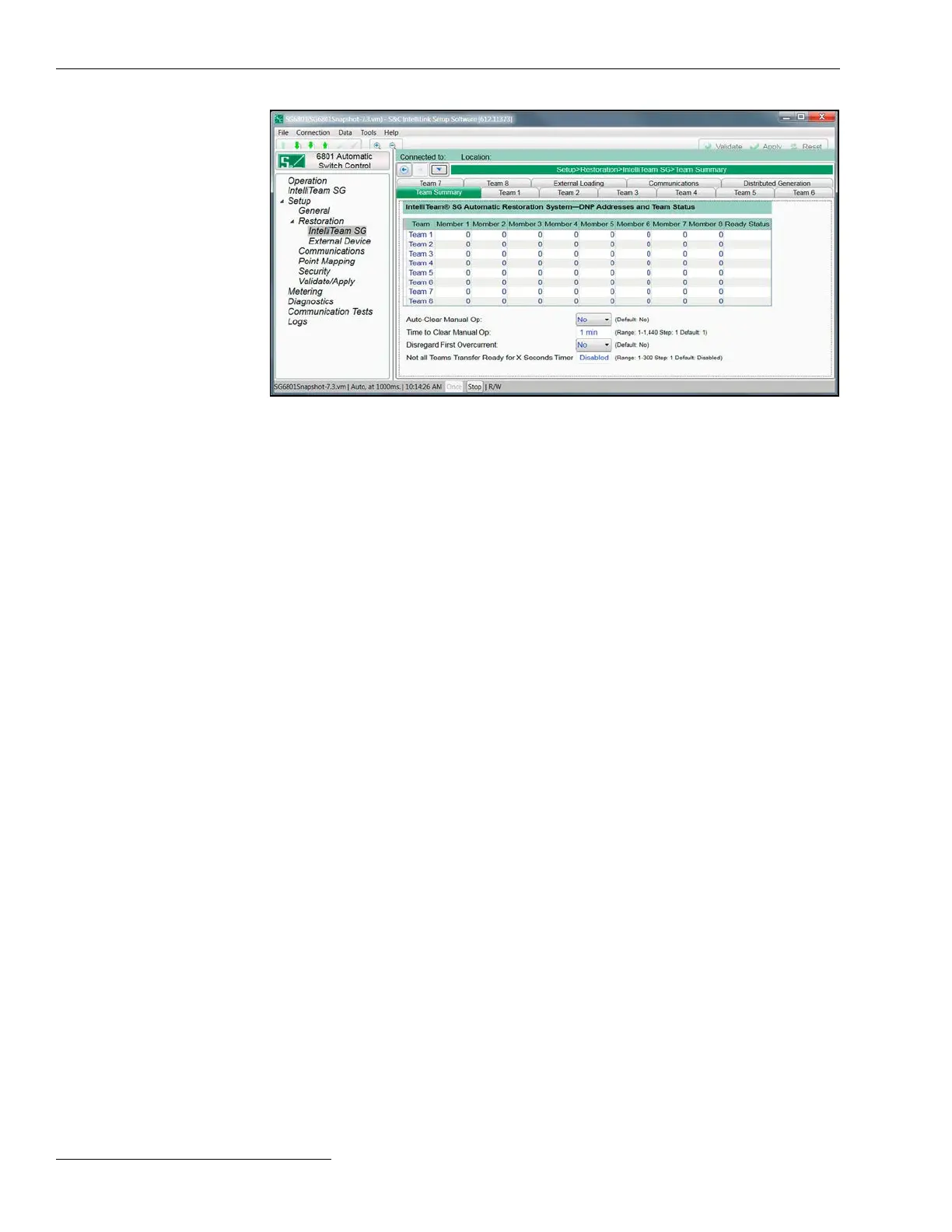

Figure 23. The Setup>Restoration>IntelliTeam SG>Team Summary screen.
The screen shown in Figure 23 shows the DNP/RTU address of the teams in which this
control is a member and shows Ready status for each team.
DNP Addresses and Team Status
Team Selection
The tabs for Team 1 through Team 8 can be used to navigate to screens where general
team parameters and information for individual team members are entered for
IntelliTeam II Compatibility Mode conguration. For the IntelliTeam SG system, the
parameters in these screens are automatically entered by the netlist the IntelliTeam
Designer software generated.
Auto-Clear Manual Operation
Select the Yes option to automatically clear the Manual Operation condition when all
other Ready conditions are met for this team member. When the No option is selected,
Manual Operation conditions must be cleared by an IntelliLink software or SCADA
command before teams will return to the Ready state. The No setting is the default.
Time to Clear Manual Operation
When the Auto Clear Manual Operation setting is set to the Yes option, enter the time
delay before the IntelliTeam SG system will clear the Manual Operation condition.
(Range: 1-1440 minutes; Step: 1 minute; Default: 1 minute)
Not All Teams Transfer Ready for X Seconds Timer
This is the amount of time the device can go without seeing a coach from its adjacent
team members before the Not all Teams Transfer Ready status point becomes active.
The timer resets and the status point becomes inactive when a new valid coach arrives.
(Range: 0-300 seconds; Default: Disabled)
Disregard First Overcurrent
When the Yes option is selected, the IntelliTeam application disregards the fault ag
generated after the rst overcurrent event is detected on the circuit and does not count it
as a fault. Instead, it waits until after the rst reclose/PulseClosing Technology sequence
to allow the distributed generation (DG) to be taken ofine before counting the fault
event. This will produce more accurate fault location information and lead to better
load restoration decisions when there is distributed generation feeding fault current
into the circuit.
Note: Enabling this setting has no effect on the sectionalizing logic of the device (i.e.
the Recloser Counts to Sectionalizer Trip setting is not impacted). This setting only
impacts how the IntelliTeam logic determines fault location.
