Switch Control Setup

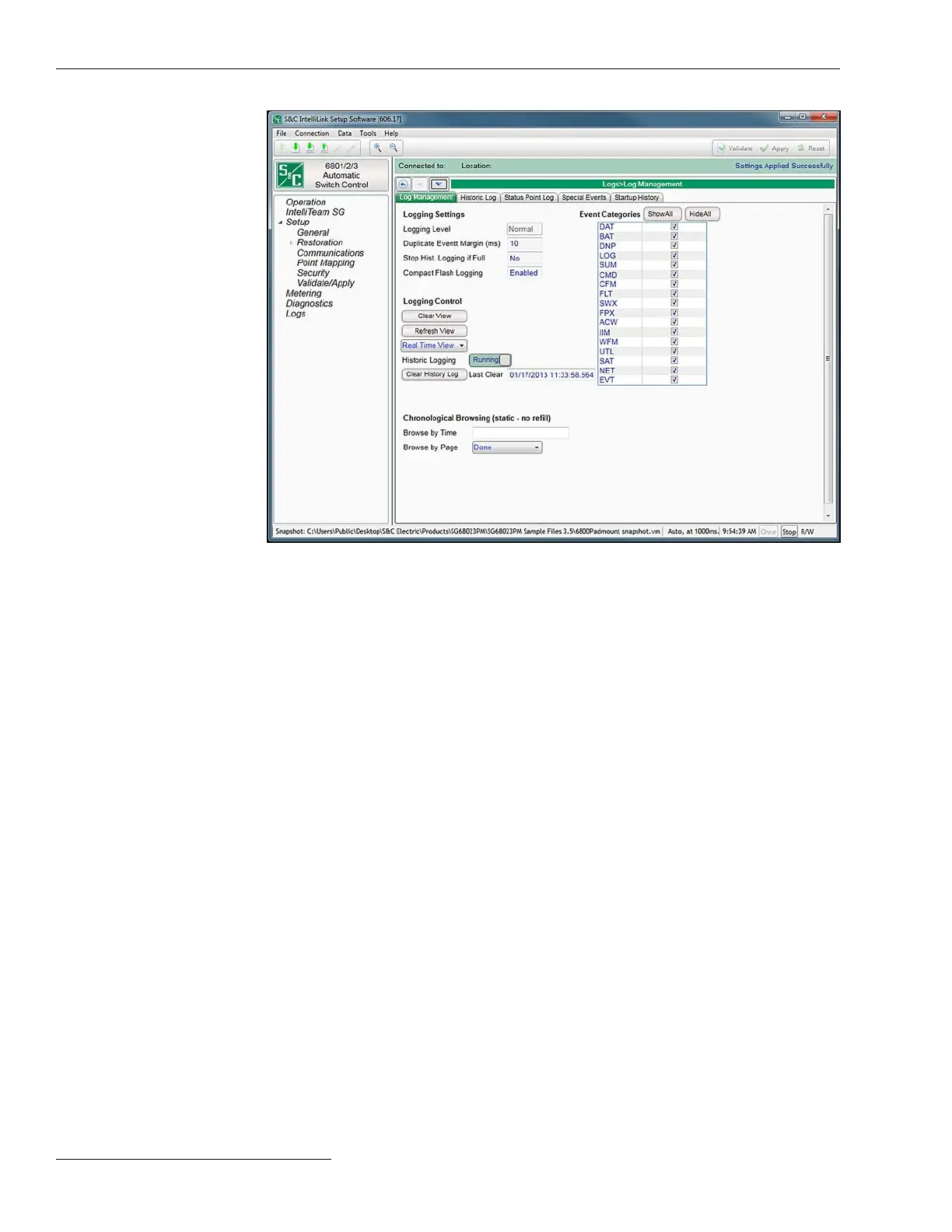

Figure 44. The Setup>Logs>Log Management screen.
The screen shown in Figure 44 congures the lter settings for viewing log screens. The
Administrative login is required to execute any of the log-control functions.
Logging Settings
Logging Level
The logging level selected determines the type of data-log messages captured in the
base memory module (for an IntelliRupter fault interrupter) and is displayed on the
Logs>Historic Log screen. Every data-log message is assigned a specic log level:
Normal—User information
Extended—User information and internal status
All—User information, internal status, and internal trace/debugging information
Duplicate Event Margin (milliseconds)
Storing identical events in a short time period can ood internal memory and does not
provide useful diagnostic information. By conguring the time between duplicate event
log entries, this setpoint determines which data will be stored in the internal memory
and be displayed on the Logs>Historic Log screen. It has no effect on an alternating
sequence of events. Two events are considered duplicates when every element of their
event records match. For example, when the Duplicate Event Margin setting is 10 ms.
and the sequence of events ABABAB (where A and B are different) has every event occur
1 ms after the previous one. The identical events occur within 2 ms, well within the value
of the setpoint, but all events will be logged because events are alternating. (Range =
0-30; Increment = 1.)
Stop Historic Logging if Full
When enabled, this setting stops logging events when the Historic Log is full and
subsequent events are discarded without overwriting contents of the log. Flash memory
logging, the Status Point Log, and Special Events counter logging are not affected by
this set point. Do not set this setting to the Yes setting unless troubleshooting. When
troubleshooting is completed or new event data are desired, set this setting to the No
setting to ensure continued event logging.
Log Management
86 S&C Instruction Sheet 1045-530
