Switch Control Setup

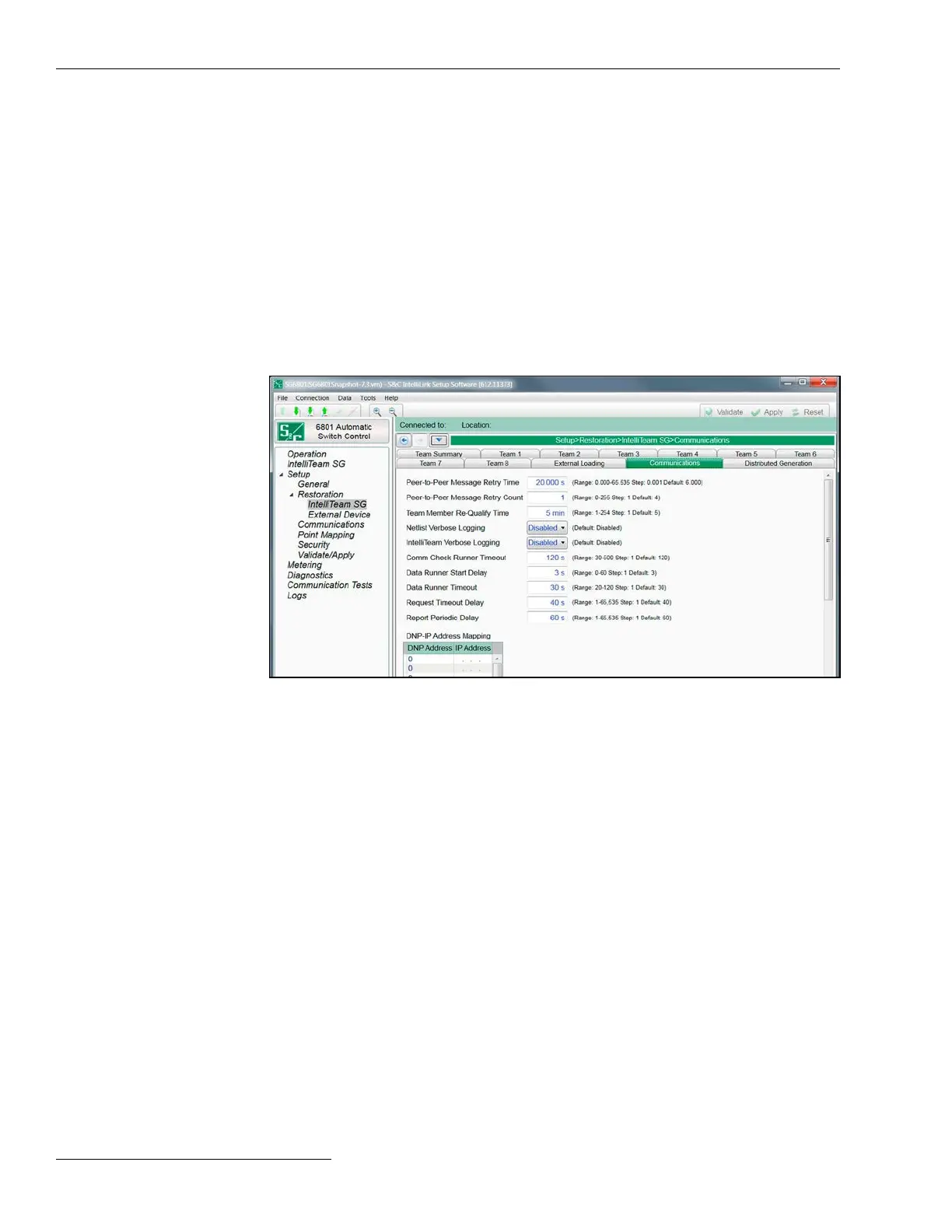

Figure 26. The Setup>Restoration>IntelliTeam SG>Communications screen.

Peer-to-Peer Message Retry Time (sec)

The control waits this amount of time (in seconds) to receive a response from another

team member. If it does not receive the response within this time period, it resends the

message to that team member. It continues sending the message until it receives a response

or reaches the Peer-to-Peer Message Retry Count value. (Range: 0.000-65.535; Step:

0.001; Default: 6.000) See Figure 26 on page 57.

Peer-to-Peer Message Retry Count

This is the number of times the control resends a message to a team member that does

not respond within the Peer-to-Peer Message Retry Time period. (Range: 0-255; Step:

1; Default: 4)

Note: Decreasing the Peer-to-Peer Message Retry Time value or increasing

the Peer-to-Peer Message Retry Count setting may have a negative effect on some

communications systems because of increased traffic. Be sure to take this into account

when changing these setpoints.

Team Member Re-Qualify Time (minutes)

This is the time a team member will remain disqualied as a potential alternate source

after that team member attempted but was unable to restore full service. This inability

to restore full service is likely the result of a second contingency event, such as a loss of

phase between the alternate source and the team member attempting to restore service.

In this case, the team member would close, nd that three-phase voltage is present, and

reopen. (Range: 1-254 minutes; Step: 1; Default: 5)

Team Communication

Parameters

STATUS: Source Loading Data

If either the Maximum Source Capacity or the Default Source Segment Loading

setpoint is not congured, the real-time loading feature is not active. This eld will show

“Disabled,” even if the team member receives feeder-loading data. In this case, the present

calculations using the Maximum Source Capacity value are used. Both setpoints must

be congured for this eld to show “Enabled.”

STATUS: Real-Time Loading Data

When the DNP Analog Output value received is zero; is less than the real-time load of

the IntelliRupter fault interrupter, 6800 Automatic Switch Control, switch, or recloser;

is equal to or greater than the Maximum Source Capacity setpoint; or has not been

updated within the time setting described above, this eld will show “Invalid.” The

Default Source Segment Loading value is used in this case.
