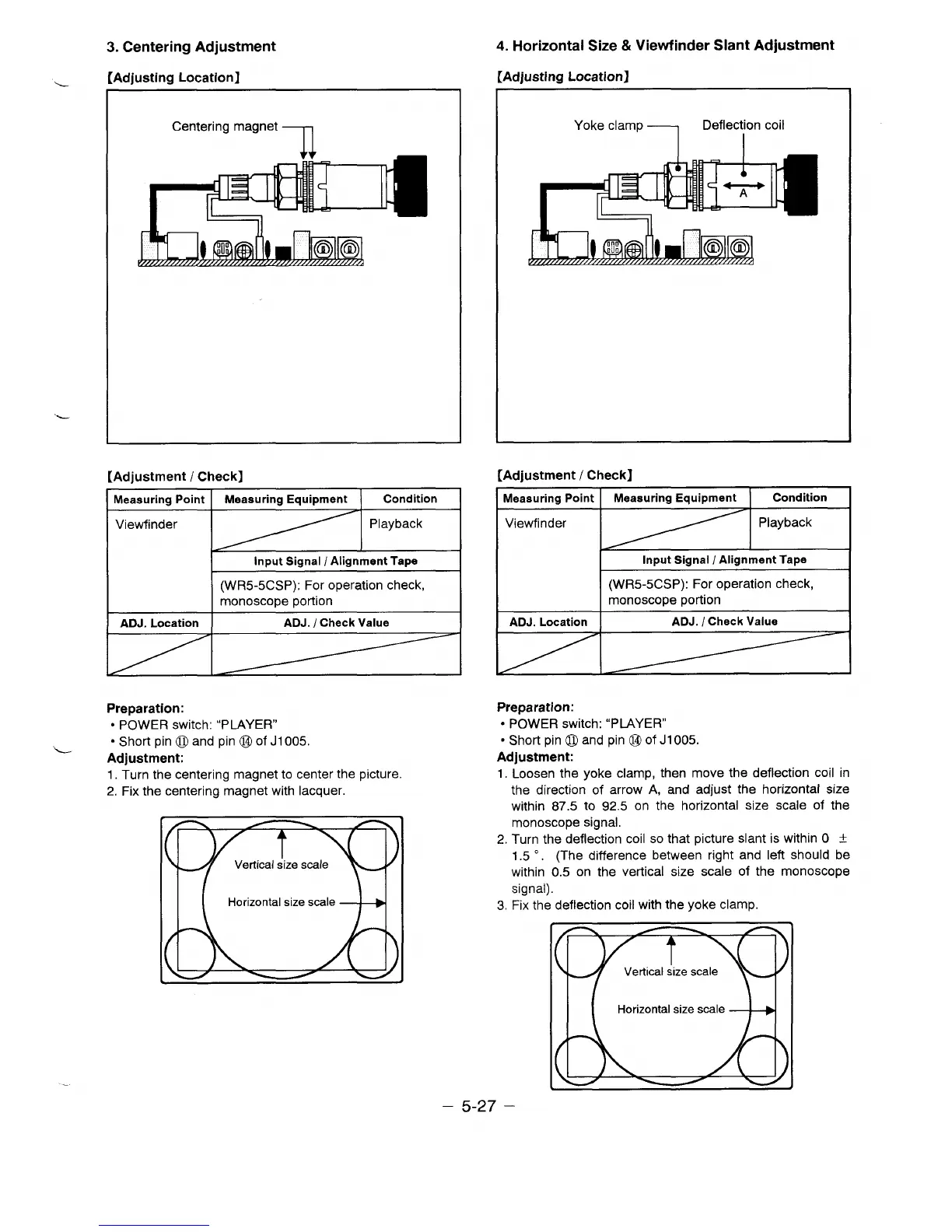

3. Centering Adjustment
[Adjusting Location]
[Adjustment / Check]
pleasuring Point Meaeuring Equipment
Condition
Viewfinder
Playback
~
(WR5-5CSP): For operation check,
ADJ. Location ADJ. I Check Value
Preparation:
● POWER switch: “PLAYER”
● Short pin @ and pin @of J1oo5.
L
Adjustment:
1. Turn the centering magnet to center the picture.
2, Fix the centering magnet with lacquer.
4.
Horizontal Size & Viewfinder Sjant Adjustment
[Adjust}ng Location]
Yoke clamp
1
Deflection coil
[Adjustment / Check]
pleasuring Point I Measuring Equipment Condition
Viewfinder
I
Input Signsl / Alignment Tape
(WR5-5CSP): For operation check,
monosco~e Dortion
ADJ. Location
ADJ. / Check Value
Preparation:
● POWER switch: “PiAYER”
● Short pin@ and pin@ of J1OO5.
Adjustment:
1. Loosen the yoke clamp, then move the deflection coil in
the direction of arrow A, and adjust the horizontal size
within 87.5 to 92.5 on the horizontal size scale of the
monoscope signai.
2. Turn the defection coil so that picture slant is within O +
1.5°.
(The difference between right and left should be
within 0.5 on the vertical size scale of the monoscope
signal).
3. Fix the deflection coii with the yoke clamp.
– 5-27 –
