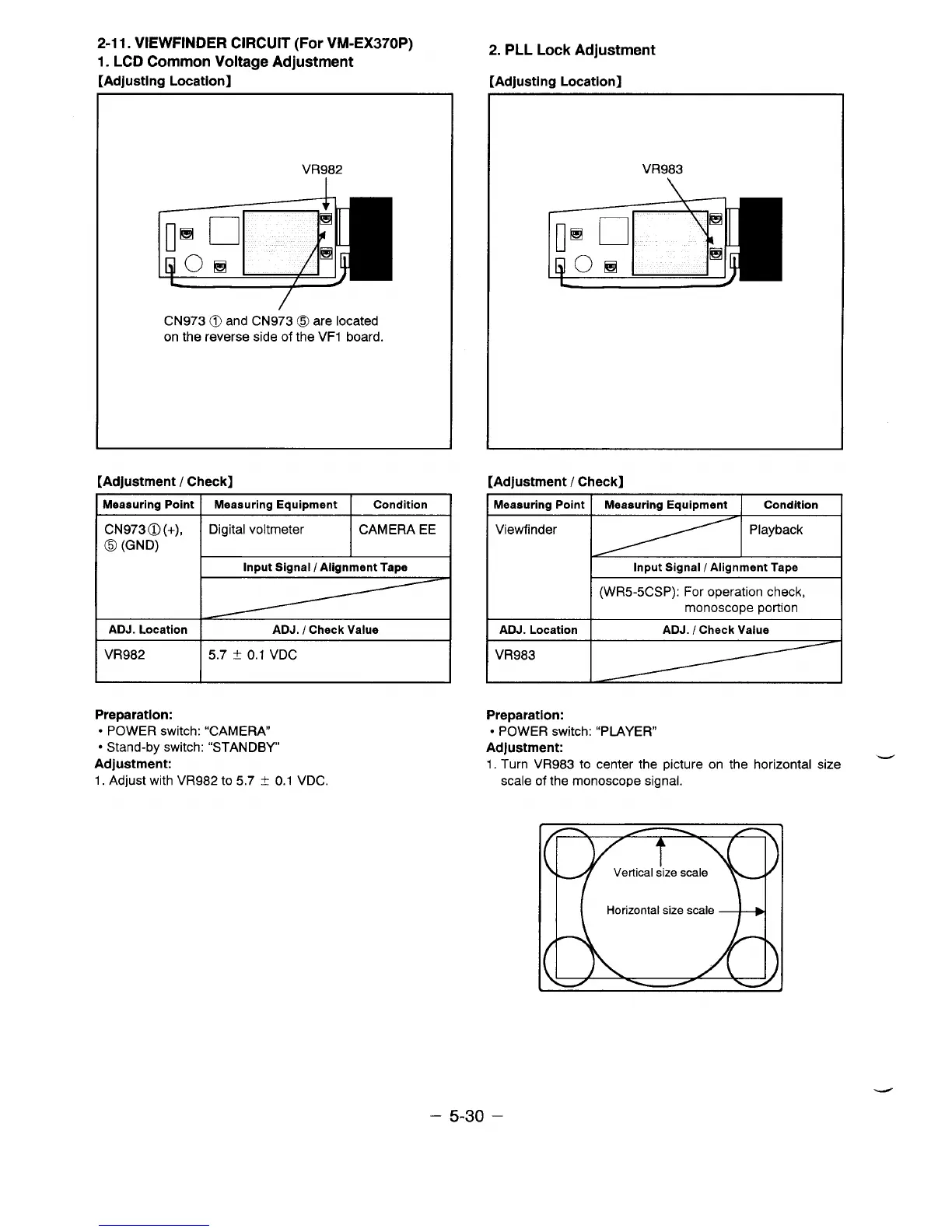

2-11. VIEWFINDER CIRCUIT (For VM-EX370P)
1. LCD Common Voltage Adjustment
[Adjusting Location]
CN973 @)and CN973 @ are located
on the reverse side of the VF1 board.
[Adjustment / Check]
Meaauring Point I Meaauring Equipment I Condition
I
CN973( 3)(+),
@ (GND)
~
ADJ. Location ADJ. / Check Value
VR982 5.7 t 0.1 VDC
Preparation:
● POWER switch: “CAMERA
● Stand-by switch: “STANDBY
Adjustment:
1. Adjust with VR982 to 5.7 t 0.1 VDC.
2. PLL Lock Adjustment
[Adiustina Locationl
[Adjustment / Check]
Meaauring point I
Measuring Equipment Condition
Viewfinder
I -l
“ayback
I
I
Input Signal / Alignment Tape
I
(WR5-5CSP): For operation check,
monoscope portion
I
ADJ. Location
ADJ. / Check Value
VR983
Preparation:
● POWER switch: “PIAYER”
Adjustment:
1. Turn VR983 to center the picture on the horizontal size
scale of the monoscope signal.
Horizontal size scale
.
– 5-30 –
