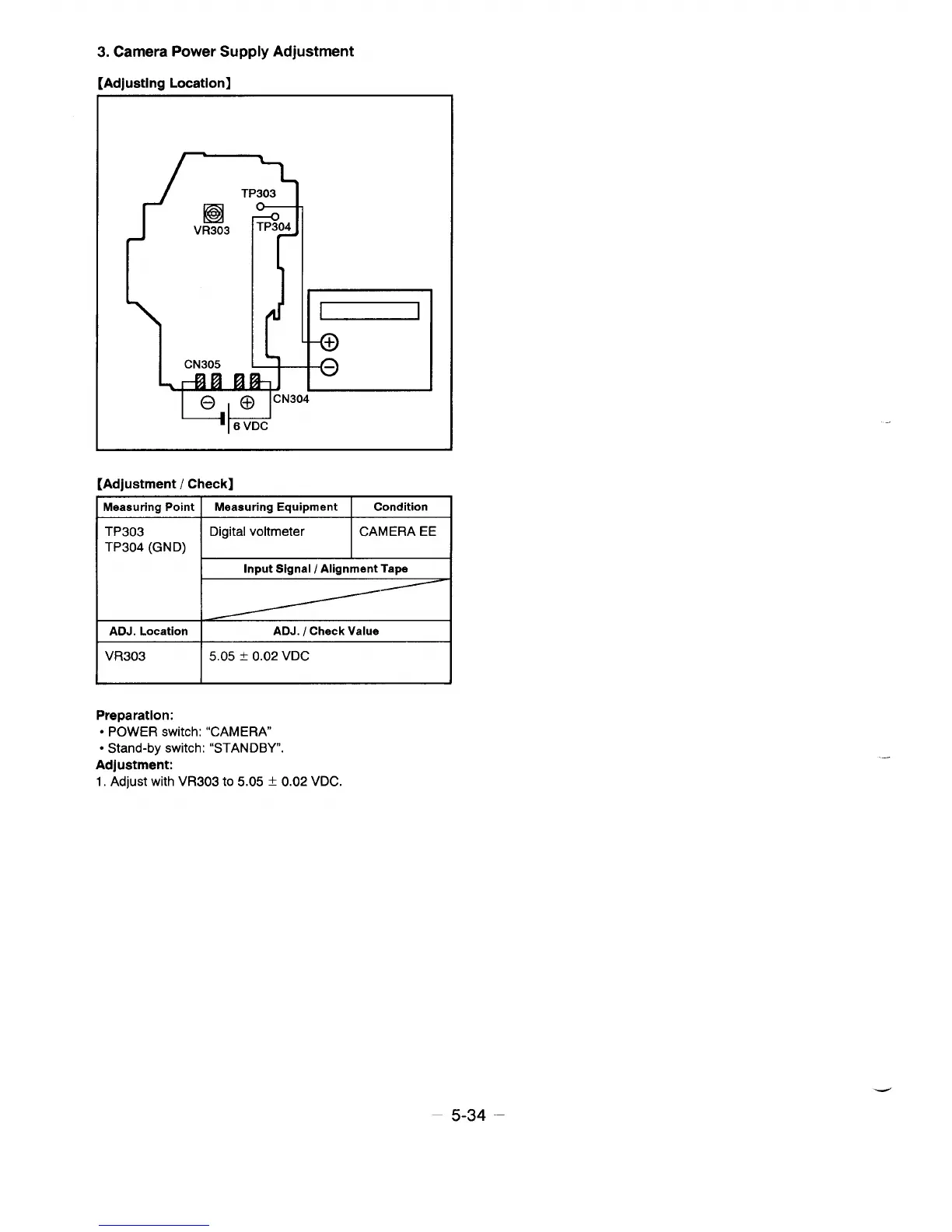

3. Camera Power Supply Adjustment
[Adjusting Location]
I
--@
CN305
-%
B E@
@@
CN304
m
16 VDC
[Adjustment / Check]
Meaauring Point
Meaeuring Equipment Condition
TP303
Digital voltmeter
CAMERA EE
TP304 (GND)
VR303
5.o5 + 0.02 VDC
Preparation:
● POWER switch: “CAMERA
● Stand-by switch: “STANDBY”.
Adjustment:
1. Adjust with VR303 to 5.05 t 0.02 VDC.
5-34 –
-
