Expanding the device and assigning device parameters
6.2 Installing and removing a memory module
SIMATIC IPC477D, IPC477D PRO
138 Operating Instructions, 11/2016, A5E31347228-AF
6.2
Installing and removing a memory module
The procedures for installing and removing the memory module are the same for all device
variants. The procedure is described using the example of the built-in unit.
The motherboard is equipped with one slot for an SO-DIMM DDR3 memory module. You
can use it to expand the memory capacity of the device to a maximum of 8 GB.
Note
Use only the memory modules recommended by Siemens AG. You can find additional
information in the section "
Accessories (Page 32)".
Requirements
● The device is disconnected from the power supply.
● The device is open.
● Fir 12" touch built-in unit only:
The SSD is removed, see the section "Replacing SSD (device with 12" display)
(Page 156)".
Procedure
Note
Note the protective measures required when working with ESD in the section "
ESD guideline
(Page
185)".

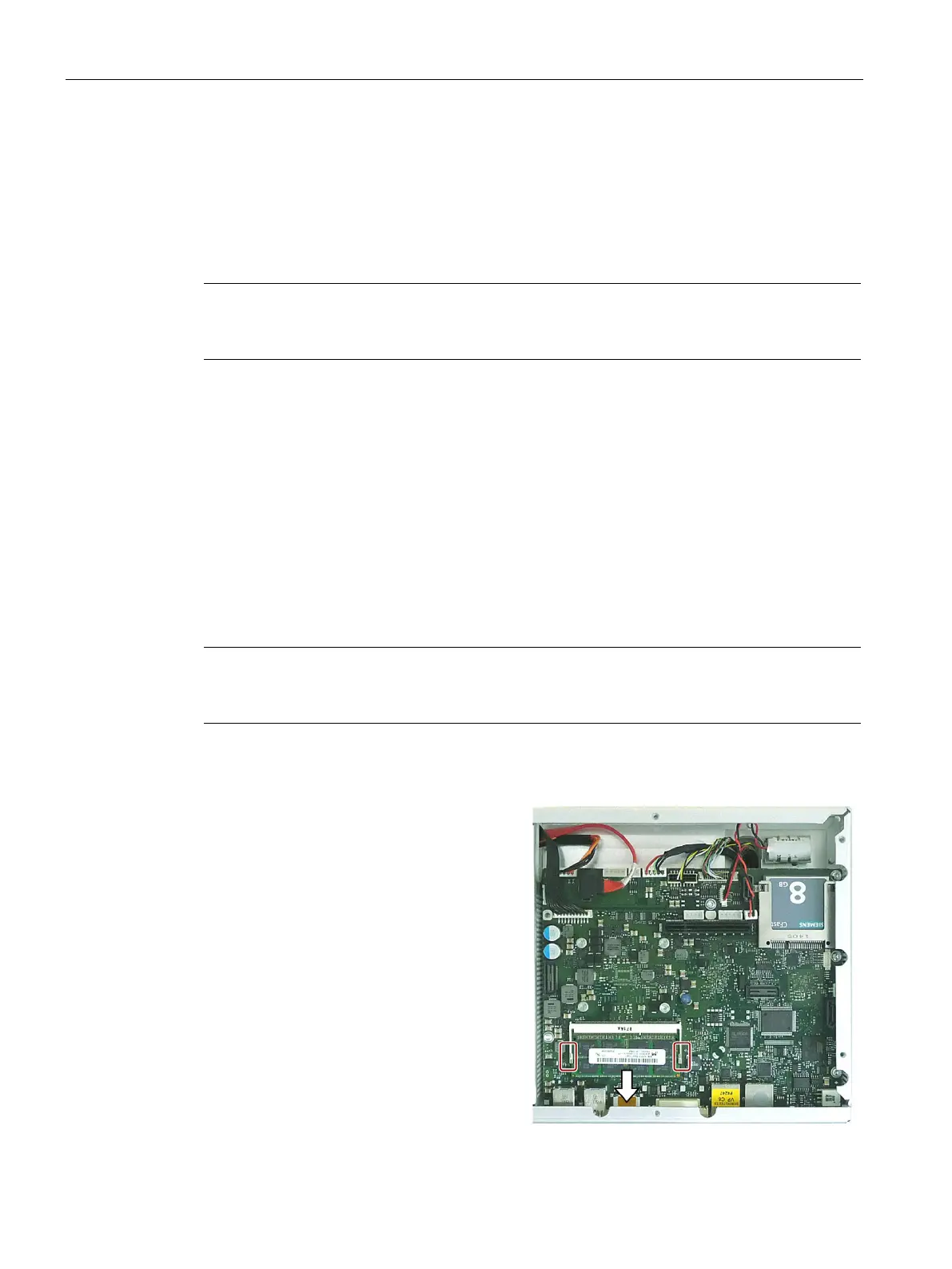

Removal
1.
Press the marked latches towards the
outside.
The memory module tilts forward.
2.
Pull the memory module out of the slot in
the direction of the arrow.
