Mounting and connecting the device
3.2 Installing the built-in unit
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
67

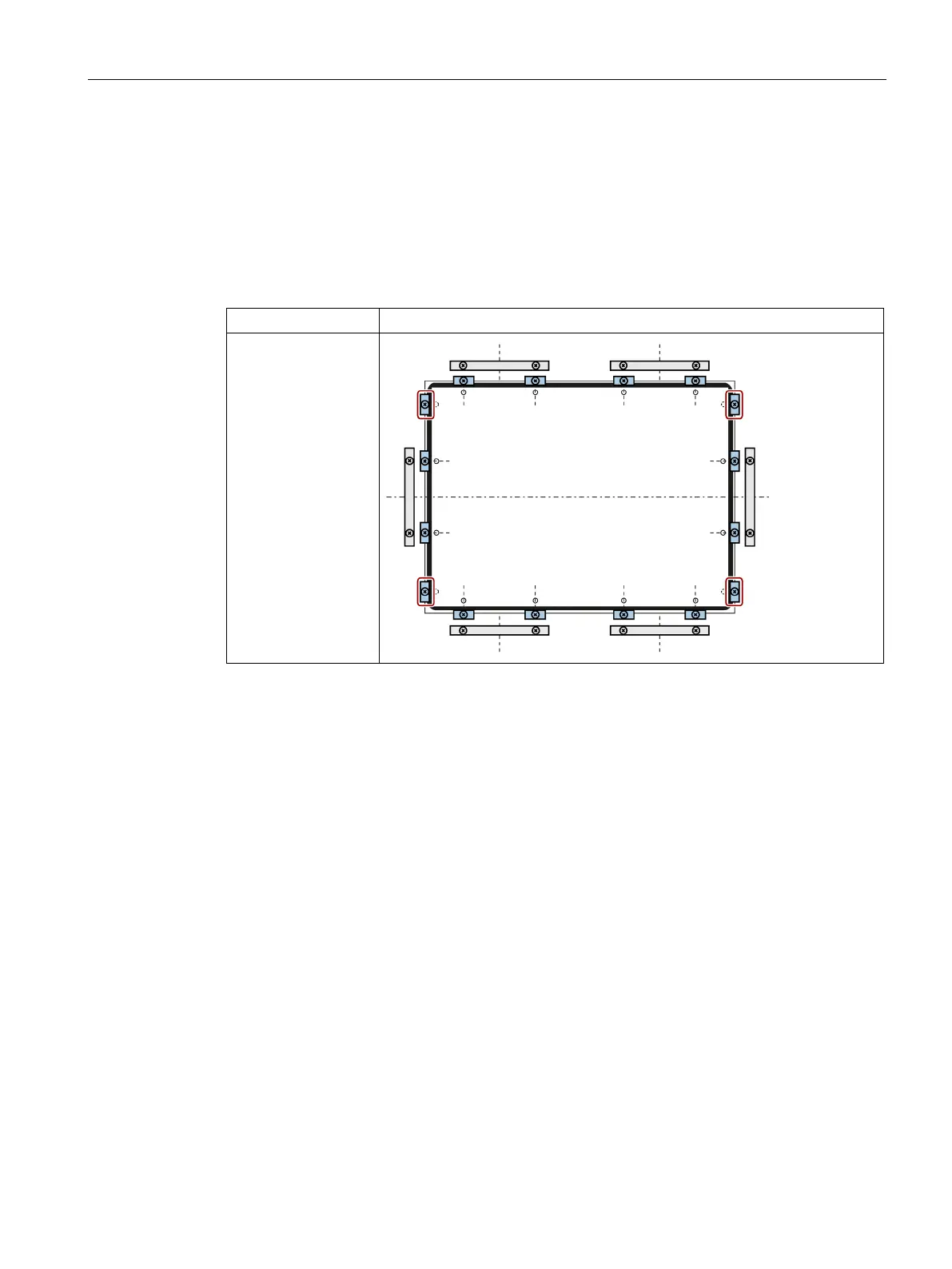

Position of the mounting clips for IP66-complaint installation
Positions of the mounting clips
To achieve IP66 degree of protection instead of IP65 for a device with capacitive multi-touch
screen, fasten 4 additional mounting clips (available as accessories) at the positions marked
by the red boxes. The 15" display meets IP66 even without additional mounting clips.
Touch screen device
with:
• 19" display
• 22" display
