Mounting and connecting the device
3.1 Preparing for mounting
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
57
3.1.4
PRO device
3.1.4.1
Permitted mounting positions
Mounting position
The mounting positions described below are permitted for the PRO devices.
● Standard mounting position: Vertical installation in horizontal format
● Inclined installation in horizontal format with a vertical inclination of maximum ±45°
Upright mounting in vertical format is prohibited for the PRO device

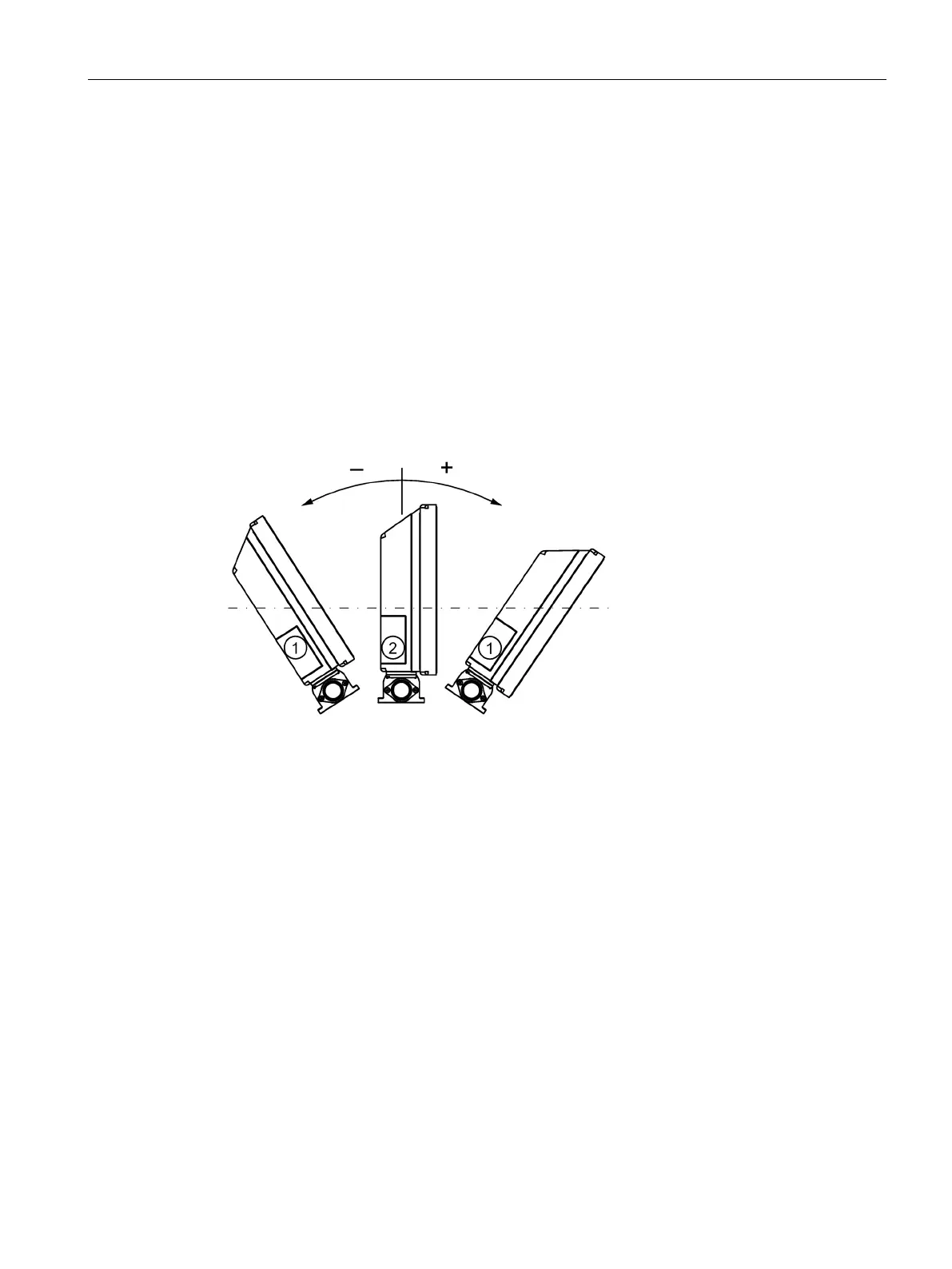

Device version "prepared for stand/extension elements (flange on bottom)"
Mounting
position
Deviation from the vertical
①
Inclined
≤ 45°
②
Vertical
0°
