Siemens SIMATIC IPC477D User Manual

Technical information
8.3 Dimension drawings
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
207
8.3.12
Dimension drawing of labeling strips
This section contains the dimensions of the labeling strips for the touch/key variant of the
built-in unit with 15" display. You will find labeling strip templates with a scale of 1:1 as a
Word file:
● On the Internet at:
Labeling strips for 15" widescreen
(http://support.automation.siemens.com/DE/view/en/59000814)
● In the "Support" folder on the WinCC installation DVD

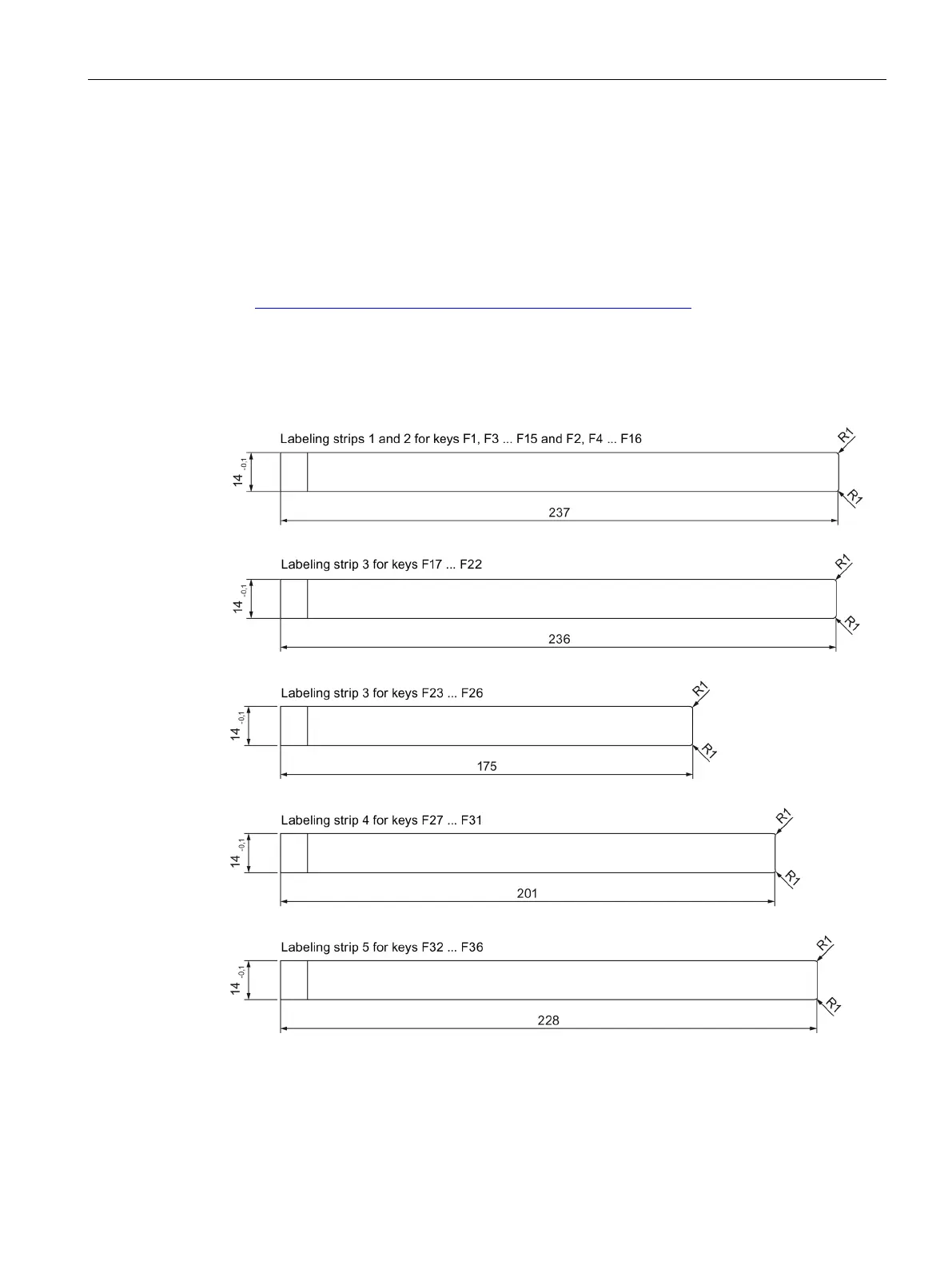

Dimensions for labeling strips of 15" display
