Mounting and connecting the device
3.2 Installing the built-in unit
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
61
Mounting clips or mounting brackets, position for IP65-compliant installation

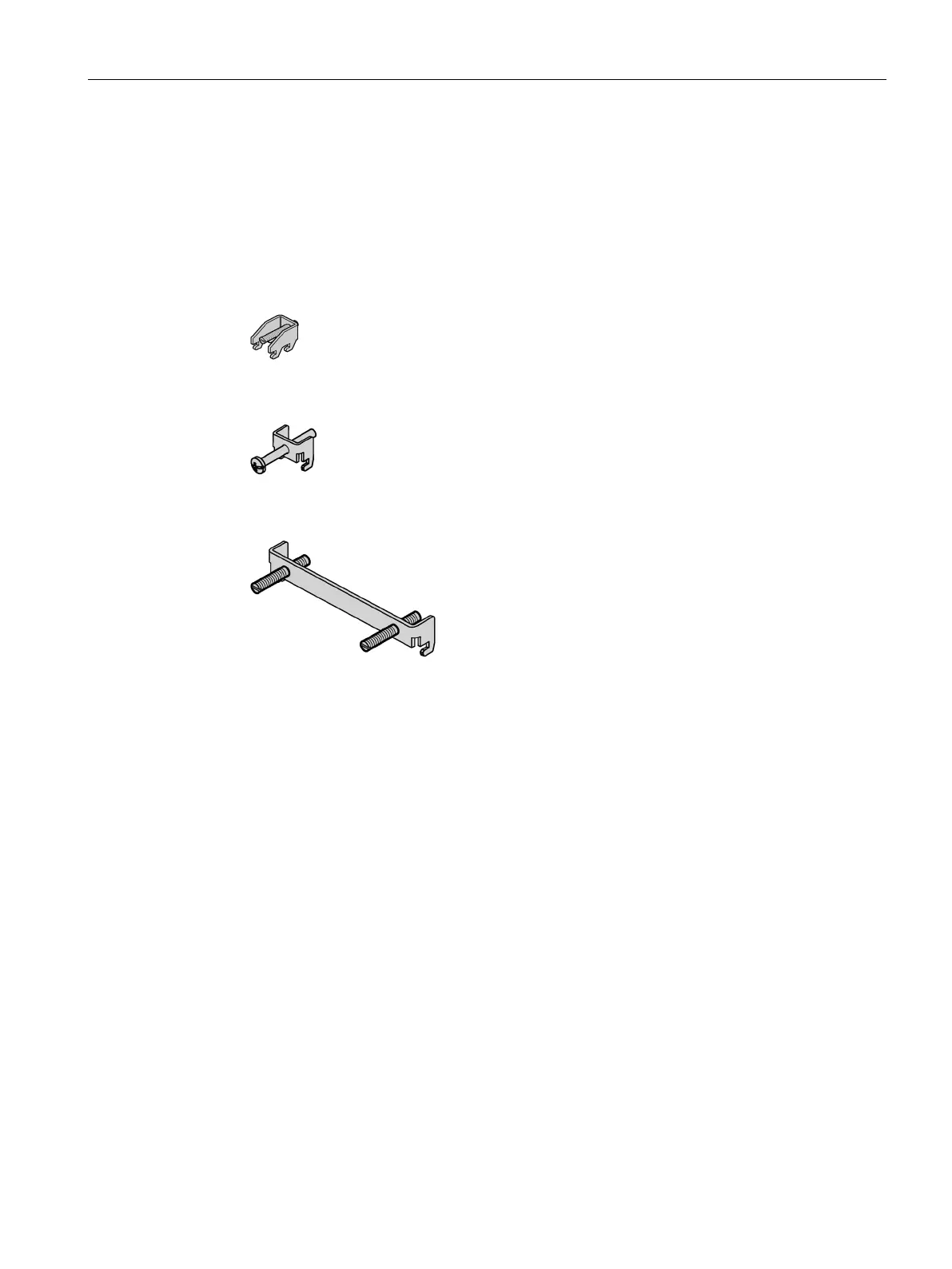

Types of mounting clips and mounting brackets
You can mount the device as follows:
● Device with 12" display:
With 12 mounting clips (aluminum), included in the product package
● Device with 15", 19" or 22" display:
With 12 mounting clips, steel (included in the product package)
● Device with 15", 19" or 22" display:
With 6 mounting brackets (available as accessories)
