Mounting and connecting the device
3.1 Preparing for mounting
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
53
Preparing the mounting cutout
Note
Stability of the mounting cutout
The material in the area of the mounting cutout must provide sufficient strength to guarantee
the enduring and safe mounting of the HMI device.
The force of the clamps or operation of the device may not lead to deformation of the
material in order to achieve the degrees of protection described below.
nformation in the section "Installation guidelines (Page 59)".
Requirements for complying with degree of protection
The degree of protection of the HMI device can only be guaranteed if the following
requirements are met:
● Material thickness at the mounting cutout with IP65 degree of protection or Enclosure
Type 4X / 12 (indoor use only): 2 mm to 6 mm
● Permitted deviation from plane at the mounting cutout: ≤ 0.5 mm
This condition must be fulfilled for the mounted HMI device.
● Permissible surface roughness in the area of the mounting seal: ≤ 120 µm (R
z
120)

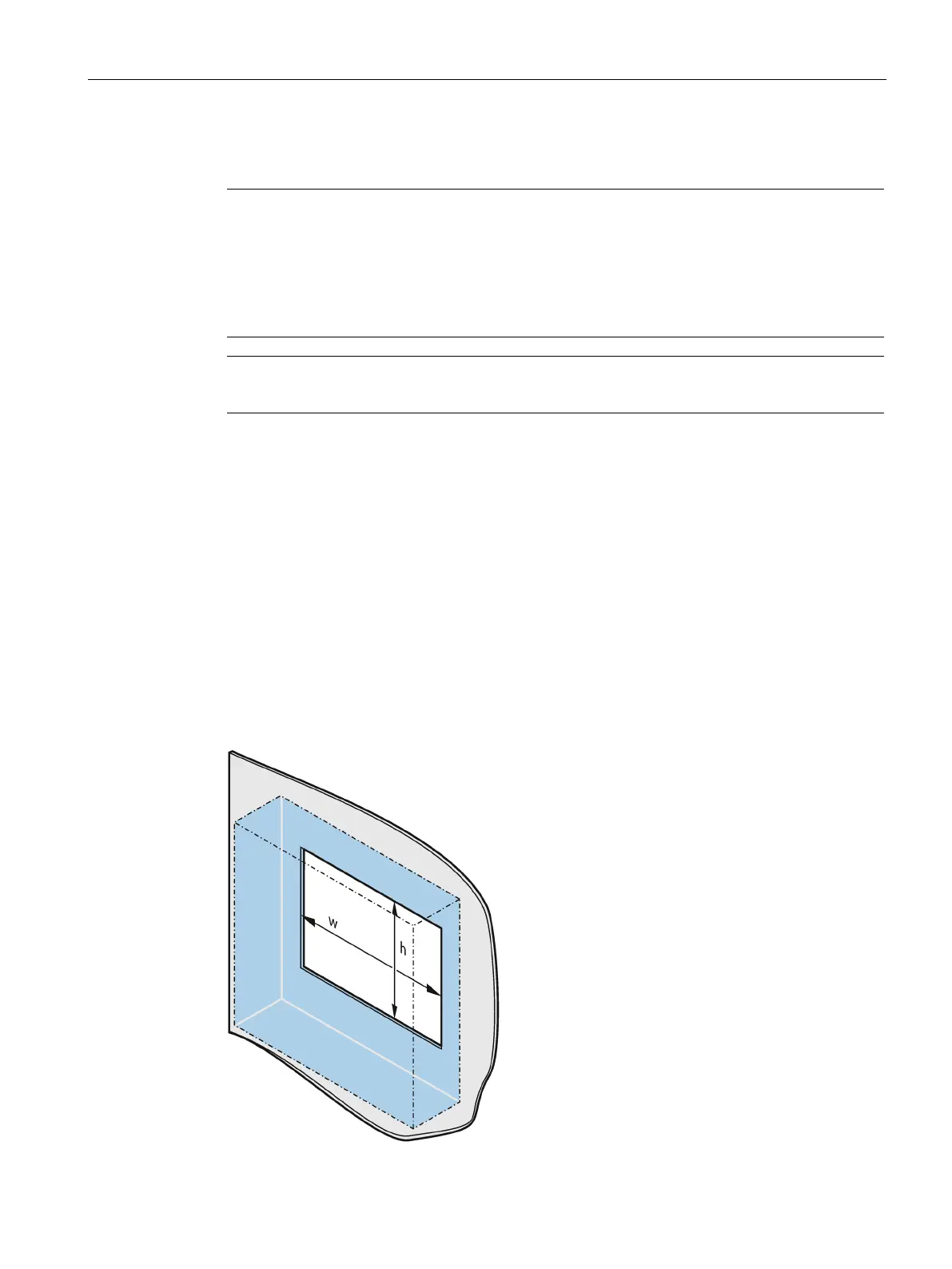

Dimensions of the mounting cutout
