Maintaining and servicing your device
7.4 Installing and removing hardware
SIMATIC IPC477D, IPC477D PRO
156 Operating Instructions, 11/2016, A5E31347228-AF
Replacing SSD (device with 12" display)
Requirement
● The device is disconnected from the power supply.
● The device is open, see the section "Opening the built-in unit (Page 133)".
● SSD
● T10 screwdriver

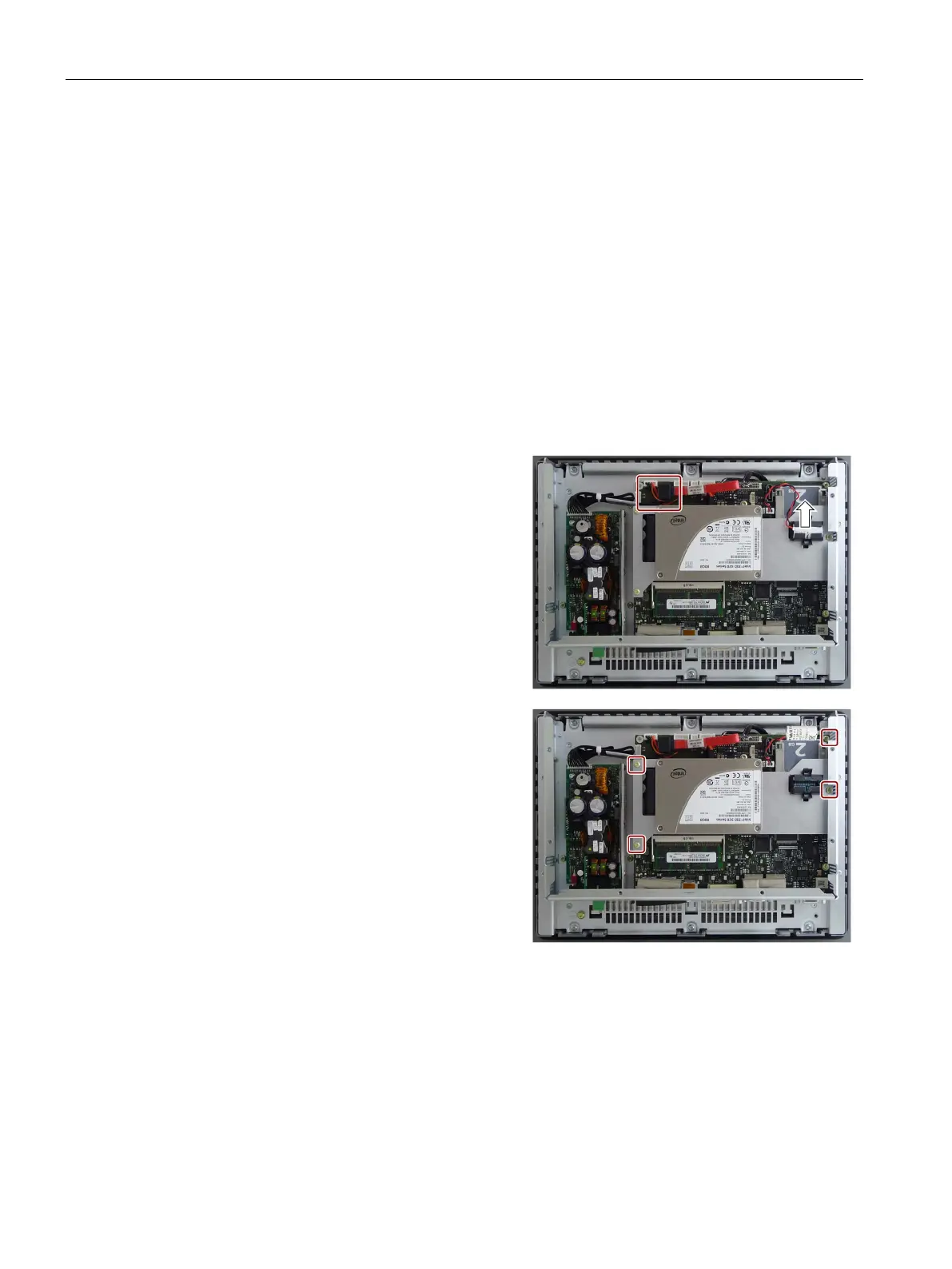

Unplug the two marked connectors.
Press the metal connector l
atch at the
front of the connector to remove the
SATA connector.
-up battery from its
holder as indicated by the arrow.
ry connector. If
you remove the battery connector, you
need to configure the BIOS setup again
and you have to set the date and time
once again.
Remove the marked screws and take the
hard disk holder with the SSD out of the
device.
