8.3 Dimension drawings
SIMATIC IPC477D, IPC477D PRO
188 Operating Instructions, 11/2016, A5E31347228-AF
8.3
Dimension drawings
8.3.1

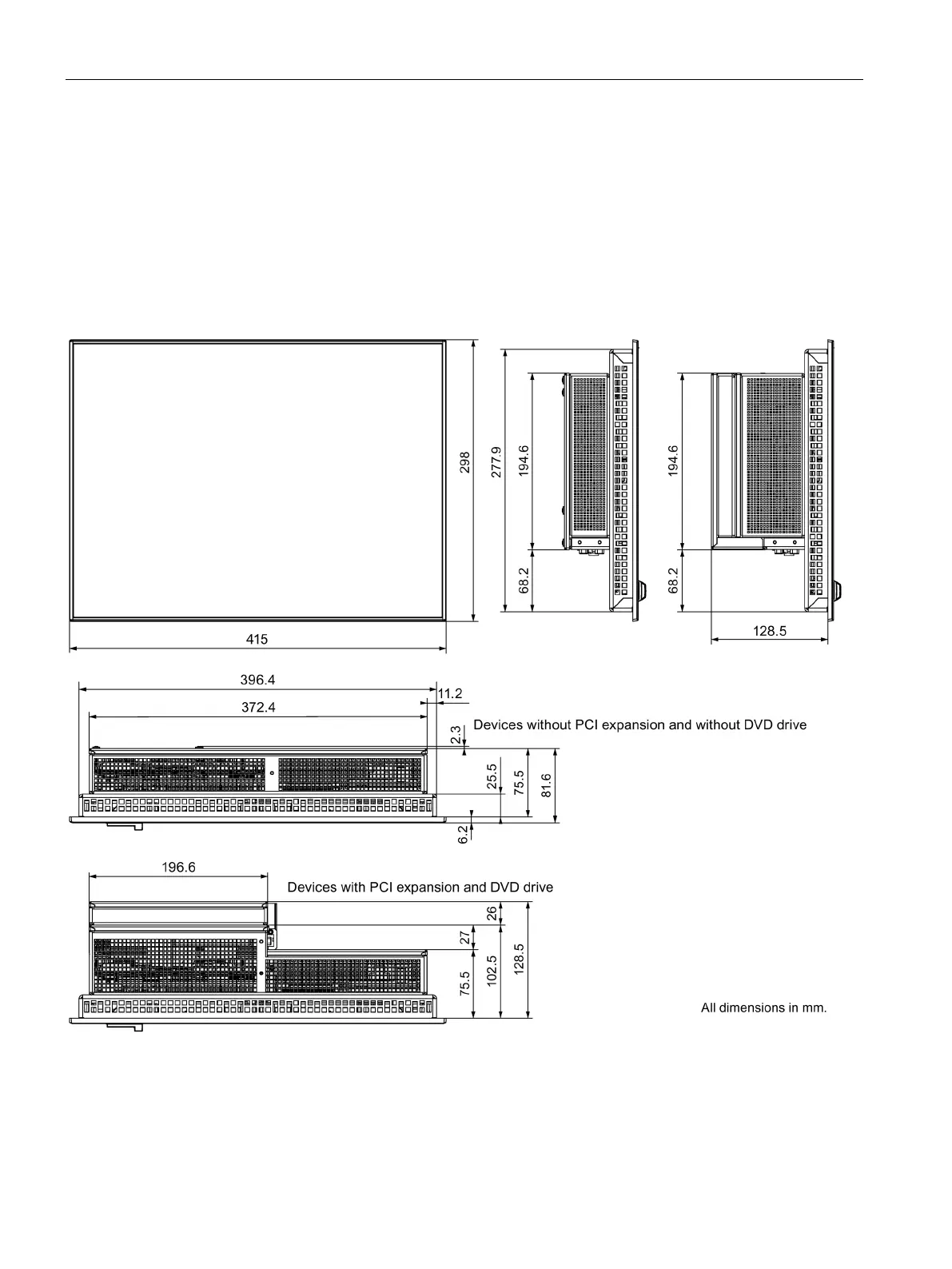

Dimension drawing of 15" device with capacitive multi-touch screen
The figure shows the front view and directly associated side view and top view of a device
without PCI expansion and DVD drive. The side view and top view of a device with PCI
expansion and DVD drive are shown beyond at a distance.
