Technical information
8.3 Dimension drawings
SIMATIC IPC477D, IPC477D PRO
196 Operating Instructions, 11/2016, A5E31347228-AF
8.3.5

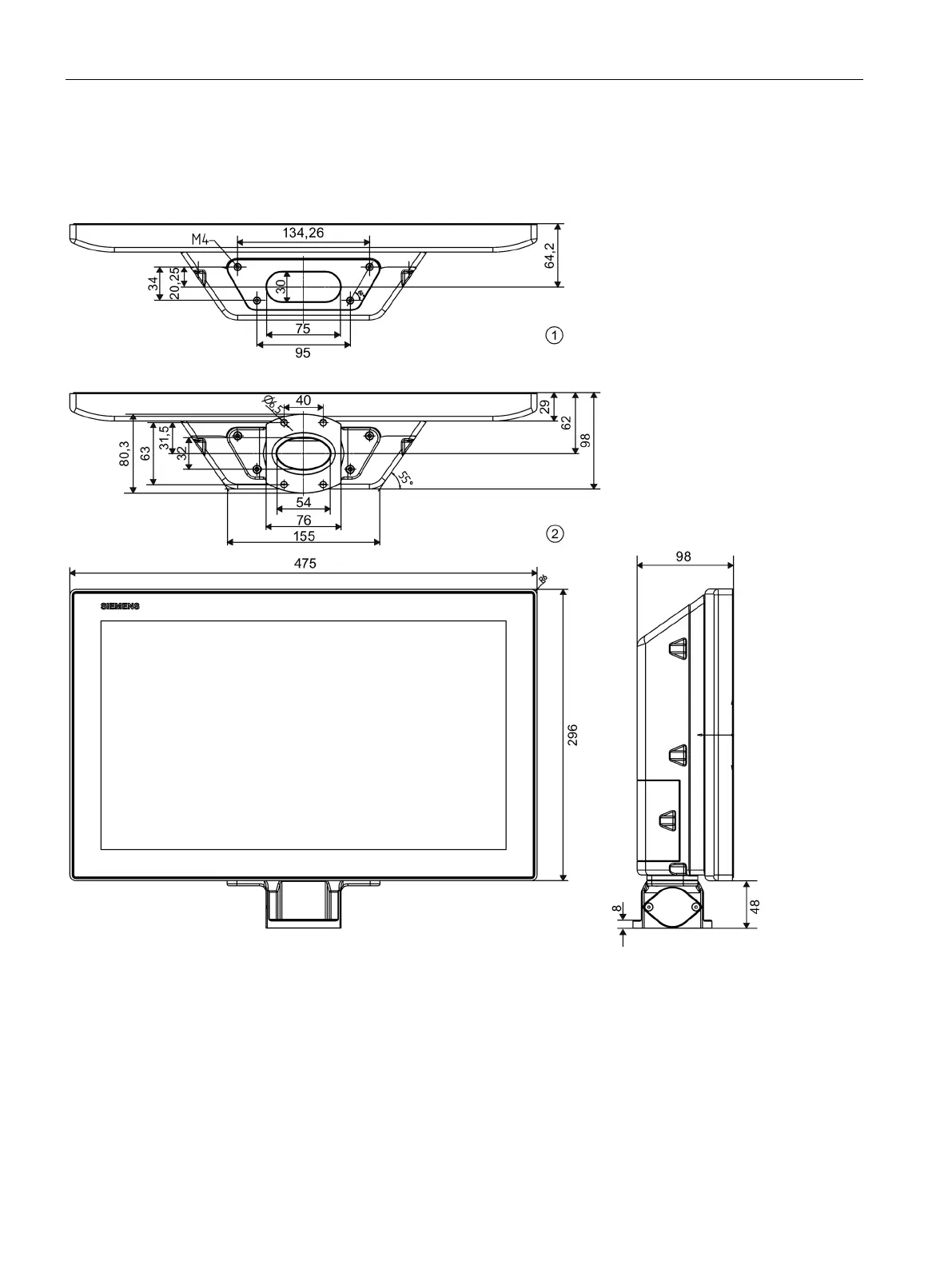

Dimension drawing 19" PRO device with capacitive multi-touch screen
Prepared for stand
①
Without base adapter
②
With base adapter
All dimensions in mm
