Overview
1.2 Design of the built-in units
SIMATIC IPC477D, IPC477D PRO
24 Operating Instructions, 11/2016, A5E31347228-AF

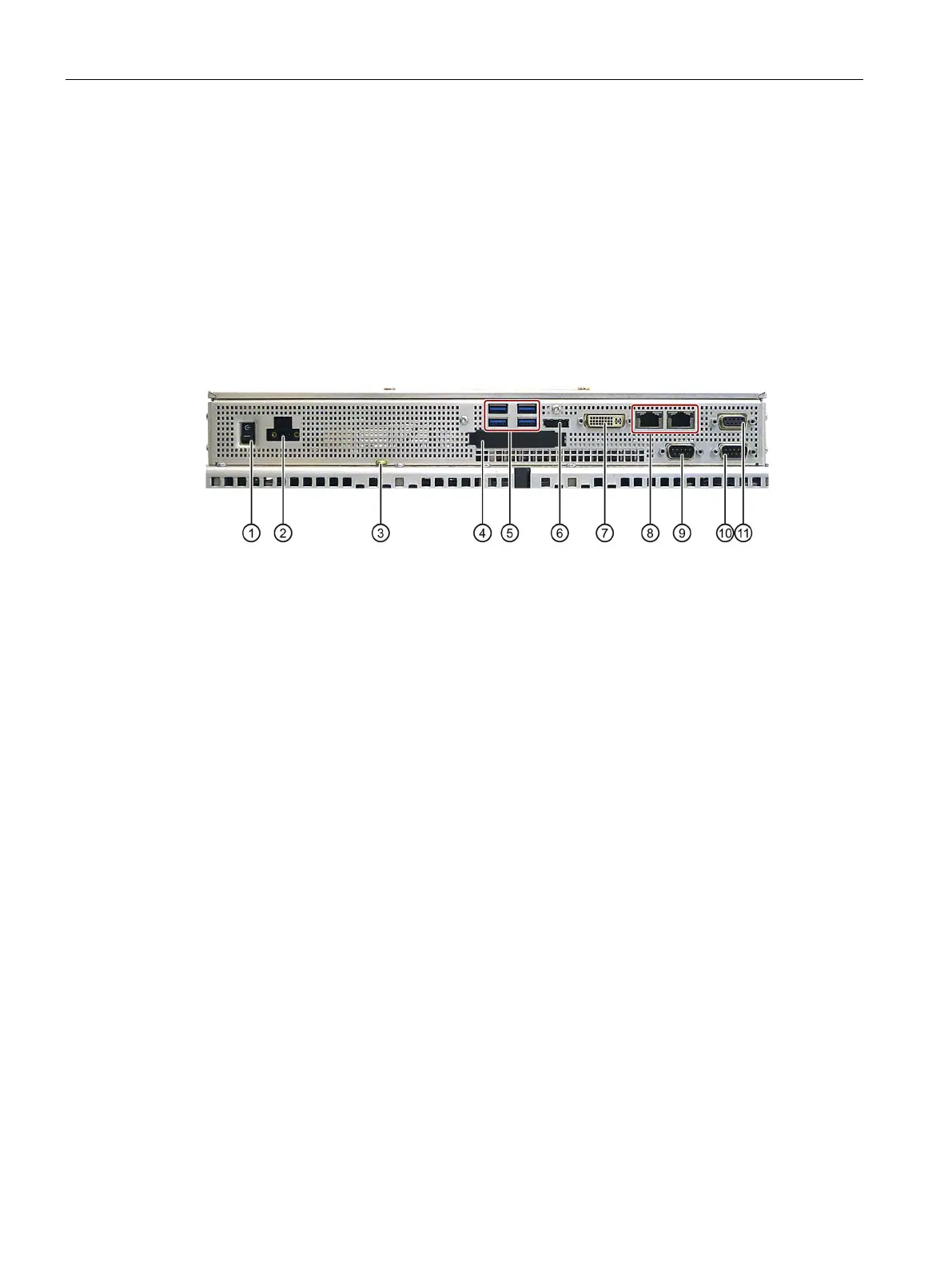

Interfaces and operator controls for devices with 24 V DC power supply
The figures showing the interfaces apply to the following devices:
● IPC477D with 12" display
● IPC477D with 15" display
● IPC477D with 19" display
● IPC477D with 22" display
Devices with PROFIBUS interface
Protective conductor connection
Slot for external CFast card
USB 3.0 high speed/high current
DVI-I port DVI connector for CRT or LCD monitor (VGA via
DVI-VGA adapter) with DVI interface
2 x Ethernet port RJ45 Ethernet connection 1 for 10/100/1000 Mbps or
RJ45 Ethernet connection 2 for 10/100/1000 Mbps
(not for PROFINET device)
Serial interface, 9-pin D-sub plug
Serial interface, 9-pin D-sub plug
PROFIBUS DP/MPI interface PROFIBUS DP/MPI interface RS 485, isolated,
9-pin D-sub socket
