2.5 User memory concept
SIMOTION D410
Commissioning Manual, 02/2012
33
2.5 User memory concept
2.5.1 SIMOTION D410 memory model

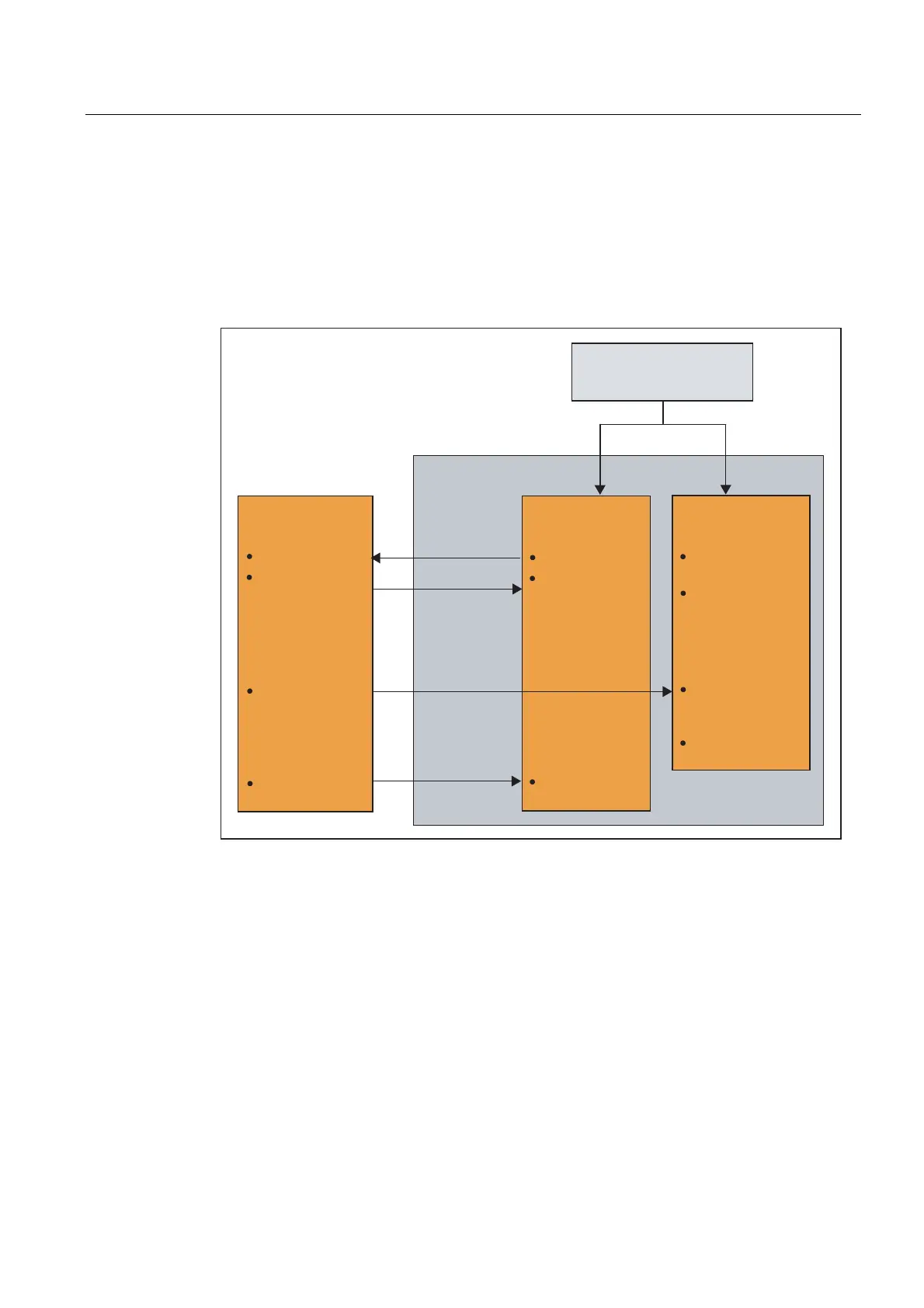

The following figure provides an overview of the SIMOTION D410 memory model.
3URJUDPPLQJGHYLFH
(66,027,216&287
73V
8VHUGDWD
6,027,21NHUQHO
6,027,21b'
9RODWLOHGDWD
73V
8VHUGDWD
6,027,21NHUQHO
1RQYRODWLOHGDWD
'LDJQRVWLFVEXIIHU
5HWHQWLYHXVHUDUHD
UHWDLQYDULDEOH
,3SDUDPHWHUV
'3SDUDPHWHUV
,3SDUDPHWHUV
'3SDUDPHWHUV
$EVROXWHHQFRGHU
RIIVHW
&RPSDFW)ODVK&DUG
5$0WR520
'VWDUWXS
'VWDUWXS
'VWDUWXS
'RZQORDG
Figure 2-2 SIMOTION D410 memory model
As a result, the SIMOTION Kernel (D410 firmware) contains the functions required for
virtually all applications, and essentially acts as a PLC featuring an IEC 61131-3-compliant
command set as well as system functions for controlling various components, such as inputs
and outputs.
The SIMOTION Kernel can be expanded by loading technology packages (TPs), e.g. for
motion control or temperature controllers.
The next chapters provide information pertaining to user memories and to the sequences of
specific user actions.
