Initial Inspections
3-10 7SJ62 Manual
C53000-G1140-C121-1

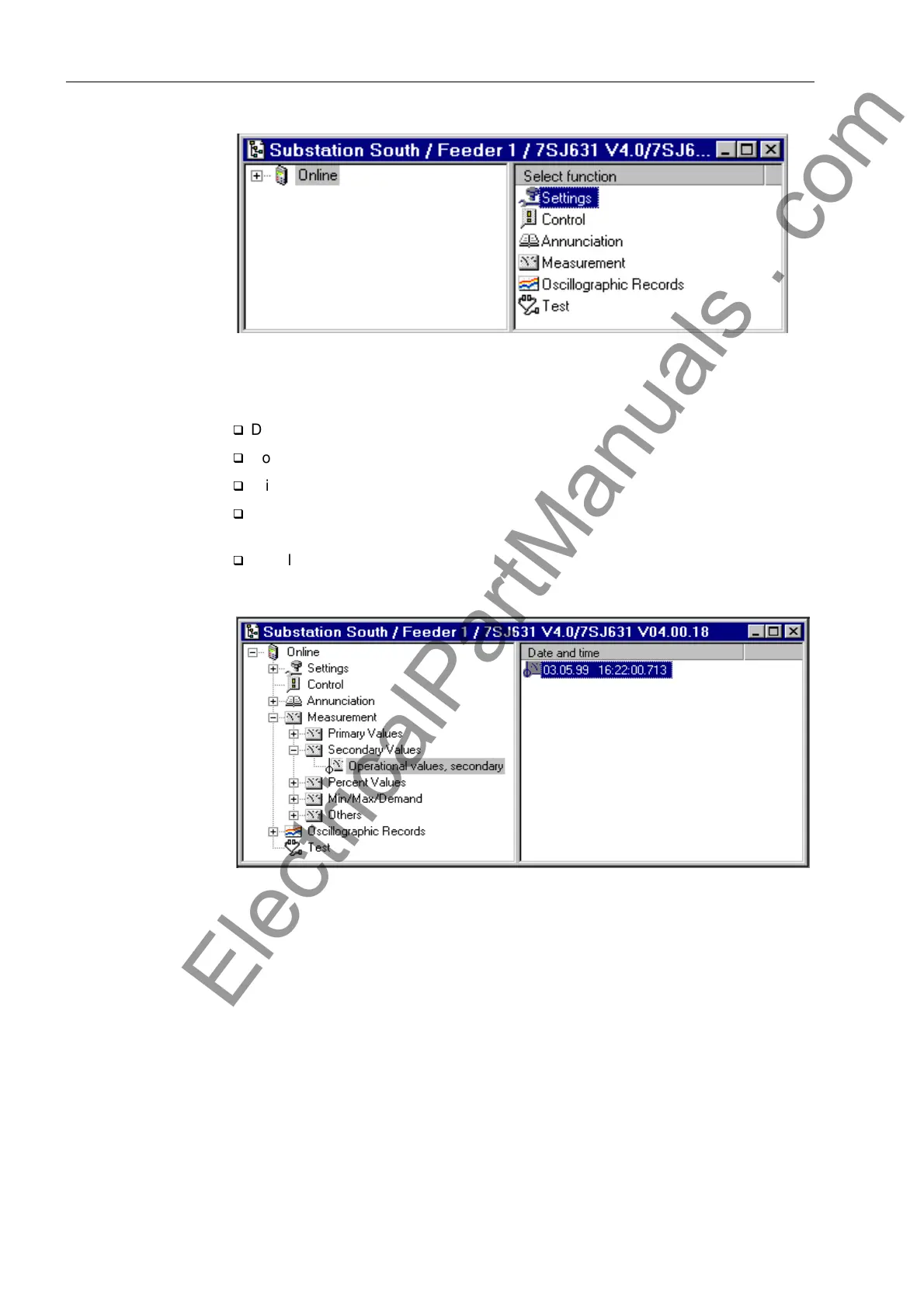

Figure 3-7 DIGSI
®
4 — Online Initial Window (Example)
Measurement
Viewing
As an example the procedure for viewing the measured values is described.
q
Double click on 0HDVXUHPHQW in the navigation window (left).
q
Double click on the subdirectory 6HFRQGDU\9DOXHV in the navigation window.
q
Click on 2SHUDWLRQDOYDOXHVVHFRQGDU\.
q
The present date and time are shown in the data window (right), as illustrated in Fig-
ure 3-8.
q
Double click on this entry in the data window.
Figure 3-8 DIGSI
®
4 — Viewing the Secondary Operating Measured Values
A table of the secondary operating measured values appears, as shown in Figure 3-9.
Since no AC currents or voltages are present, all measured values are close to zero.
Deviations of the last digit are insignificant. The measured values are automatically
updated.
In the same manner, other measured and counter values can be viewed.
