8.2 Operator controls and connection terminals

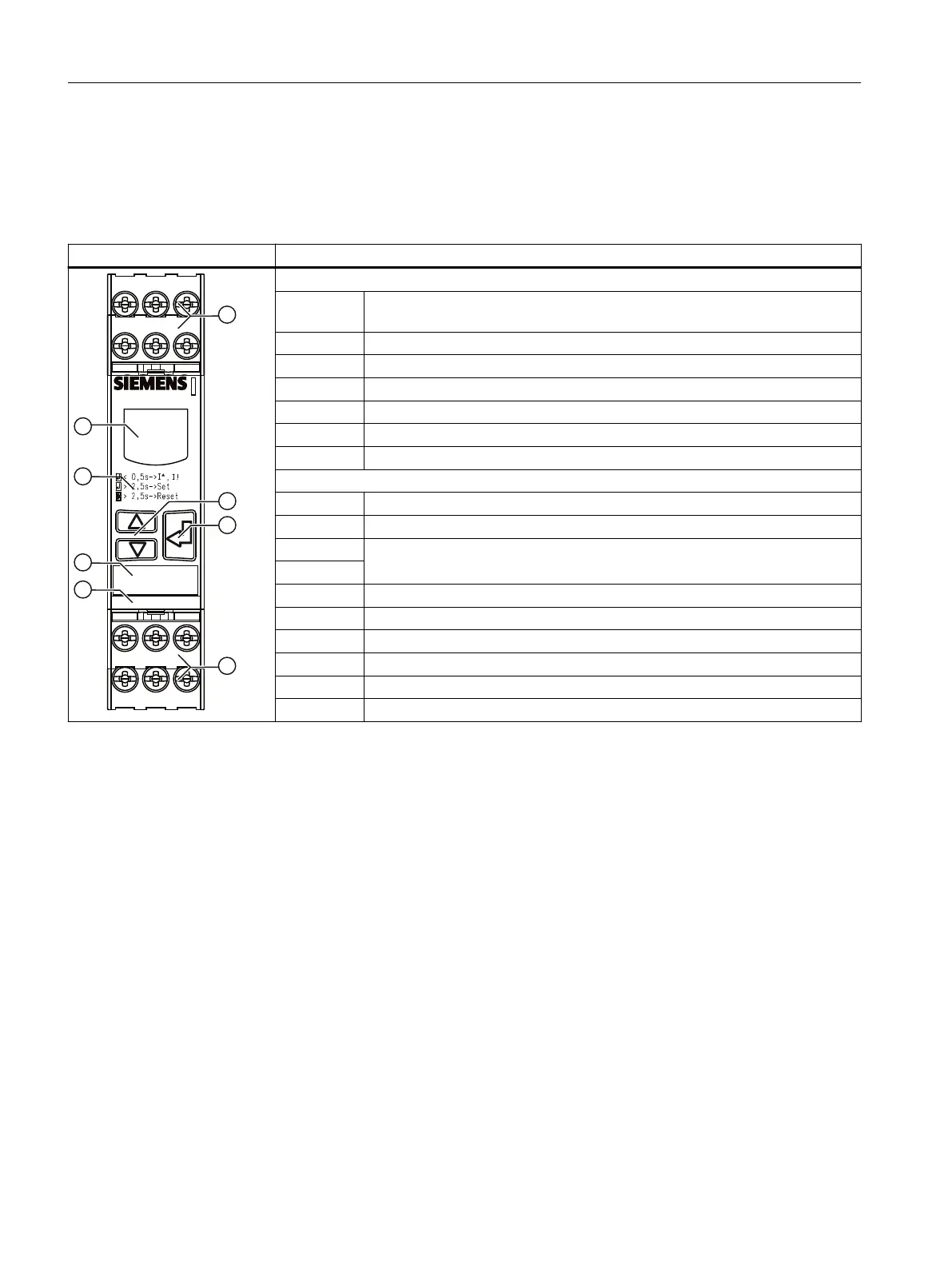

3UG4625 front view/terminal labeling
Front view Description
A2-
A1+
24
2122
12
14
11
3UG4625-.....
SIRIUS
C1 C2
24-240V
AC/DC
Position digits
① Terminal block (removable):
Connection is possible using screw terminals or spring-loaded terminals.
② Arrow keys for menu navigation
③ SET key for menu navigation
④ Device article number
⑤ Label
⑥ Legend for menu
⑦ Display for parameterization, actual-value indication, and diagnostics
Terminal labels
A1+ Rated control supply voltage ∼ / +
A2- Rated control supply voltage ∼ / -
C1 Connection for 3UL23 residual current transformer
C2
12 Output relay K1 CO contact NC contact (alarm output)
11 Output relay K1 CO contact root
14 Output relay K1 CO contact NO contact
22 Output relay K2 CO contact NC contact (warning output)
21 Output relay K2 CO contact root
24 Output relay K2 CO contact NO contact
You can nd additional information on the connection terminals and the permissible conductor
cross-sections in the Chapter "Connection methods (Page 23)".
You can nd information on connecting in the Chapter "Circuit diagrams (Page 148)".
3UG4625 residual current monitoring relay with 3UL23 transformer
8.2 Operator controls and connection terminals
SIRIUS 3UG4 / 3RR2 monitoring relay
136 Equipment Manual, 07/2021, NEB927043002000/RS-AD/005
