3UG4983-.A voltage reducer module for extending the voltage range
The 3UG4983-.A voltage reducer module can be used to extend the measuring range of the
rated line voltage U
n
to be monitored. The voltage reducer module is used to connect the
3UG4583 insulation monitoring relay to systems with up to 690 V AC and 1000 V DC. The voltage
reducer module is connected to terminals VS, V1+ and V1- of the insulation monitoring relay.
These accessories are described in Chapter "3UG4983 voltage reducer module for the
3UG4583-1CW30 monitoring relay (Page 267)".

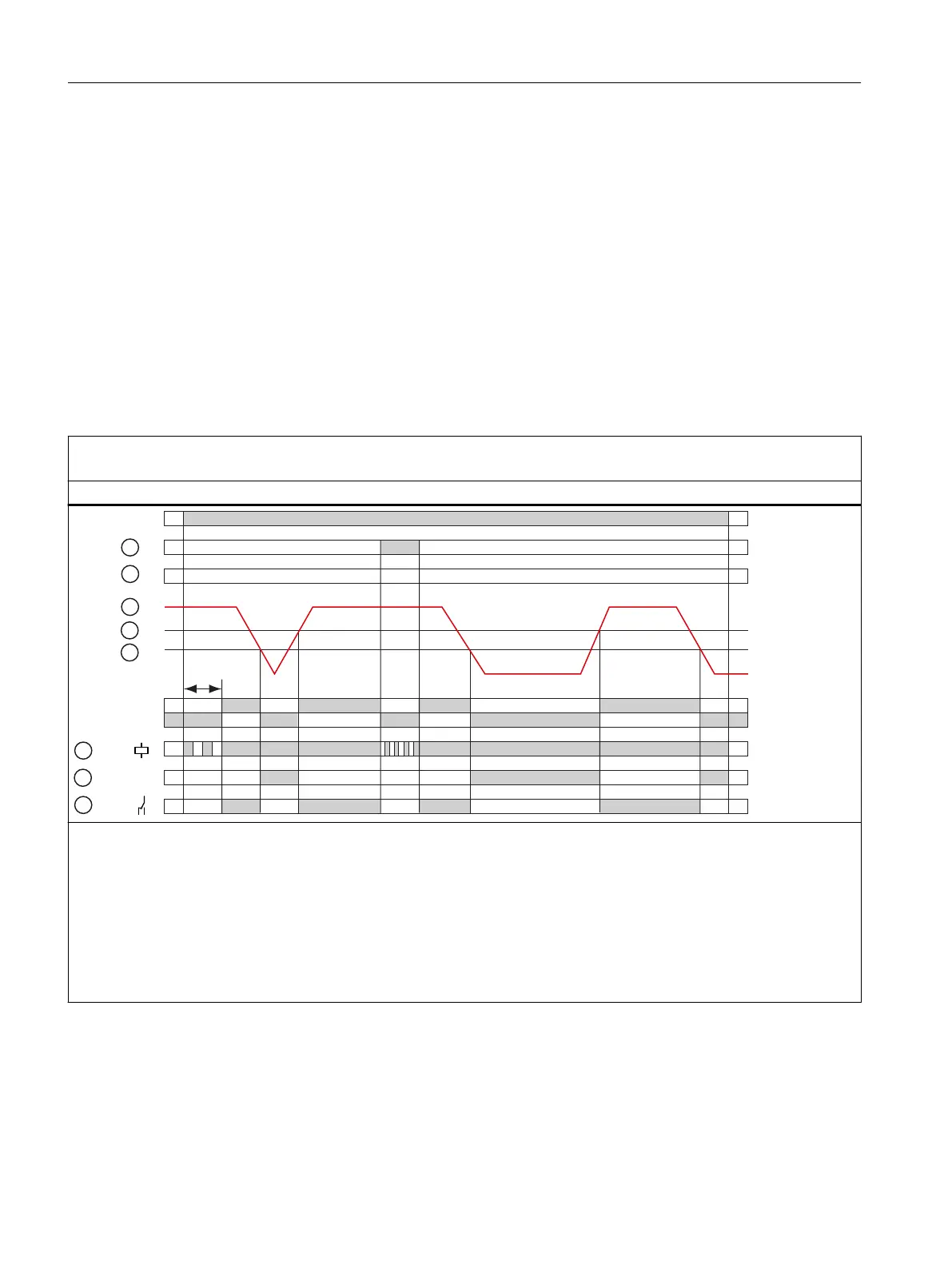

9.4.2.1 Function diagrams
3UG4582 function diagrams
Relay switching behavior = NC
(closed-circuit principle)
Without fault storage, autoreset
W
V
$$
/('
/('
/('
)
① Test (Y1-Y3)
② Reset (Y2-Y3)
③ Measured value
④ Hysteresis
⑤ Threshold
⑥ Green
⑦ Red
⑧ Yellow
t
S
= Time for internal device test after applying the supply voltage
3UG458. insulation monitoring relay.
9.4 3UG4582/3UG4583 insulation monitoring relays
SIRIUS 3UG4 / 3RR2 monitoring relay
182 Equipment Manual, 07/2021, NEB927043002000/RS-AD/005
