C.2.2 Dimension drawings 3UG4 monitoring relays. (3 connecting terminals)
3UG4. monitoring relays with 3 connecting terminals (screw-type connection)
6,5,86













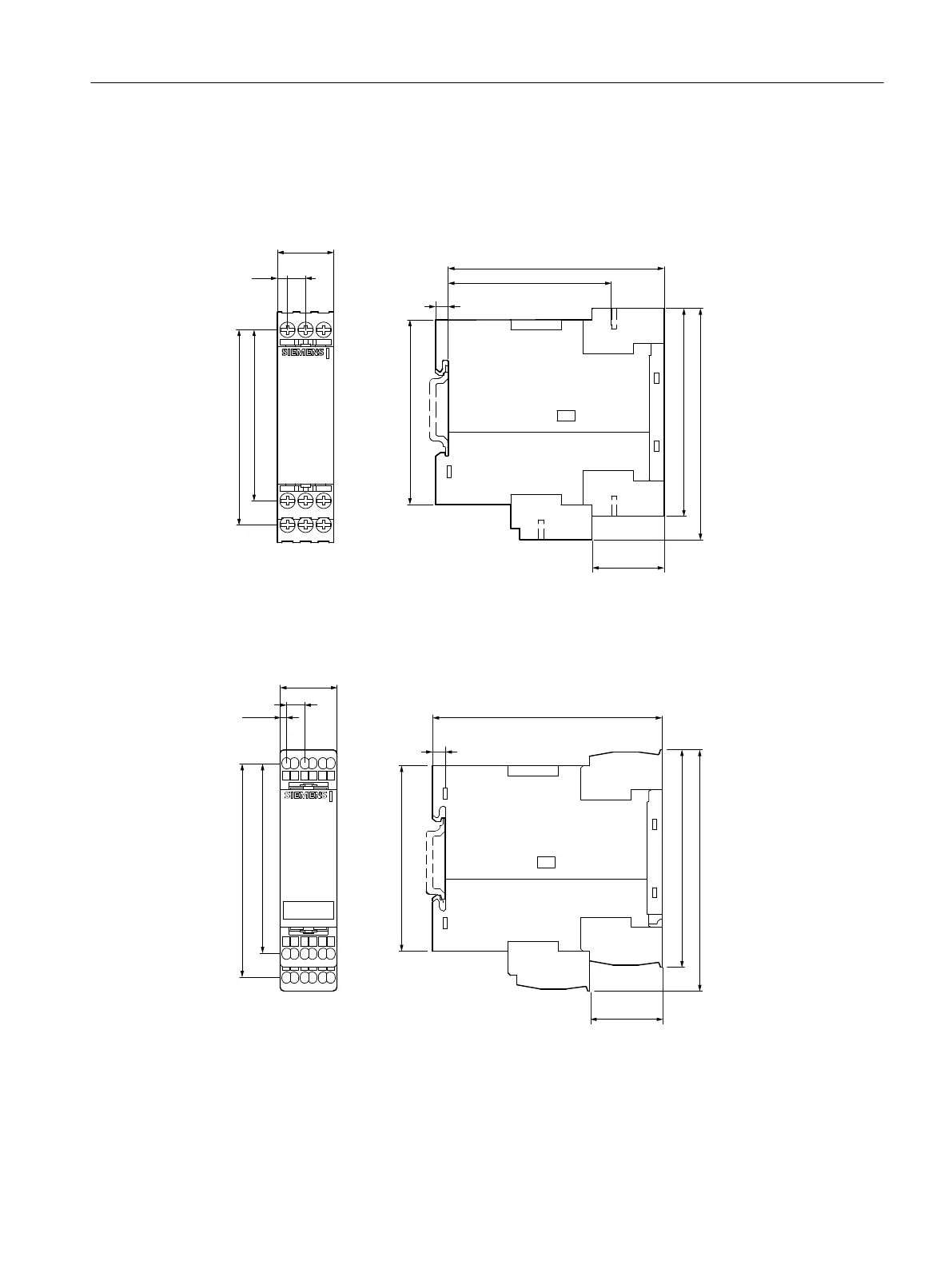

Figure C-19 3UG4. monitoring relays with 3 connecting terminals with screw-type connections
3UG4. monitoring relays with 3 connecting terminals (spring-loaded connections)
6,5,86











Figure C-20 3UG4. monitoring relays with 3 connecting terminals with spring-loaded connections
Dimension Drawings
C.2 Dimension drawings 3UG4 monitoring relays
SIRIUS 3UG4 / 3RR2 monitoring relay
Equipment Manual, 07/2021, NEB927043002000/RS-AD/005 299
