10.2 3UG4631 / 3UG4632 voltage monitoring relay
10.2.1 Operator controls and connection terminals

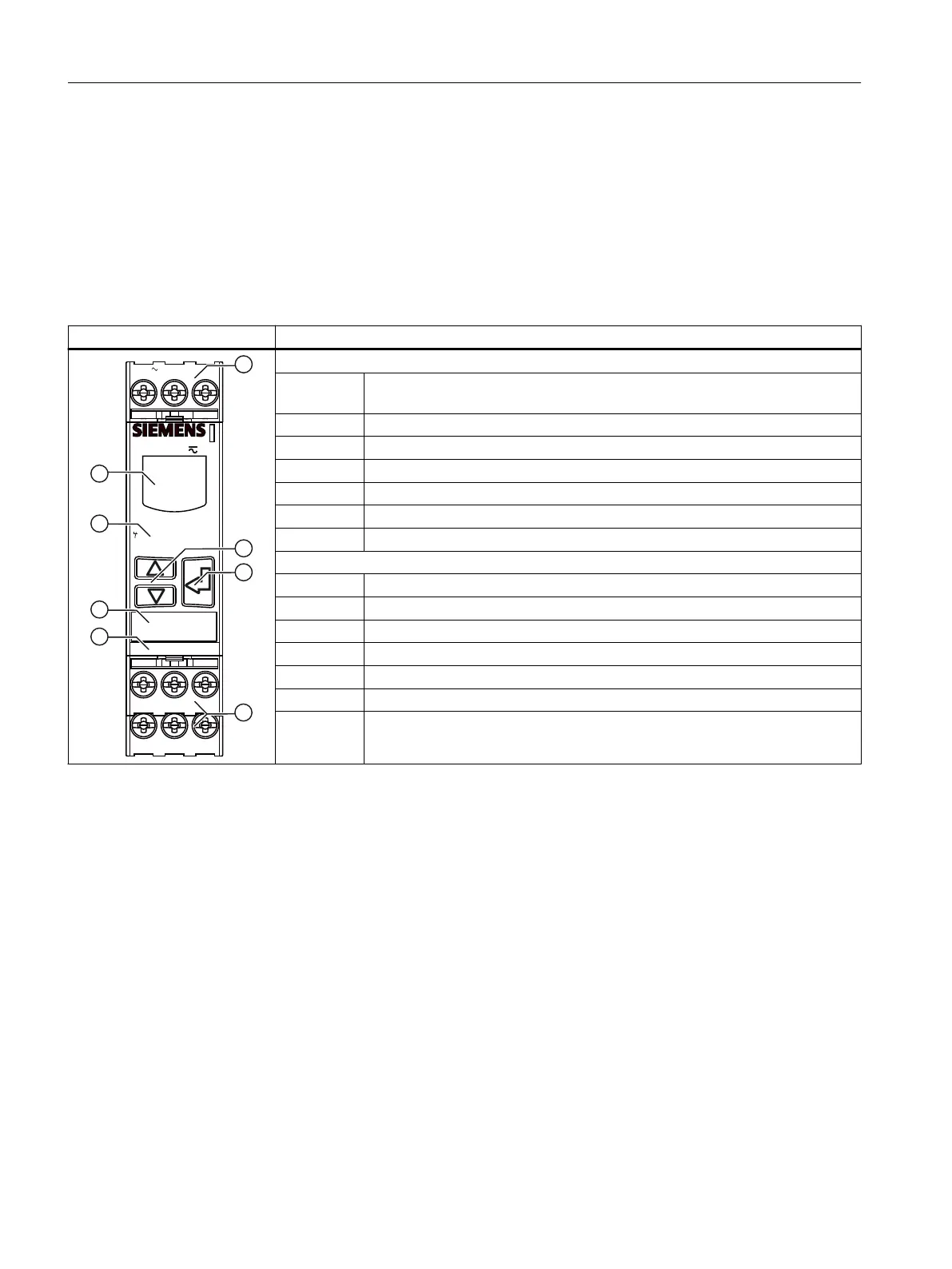

Front view / terminal labeling 3UG4631 / 3UG4632
Front view Description
1 10-600V
14
1112
A2-
M
IN
A1+
3UG4632-1AW30
SIRIUS
24-240V
Del -> Umin/Umax delay
Mem ? -> Memory?
NC -> Circuit principle
Position digits
① Terminal block (removable):
Connection is possible using screw terminals or spring-loaded terminals.
② Arrow keys for menu navigation
③ SET key for menu navigation
④ Device article number
⑤ Label
⑥ Legend for menu
⑦ Display for parameterization, actual-value indication, and diagnostics
Terminal labels
A1+ Rated control supply voltage ∼ / +
A2- Rated control supply voltage ∼ / -
M (GND) Measuring signal input -
IN Measuring signal input +
12 Output relay K1 CO contact NC contact
11 Output relay K1 CO contact root
14 Output relay K1 CO contact NO contact
You can nd additional information on the connection terminals and the permissible conductor
cross-sections in the Chapter "Connection methods (Page 23)".
You can nd information on connecting in the Chapter "Circuit diagrams (Page 214)".
10.2.2 Functions
General functionality
Depending on the setting, the 3UG4631 / 3UG4632 voltage monitoring relays are powered with
a rated control supply voltage of 24 V AC/DC or 24 to 240 AC/DC and monitor an AC voltage or
DC voltage at terminals IN and M of the device for overshoot (U▲) or undershoot (U▼) or
in range monitoring (U▲ and U▼).
The 3UG4631 / 32 voltage monitoring relays have a display and are parameterized with three
keys.
3UG463. voltage monitoring relay
10.2 3UG4631 / 3UG4632 voltage monitoring relay
SIRIUS 3UG4 / 3RR2 monitoring relay
204 Equipment Manual, 07/2021, NEB927043002000/RS-AD/005
