10.3 3UG4633 voltage monitoring relay
10.3.1 Operator controls and connection terminals

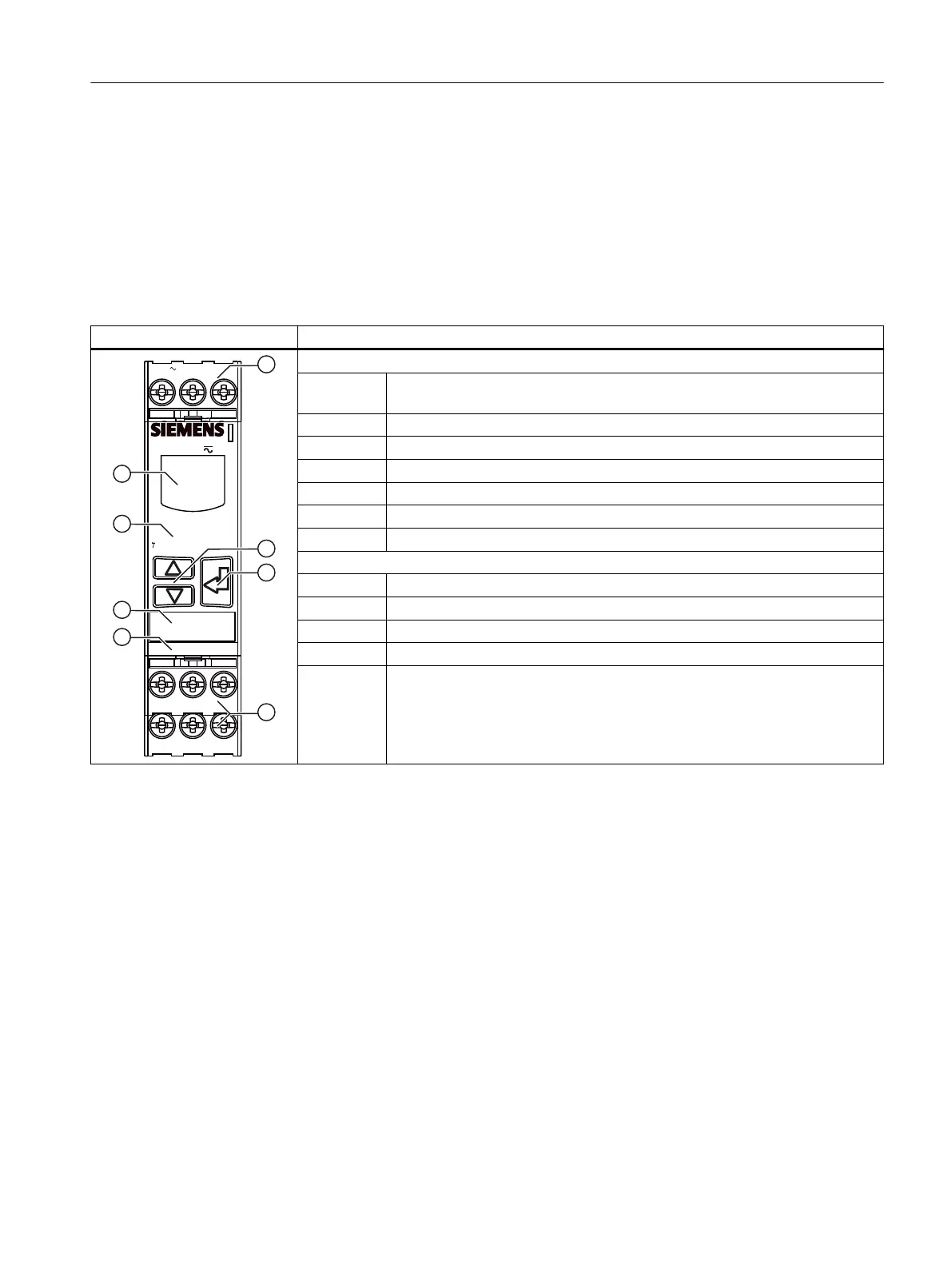

Front view / terminal assignment 3UG4633
Front view Description
1 17-275V
14
1112
A2-
A1+
3UG4633-1AL30
SIRIUS
12-275V
onDel -> Power on delay
Del -> Umin/Umax delay
Mem ? -> Memory?
NC -> Circuit principle
Position digits
① Terminal block (removable):
Connection is possible using screw terminals or spring-loaded terminals.
② Arrow keys for menu navigation
③ SET key for menu navigation
④ Device article number
⑤ Label
⑥ Legend for menu
⑦ Display for parameterization, actual-value indication, and diagnostics
Terminal labels
A1+ Rated control supply voltage ∼ / +
A2- Rated control supply voltage ∼ / -
12 Output relay K1 CO contact NC contact
11 Output relay K1 CO contact root
14 Output relay K1 CO contact NO contact
You can nd additional information on the connection terminals and the permissible conductor
cross-sections in the Chapter "Connection methods (Page 23)".
You can nd information on connecting in the Chapter "Circuit diagrams (Page 214)".
10.3.2 Functions
General functionality
Depending on the setting, the 3UG4633 voltage monitoring relays are self-powered
(measuring voltage = rated control supply voltage) and monitor an AC voltage or DC voltage at
terminals A1 and A2 of the device for overshoot (U▲) or undershoot (U▼) or in range
monitoring (U▲ and U▼).
The voltage monitoring relays are powered with a rated control supply voltage of 17 to 275 V AC/
DC through terminals A1/A2.
