2-2
DSR-2000A/2000AP
DIGITAL
VIDEOCASSETTE
RECORDER DSR-2000
VIDEO IN
REMOTE
9PIN
I.LINK
CH-1,1/2
CH-2,3/4
POWER
MIXING
SDTI/I.LINK
INPUT SELECT
30 (handle hight)
115
98.5
16.5
87.5
191
174.5
372 27.5
19.7 495.5
602.3
4.8
52.5
400
ø20
424
427
577 (maximum traveling distance)
With the unit mounted in the rack
Set’s height at
rack mounting.
174.5
(
)
(height as slide rail center) Unit : mm

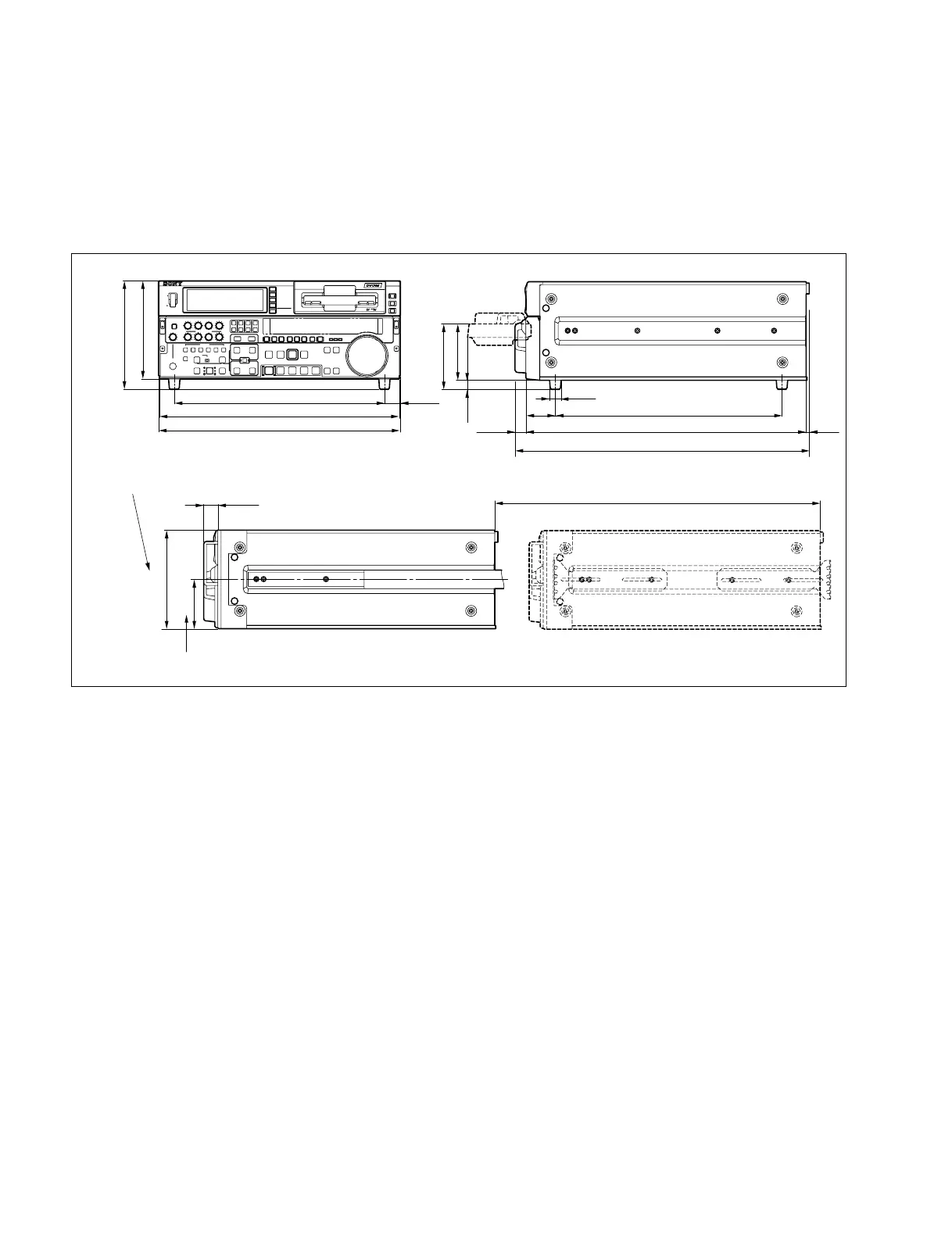

2-4. Installation Space
. The rear side must be at least 40 cm away from the walls for ventilation and maintenance.
. When the unit is operated on a desk or similar condition, assure that the clearance above the unit is at least 40 cm to
provide accessibility to the printed circuit boards and other mechanical parts. Note that it is not necessary to provide the
space when the unit is mounted in a rack since the printed circuit boards can be repaired after it is pulled out.
2-5. Supplied Accessories
. AC power cord : 1
. Operating instructions : 1
2-6. Optional Accessories
. HD up-converter board : DSBK-2020
. TBC remote control unit : UVR-60/60P
. Rack mount Kit : RMM-130
(The unit can be mounted in a 19-inch standard rack)
. Remote control cable : RCC-5G/10G/30G
. Cleaning cassette tape : DV12CL (Standard size), DVM12CL (Mini size)
. Digital video cassette (Mini size) : PDVM-12ME/22ME/32ME/40ME
. Digital video cassette (Standard size) : PDV-64ME/94ME/124ME/184ME
