3-7
DSR-2000A/2000AP

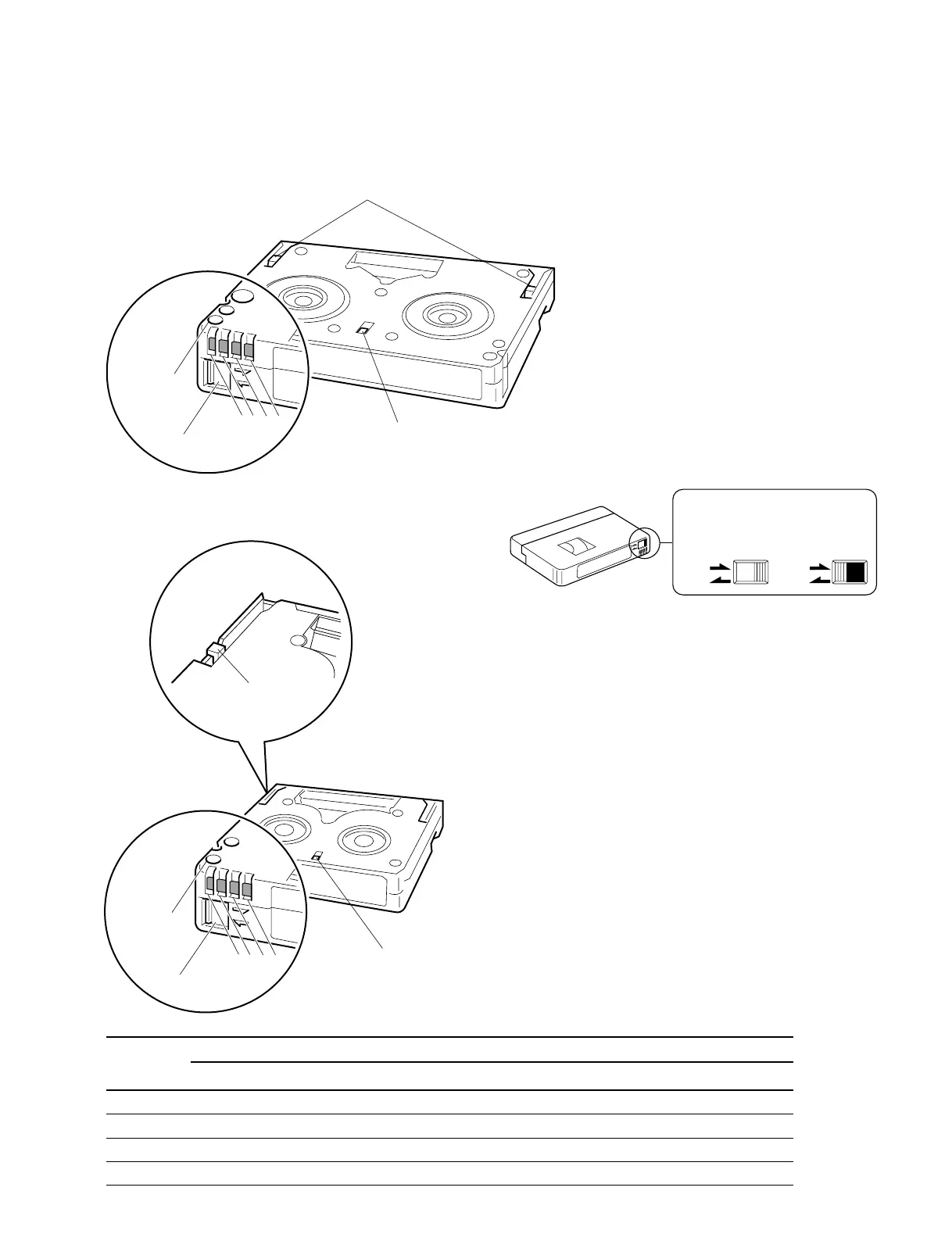

3-2. Functions of Record Proof Hole and Record Proof Plug of Cassette
Standard cassette, M cassette
Hole and plug for record proof
Mini cassette
Pin No. Function
Equipped with built-in memory Not equipped with built-in memory
1 +DC Detecting tape thickness
2 DATA Detecting tape type (Example: ME/MP)
3 CLOCK Detecting tape application (Example: consumer/professional)
4 GND _
Record proof
hole
4
32
1
Record proof plug
Cassette cover release claw
Reel rotation stopper
Record enable Record protect
REC
SAVE
REC
SAVE
. This plug controls the record proof
switch according to open or close
position.
4
32
1
Record proof
hole
Record proof plug
Reel rotation stopper
Cassette cover release claw
To Next Page
