10-17
DSR-2000A/2000AP
Conditions for adjustment
WFM or Oscilloscope
.
MENU ITEM 713-2, OUTPUT LEVEL ; 7.5 %
. VIDEO IN select ; S VIDEO
. EE mode
S VIDEO IN ; 75 % Color bars (for NTSC)
S VIDEO IN ; 100 % Color bars (for PAL)
Connection 2

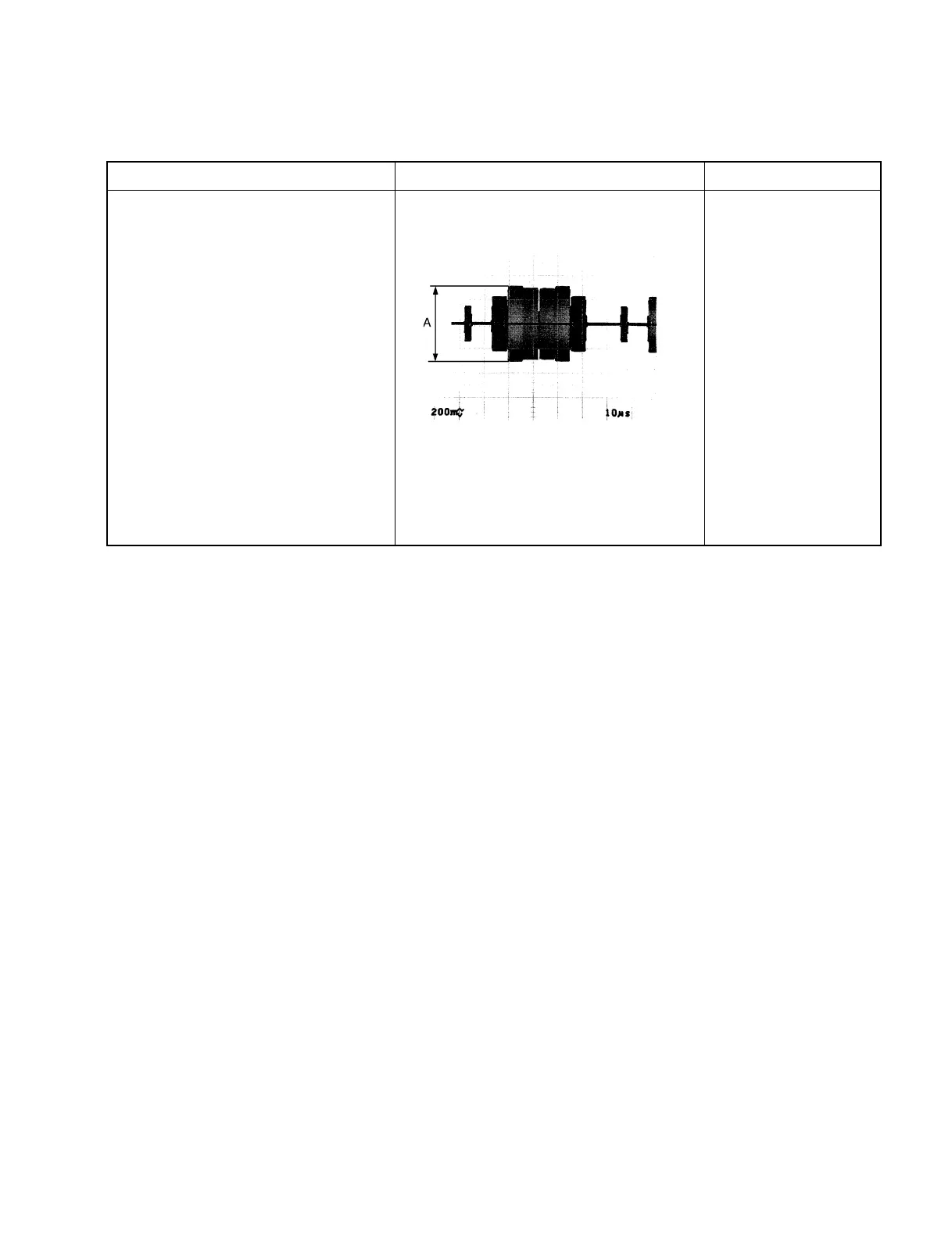

Specification
S VIDEO (C) OUT (75 Z terminated)
TRIG : REF. VIDEO
Spec.
[For NTSC]
A = 0.627 ±0.007 V p-p (87.7 ±1 IRE)
[For PAL]
A = 0.885 ±0.006 V p-p
10-3-19. REC S VIDEO Chroma Level Adjustment
Adjustment
1RV101/VPR-62A (P-5)
To Next Page
