Sony DSR-2000AP Service Manual

3-4
DSR-2000A/2000AP
1
2
![
!.
@=
0
@]
!'
@\
8
@/
!;
9
3
4
5
6
7
!=!-
!]
!\
!,
@-
@[

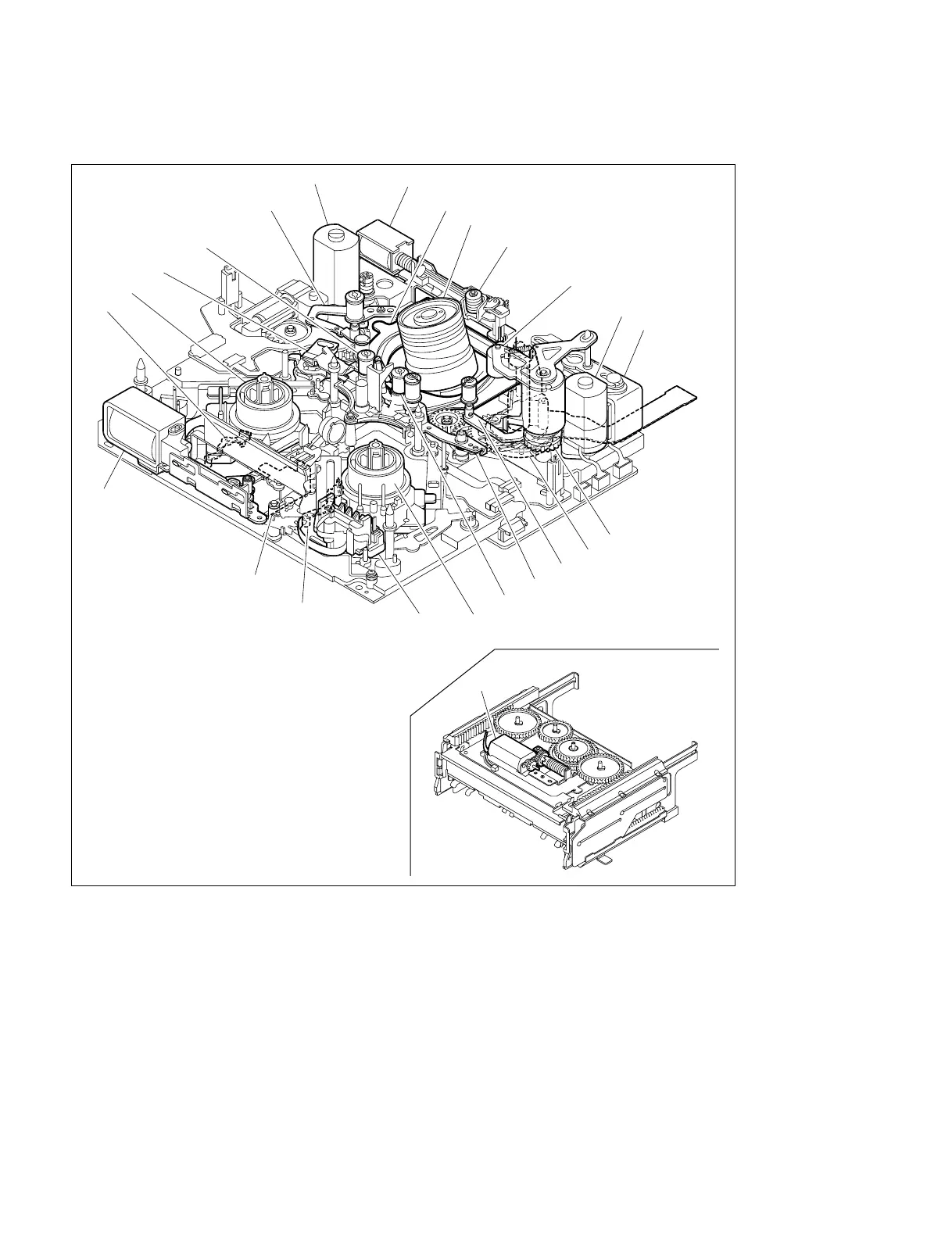

3-1-2. Location of Main Mechanical Parts
1 Head cleaning solenoid
2 Loading motor
3 TG1 arm assembly
4 Shuttle (left) assembly
5 S tension regulator assembly
6 S reel motor
7 S brake assembly
8 Brake solenoid
9 M stop solenoid assembly
!/ T brake assembly
!- MIC assembly
!= MIC holder assembly
![ T reel motor
!] Shuttle (right) assembly
!\ T drawer arm assembly
!; TG8 arm assembly
!' Capstan motor
!, Elevator cam
!. Pinch solenoid assembly
@/ Reel shift motor
@- Pinch roller
@= HC roller assembly
@[ Drum assembly
@] Rail assembly
@\ Cassette compartment motor assembly
