5-2. How to Operate Maintenance Menu
5-2-1. Location and Function of Switches

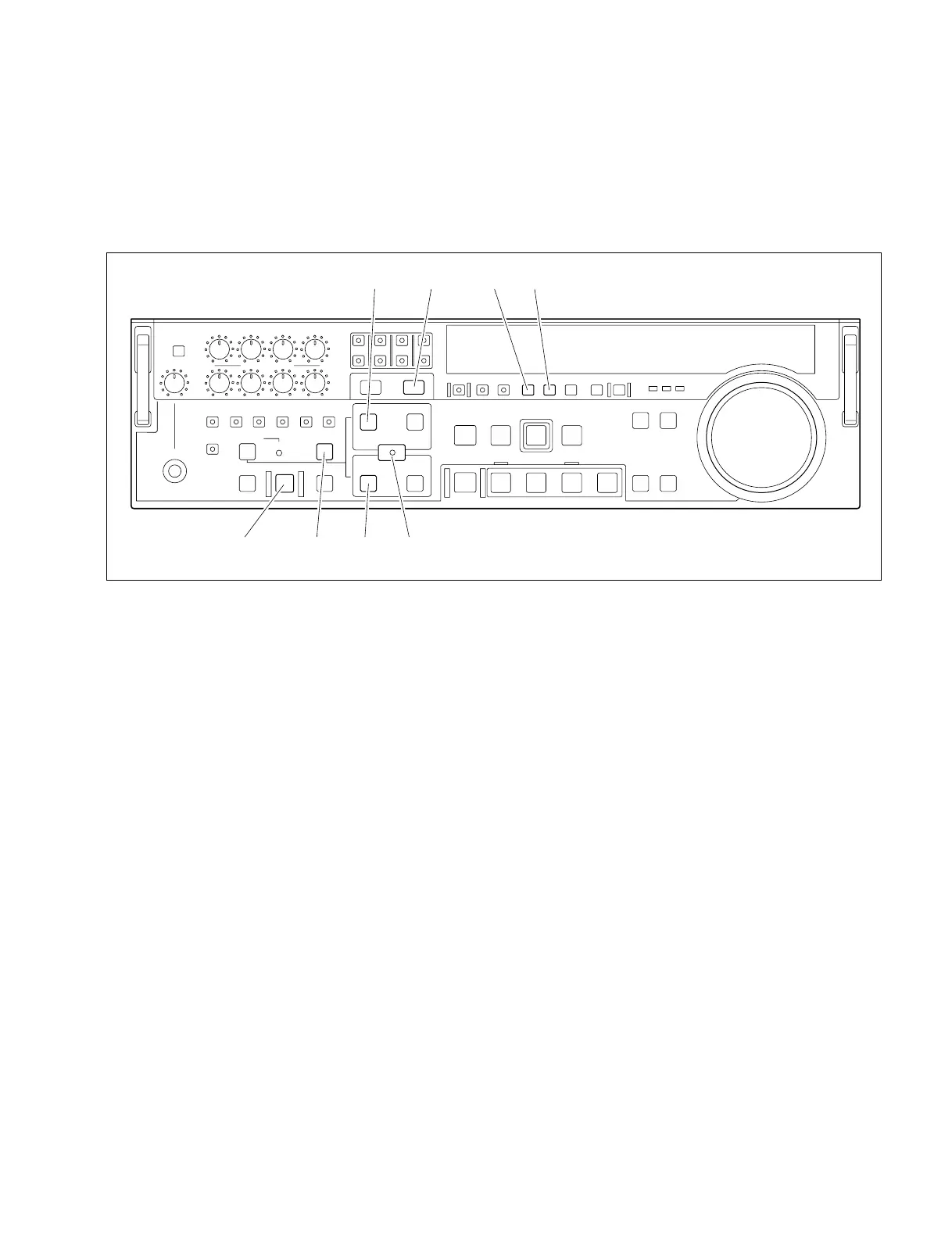

Use MENU, SET, ENTRY, AUTO EDIT, IN and OUT switches on the control panel shown below to perform the mainte-
nance menu.
The maintenance menu has a layered structure through which you move to select the desired item.
[AUDIO|IN] KEY : Use this key to move in the direction of ↑ within the same layer.
[IN] KEY : Use this key to move in the direction of ↓ within the same layer.
[DELETE] KEY : Use this key to move in the direction of ← to higher layers.
[ENTRY] KEY : Use this key to move in the direction of → to lower layers. (It is inoperative if there is no lower layer.)
To indicate depth of layer, the displayed menu items are indented on the video monitor and “>” is added to the top on the
time counter.
5-2-2. How to Enter the Maintenance Menu
1. While pressing the [DELETE] (←) key and [TRIM+] key , press the [MENU] key. The DSR-2000A/2000AP enters
the maintenance menu. The maintenance menu appears on the video monitor.
2. Select the desired item using the [AUDIO|IN] (↑) key and the [IN] (↓) key. The cursor shown with a white back-
ground moves to the selected item.
3. After the desired item is selected, press the [ENTRY] (→) key to designate the selected item.
5-2-3. How to Exit the Maintenance Menu
Press the [MENU] key to exit the maintenance menu.
FULL/FINE
PHONE LEVEL
CH-1
REC
PB
ASSEMBLE
HEADPHONES
PREVIEW REVIEW
AUTO
DMC EDIT
DELETE
MEMORY
VIDEO
INSERT
CH-1 CH-2 CH-3 CH-4 TC
CH-2 CH-3 CH-4
CH-4CH-3CH-2CH-1
L
R
TRIM
PULL FOR VARIABLE
IN
OUT
IN OUT
AUDIO
REC
STANDBY
EJECT REW PLAY F FWD STOP
SEARCH
VARIABLE
PREROLL
EDIT
PLAYER RECORDER
ENTRY SHIFT
LIST MARK
PREREAD PB/EE PB MENU SET HOLD
COUNTER SEL
RESET
CHANNEL
CONDITION
-+
MONITOR SELECT
METER
EDIT
SETMENU
ENTRYDELETEAUTO EDIT IN
AUDIO IN TRIM+
